Installing Spare-Wheel Well With Cross Member And Side Floor Sections

Information

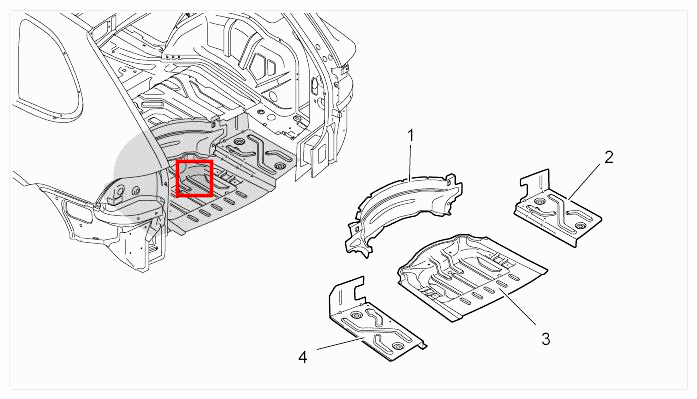

The lock carrier and outer end plate must be fitted in order to fit the spare-wheel well with cross member and side floor sections.

1. 1.1. Install lock carrier and end plate first.
2. 1.2. Fix spare-wheel well with cross member and side floor sections in place with tensioning clamps.

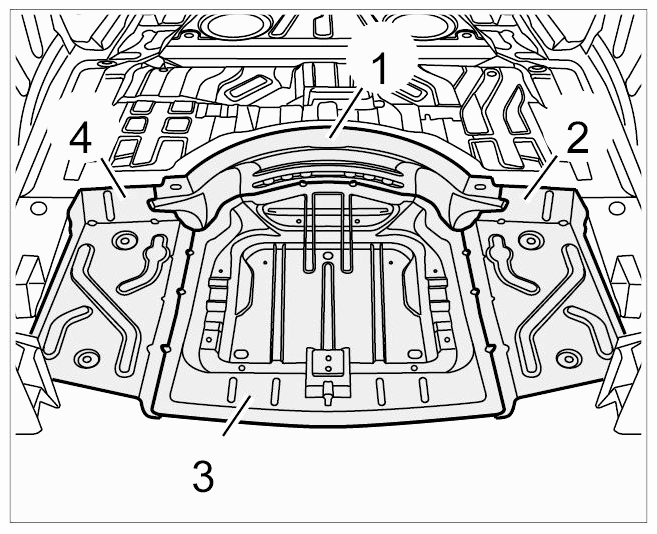

   Fig 2: Fitting Cross Member, Side Floor Sections And Spare-Wheel Well

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. Cross member
   2. Floor section, right
   3. Spare-wheel well
   4. Floor section, left

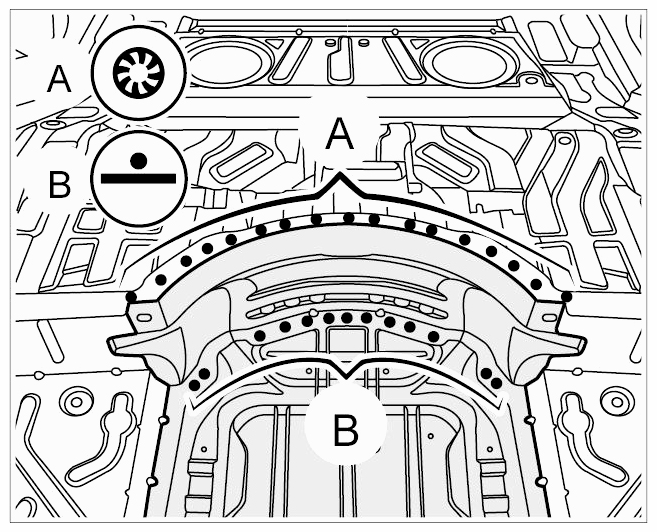

1. 2.1. Plug-weld the cross member in area -A-  using inert gas.
   Fig 3: Identifying Welded Joints On Cross Member And Spare-Wheel Well

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Resistance spot-weld the cross member and spare-wheel well in area -B-  .

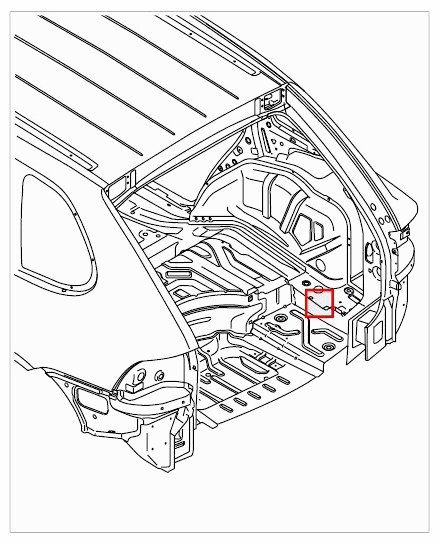

   Fig 4: Overview Of Side Floor Section - Outside

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

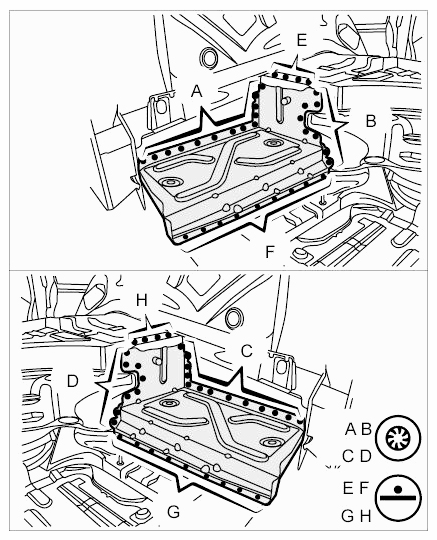

1. 3.1. Plug-weld the side floor sections in areas -A, B, C and D-  using inert gas.
   Fig 5: Identifying Welded Joints On Side Floor Sections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Resistance spot-weld the side floor sections in areas -E, F, G and H-  .

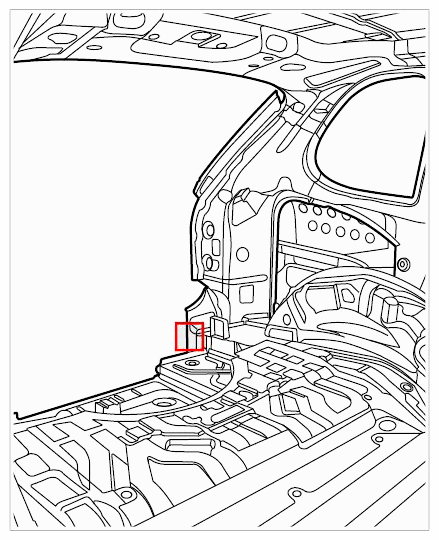

   Fig 6: Overview Of Side Floor Section - Inside

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

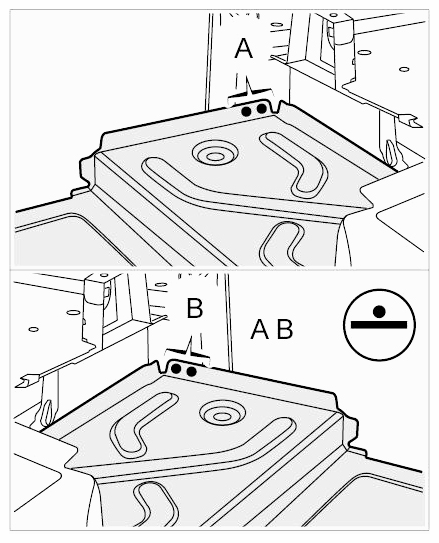

1. 4.1. Resistance spot-weld the side floor sections at the back in areas -A and B-  .
   Fig 7: Identifying Welded Joints On Side Floor Sections At Back

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
