Removing The Cover Under The Instrument Panel On The Passenger's Side

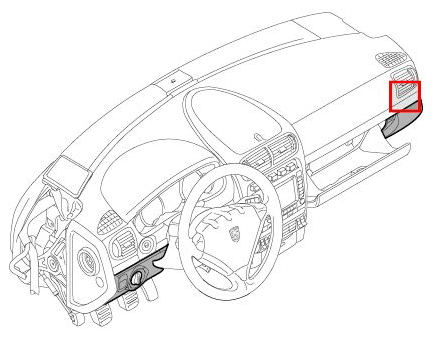

Fig 1: Identifying Cover Under Instrument Panel On Passenger's Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove dashboard moulding on passenger's side. → Removing Trim Strips For Dashboard On The Driver's Side
Remove cover under dashboard on the passenger's side. → Removing Cover Under Dashboard
Remove ignition key.
Loosen glove compartment.
1. 4.1. Undo fastening screws -2- .
2. 4.2. Open glove compartment -1- , unscrew the fastening screw -4- and remove rubber buffer -3- .

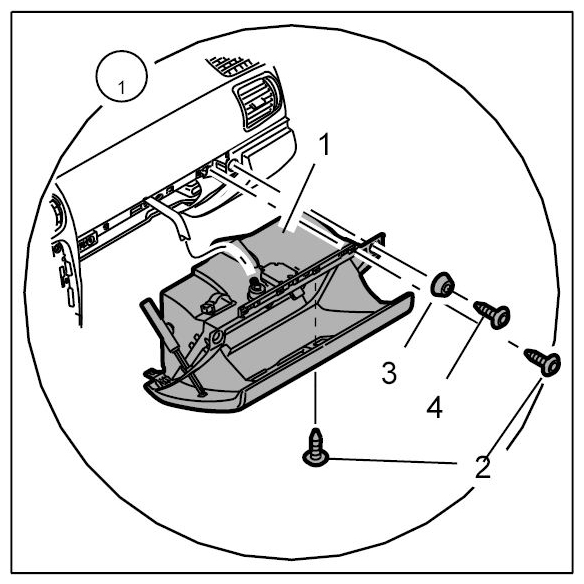

  Fig 2: Identifying Fastening Screws, Glove Compartment, Fastening Screw And Rubber Buffer
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove fuse box cover.
1. 5.1. Unclip fuse box cover -5- using a plastic wedge on the retaining clips -6- and swivel it outwards (-arrow A- ).
2. 5.2. Remove the fuse box cover -A- to the rear (-arrow B- ).

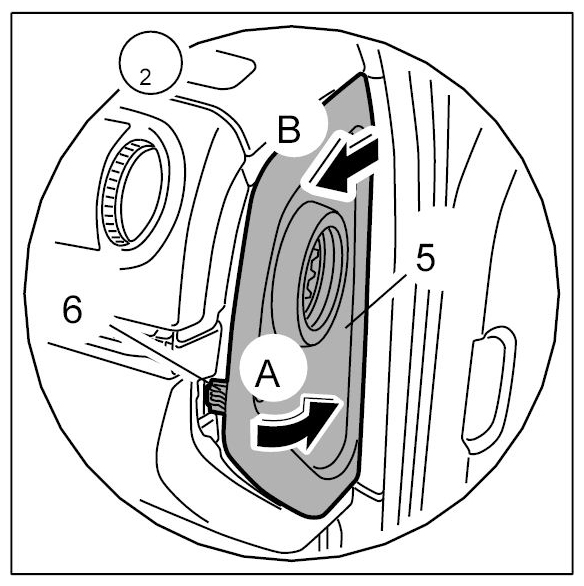

  Fig 3: Removing Fuse Box Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove trim under dashboard at passenger's side.
1. 6.1. Unscrew the fastening screws -8- and swivel the trim panel under the dashboard on the passenger's side -7- downwards (-arrow C- ). Pull out the trim panel under the dashboard on the passenger's side -7- over the guide -9- (-arrow D- ).

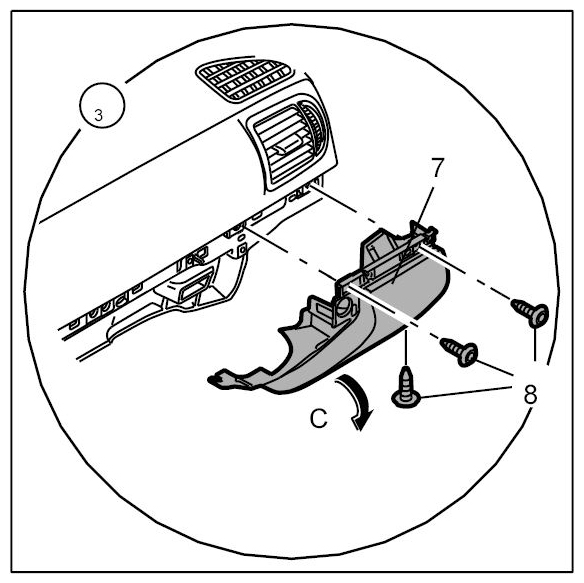

  Fig 4: Pulling Out Trim Panel Under Dashboard On Passenger's Side (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

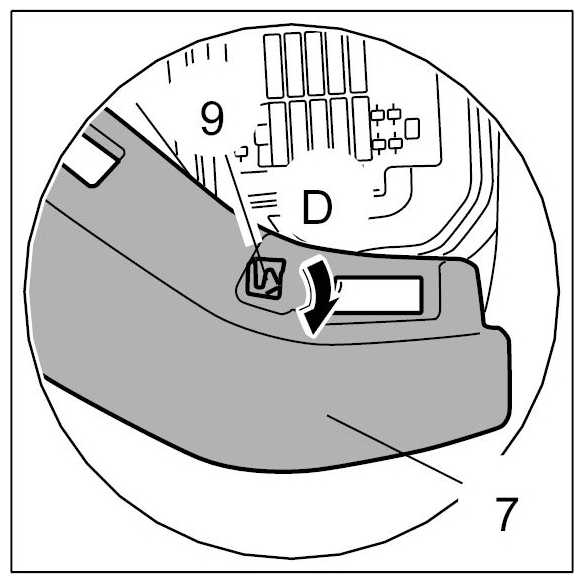

  Fig 5: Pulling Out Trim Panel Under Dashboard On Passenger's Side (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect the plug connection switch for the passenger's airbag.
1. 7.1. Release the plug -10- at the locking mechanism -11- (-arrows E- ) and pull it off.

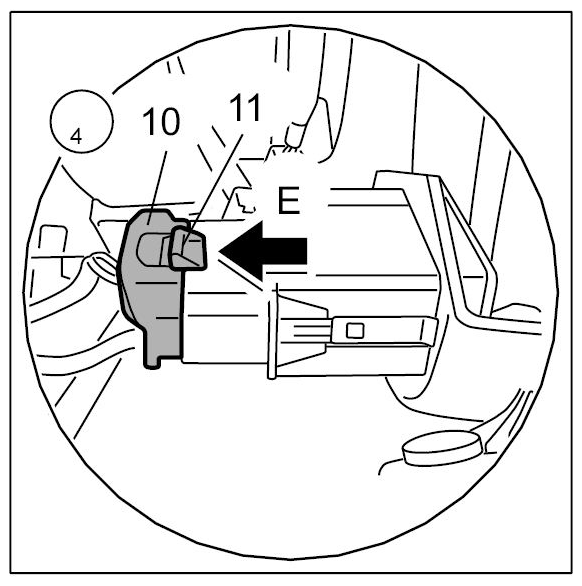

  Fig 6: Pressing Plug Connection Switch For Passenger's Airbag
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the trim under the dashboard on the passenger's side -7- .

Fig 7: Removing Trim Under Dashboard On Passenger's Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
