Removing Trim Strips For Dashboard On The Driver's Side

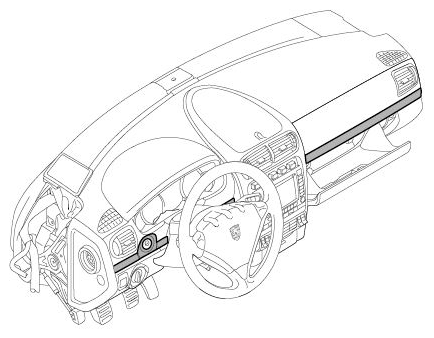

Fig 1: Identifying Trim Strips For Dashboard On Driver's Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Opening door
2. Remove ignition key
3. Insert a plastic wedge under the ignition lock collar -1-  , lever it out and remove it to the rear -Arrow A-  .

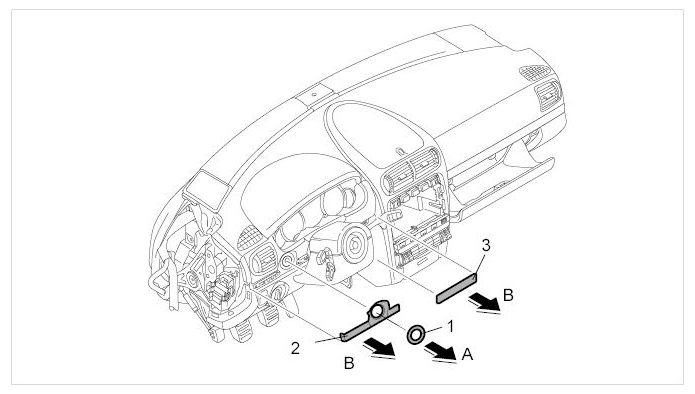

   Fig 2: Removing Opening Door, Ignition Key, Ignition Lock Collar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Insert a plastic wedge under the trim strip on the driver's side -2 and 3-  , carefully unclip it and take it off to the rear -arrow B-  .
   Fig 3: Removing Opening Door, Ignition Key, Ignition Lock Collar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
