Installing Main wiring harness - engine compartment on left

  1. Push line through from passenger compartment to engine compartment -Arrow A-  until rubber sleeve is felt to engage in firewall -B-  .

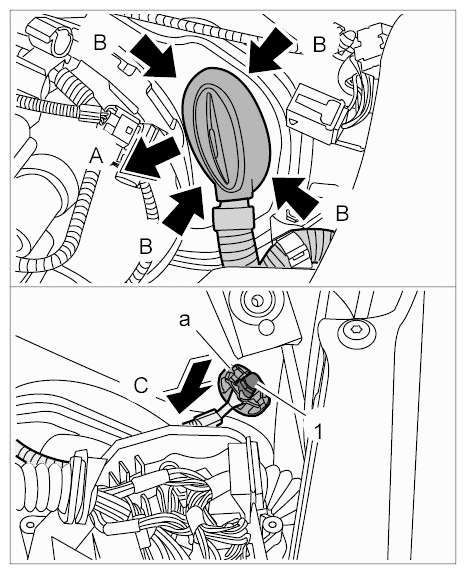

    Fig 1: Pushing Line Through From Passenger Compartment To Engine Compartment
    G09441338Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit ground strap (next to relay carrier in plenum panel E-box) together with twist lock -a-  on the threaded bolt -Arrow C-  and secure with fastening nut -1-  → Tightening torque: 6.5 ftlb.  .
  3. Place line (under relay carrier in plenum panel E-box) in installation position -Arrows A-  and close clips -Arrows B-  .

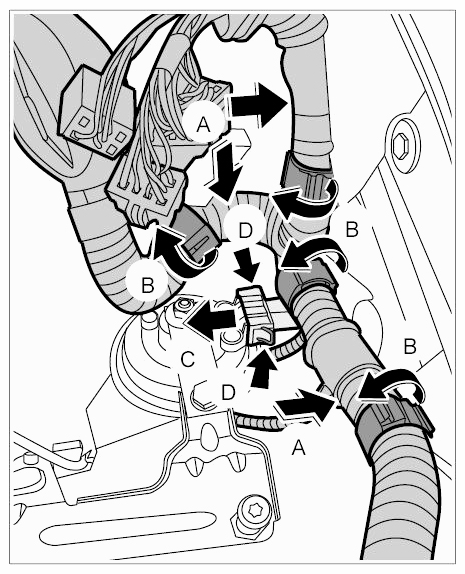

    Fig 2: Placing Line (Under Relay Carrier In Plenum Panel E-Box) In Installation Position
    G09441339Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Push connector onto alarm siren -Arrows C-  until locking tabs -D-  are felt to engage.
  5. Push connector onto left air flow sensor -Arrow A-  until locking tabs -B-  are felt to engage.

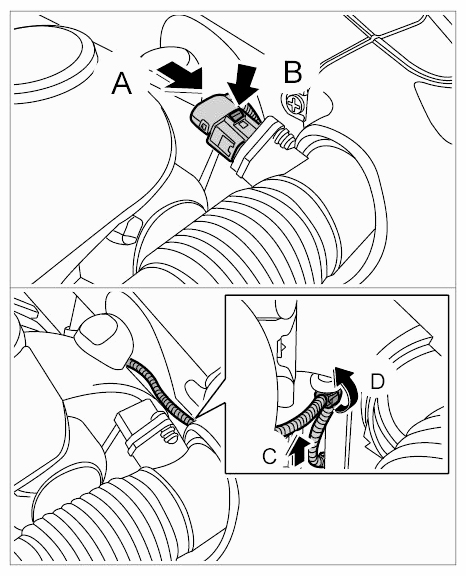

    Fig 3: Pushing Connector Onto Left Air Flow Sensor
    G09441340Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Connect line to threaded bolt (external power connection) -Arrow A-  and tighten with the fastening nut -3-  → Tightening torque: 6 ftlb.  .

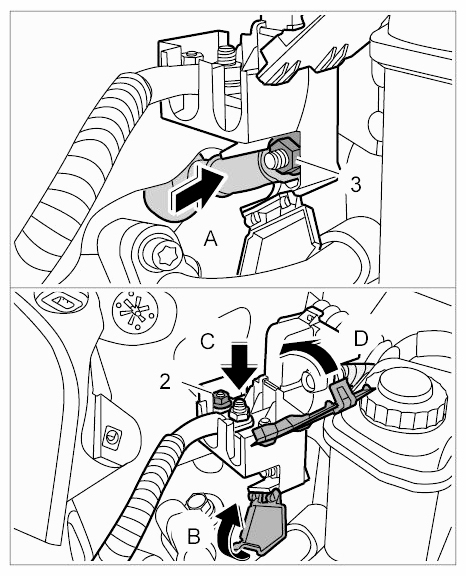

    Fig 4: Connecting Line To Threaded Bolt (External Power Connection)
    G09441341Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Close cap -Arrow B-  .
  8. Connect line to threaded bolt -Arrow C-  and tighten with the fastening nut -2-  → Tightening torque: 6 ftlb..
  9. Close cap -Arrow D-  .
  10. Place lines (upper side member) in installation position -Arrows A-  and close clips -Arrows B-  until locking tabs are felt to engage.

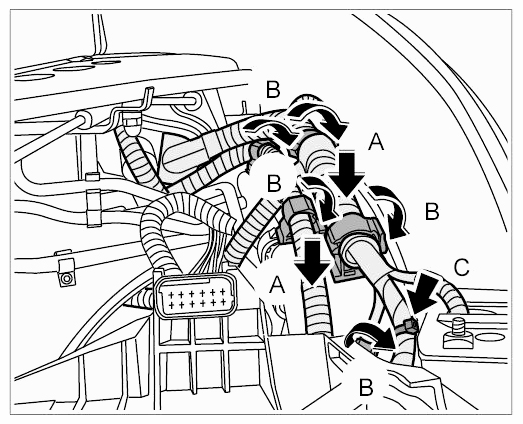

    Fig 5: Placing Lines (Upper Side Member) In Installation Position
    G09441342Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Fasten line with a new tie-wrap -C-  .
  12. Place line (under headlight mounting) in installation position -Arrows A-  and close clips -Arrows B-  until locking tabs are felt to engage.

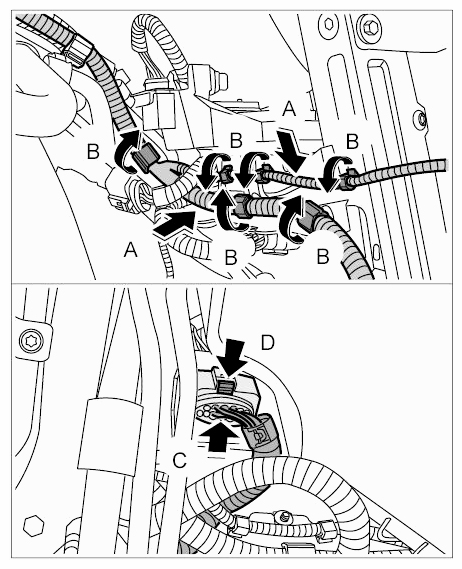

    Fig 6: Placing Line (Under Headlight Mounting) In Installation Position
    G09441343Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  13. Insert connector -Arrow C-  until locking tab -D-  is felt to engage.
  14. Insert the two connectors (radiator) -Arrows A-  until locking tabs -B-  are felt to engage.

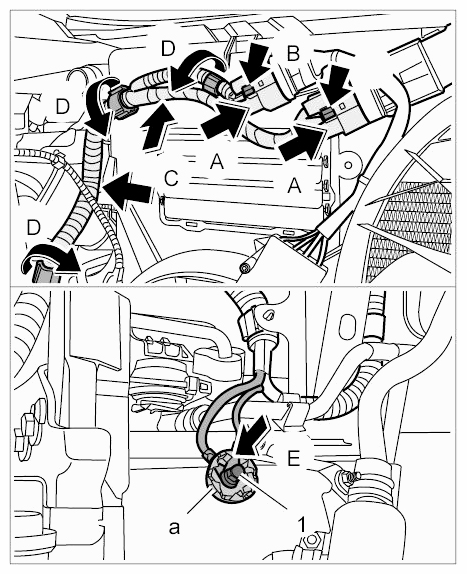

    Fig 7: Inserting Two Connectors (Radiator)
    G09441344Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  15. Place line in installation position -Arrows C-  and close clips -Arrows D-  until locking tabs are felt to engage.
  16. Fit ground straps together with twist lock -a-  on the threaded bolt (front side member) -Arrow E-  and secure with fastening nut -1-  → Tightening torque: 6.5 ftlb..
  17. Clip in the socket (front cross member) -Arrow A-  .

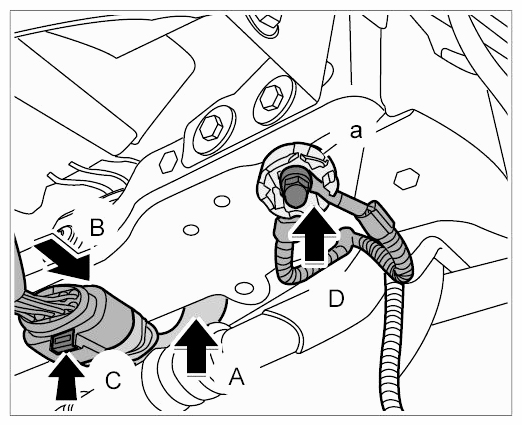

    Fig 8: Inserting Connector
    G09441345Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  18. Insert connector -Arrow B-  until locking tab -C-  is felt to engage.
  19. Fit ground straps together with twist lock -a-  on the threaded bolt -Arrow D-  and secure with fastening nut -1-  → Tightening torque: 6.5 ftlb.. →

    Only for vehicles with automatic headlight levelling system

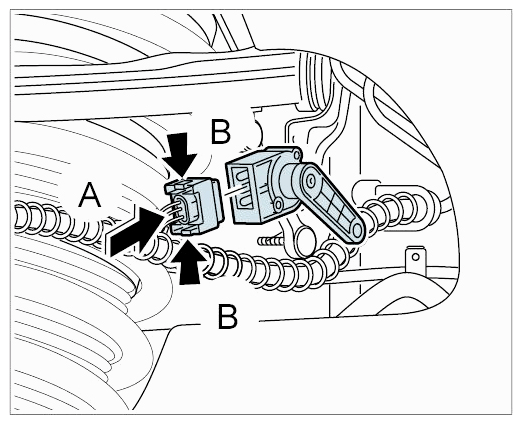

    Fig 9: Pushing Connector Onto Angle Sensor (Wheel Suspension)
    G09441346Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  20. Push connector onto angle sensor (wheel suspension) -Arrow A-  until locking tabs -B-  are felt to engage.
  21. Place line (wheel housing) in installation position -Arrow A-  and close clips -Arrow B-  until locking tabs are felt to engage.

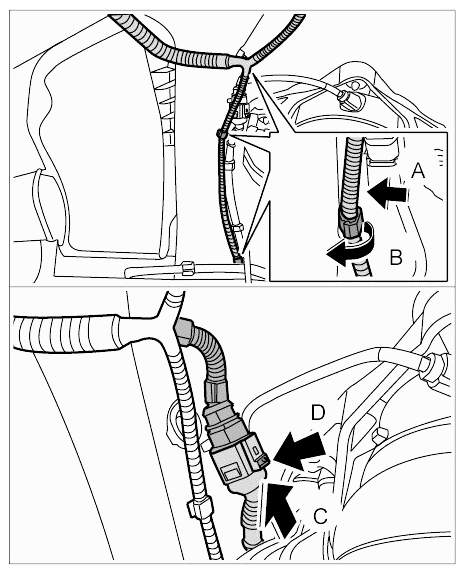

    Fig 10: Placing Line (Wheel Housing) In Installation Position
    G09441347Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  22. Insert connector -Arrow C-  until locking tab -D-  is felt to engage.
  23. Push on connector of lateral acceleration sensor (wheel housing) -Arrow A-  until locking tab -B-  is felt to engage.

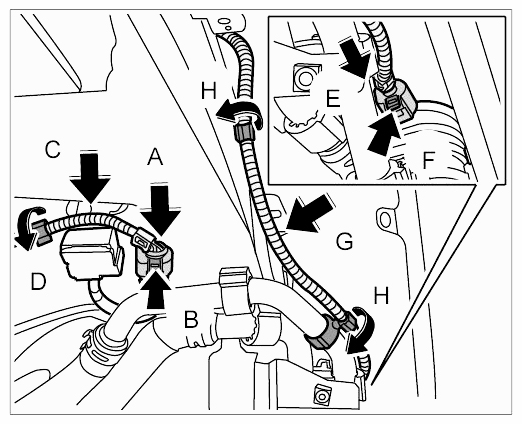

    Fig 11: Pushing On Connector Of Lateral Acceleration Sensor (Wheel Housing)
    G09441348Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  24. Place line in installation position -Arrow C-  and close clip -Arrow D-  until locking tab is felt to engage.

    Only in cars with additional heating

  25. Push connector onto circulating pump -Arrow E-  until locking tab -F-  is felt to engage.
  26. Place line to circulating pump in installation position -Arrow G-  and close clips -Arrows H-  until locking tabs are felt to engage.
  27. Push connector onto airbag sensor -Arrow A-  until the latch is felt to engage.

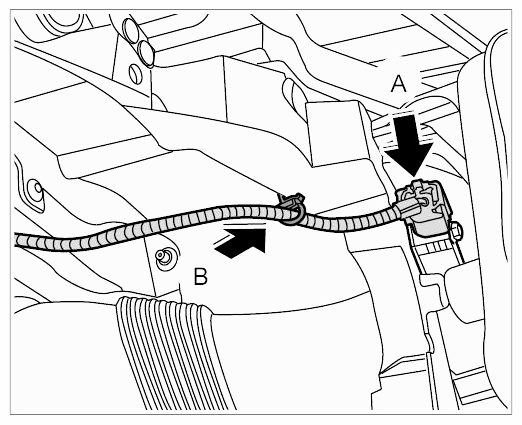

    Fig 12: Pushing Connector Onto Airbag Sensor
    G09441349Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  28. Push line and holder onto lock carrier -Arrow B-  .
  29. Insert bulb holder into the light (wheel housing) -Arrow A-  with a slight turn.

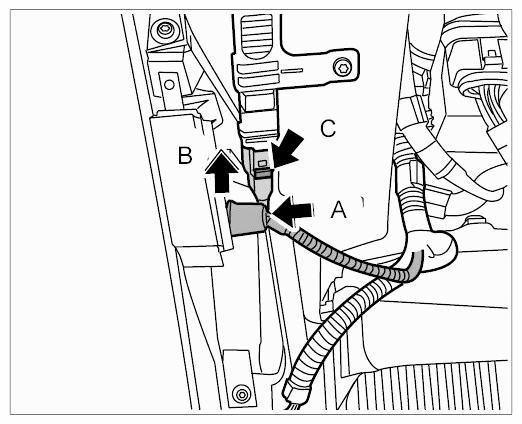

    Fig 13: Inserting Bulb Holder Into Light (Wheel Housing)
    G09441350Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Only for vehicles with tyre pressure monitoring system

  30. Push connector onto antenna for tyre pressure monitoring system -Arrow B-  until locking tab -C-  is felt to engage.

    Install front left main headlight → Installing Main Headlights

    Fit front apron → Installing front apron .

    Install left front wheel housing liner → Installing front wheel housing liner .
