Removing Cover For 1/3-Split Folding Rear Bench

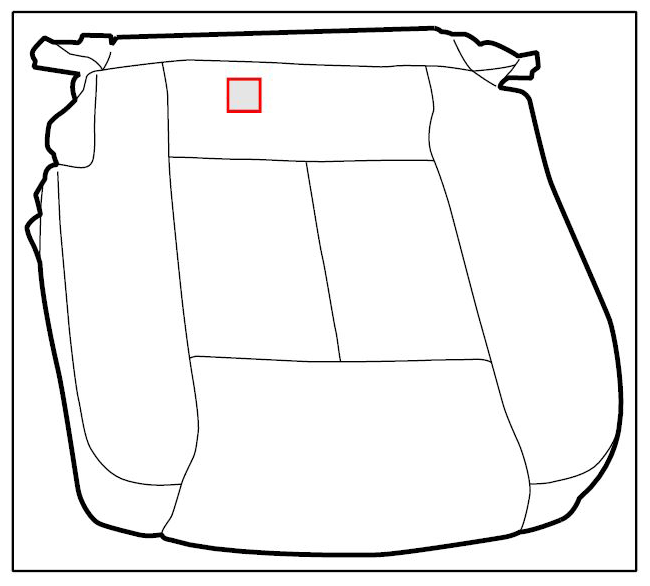

Fig 1: Identifying 1/3-Split Folding Rear Bench Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove padding for rear bench. → Removing Padding For 1/3 Split Folding Rear Seat

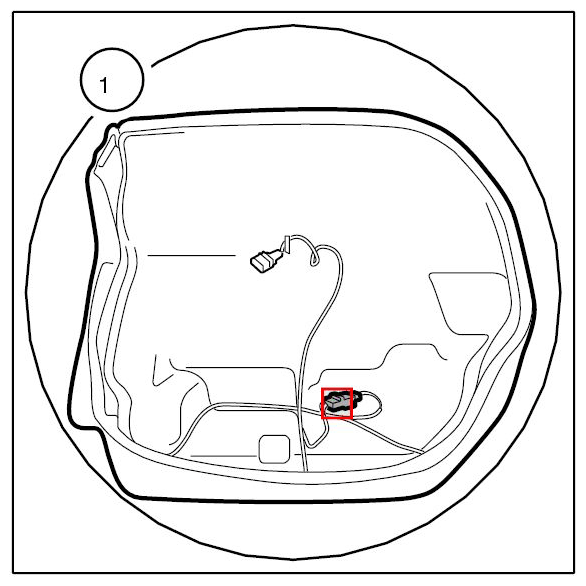

   Fig 2: Removing Cover For 1/3-Split Folding Rear Seat

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Disconnect plug connection (only for vehicles with seat heater).
   1. 2.1. Release plug connection -1- (-Arrow A-  ) and disconnect it (-Arrows B-  ).

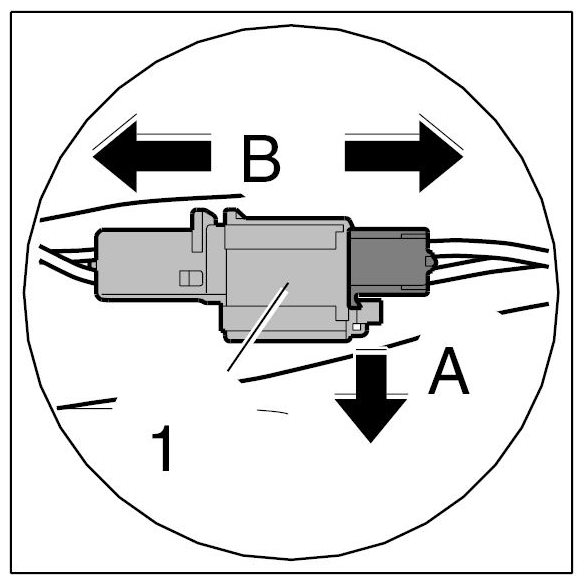

      Fig 3: Releasing 1/3-Split Folding Rear Seat Plug Connection

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove cover.
   1. 3.1. Cut open the cushion clips -2-  in the order shown -a to c-  at the designated areas -circle marks-  using side cutters and remove the cover -3-  from the padding -Arrow C-  . The remaining pieces of the cushion clips -2-  must be removed.

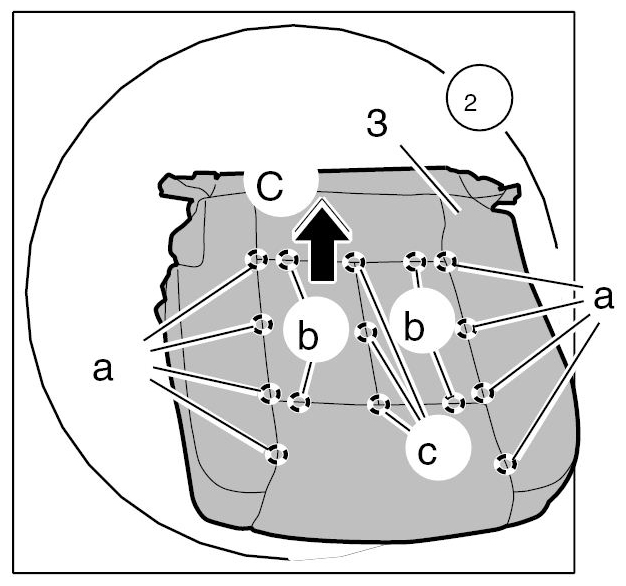

      Fig 4: Removing Cushion Clips

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

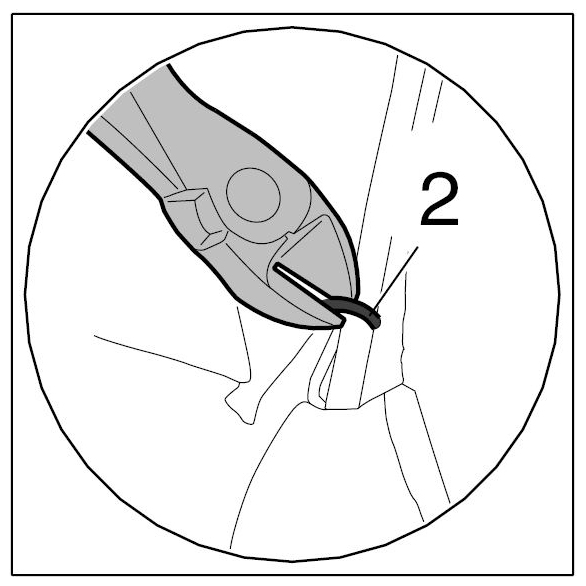

      Fig 5: Cutting Cushion Clips Using Side Cutters

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
