Removing Front Ashtray

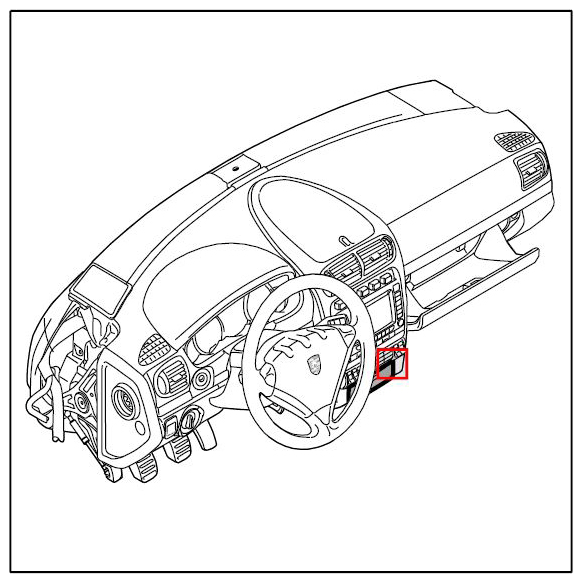

Fig 1: Identifying Front Ashtray

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove front air-conditioning system regulator. → Removing front air-conditioning system regulator .
Open the front ashtray and remove the holder.
Remove front ashtray.
1. 3.1. Put the gear-shift lever in the -D- position.
2. 3.2. Undo fastening screws -2- .
3. 3.3. Pull the front ashtray -1- to the rear -Arrow A- , until the plug becomes accessible.

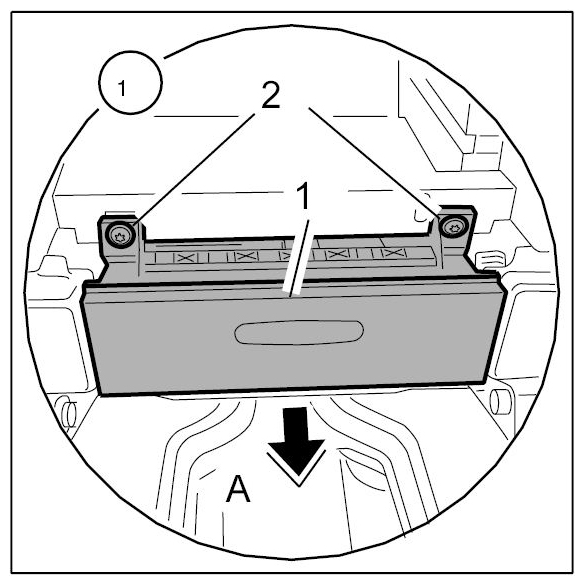

  Fig 2: Pulling Front Ashtray
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off plug.
1. 4.1. Release -3- and pull off -Arrow B- plug.

  Fig 3: Pulling Off Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull out ashtray -1- to the rear -arrow A- .

Fig 4: Pulling Out Ashtray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
