Removing Front Air-Conditioning System Regulator

Information

• Before removing the air-conditioning system regulator, the selector lever must be pulled back for vehicles with automatic transmission. Press the brake pedal for this purpose.
• Then switch off ignition and remove ignition key  .

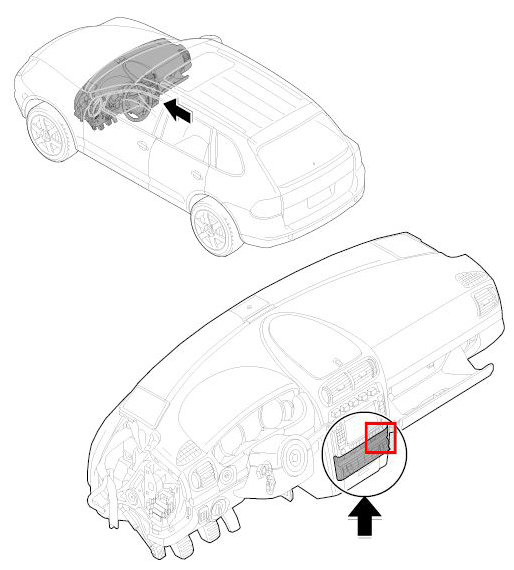

  Fig 1: Overview Of Front Air-Conditioning System Regulator

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Use a plastic spatula to carefully unclip the covering frame, starting from the bottom left and right.

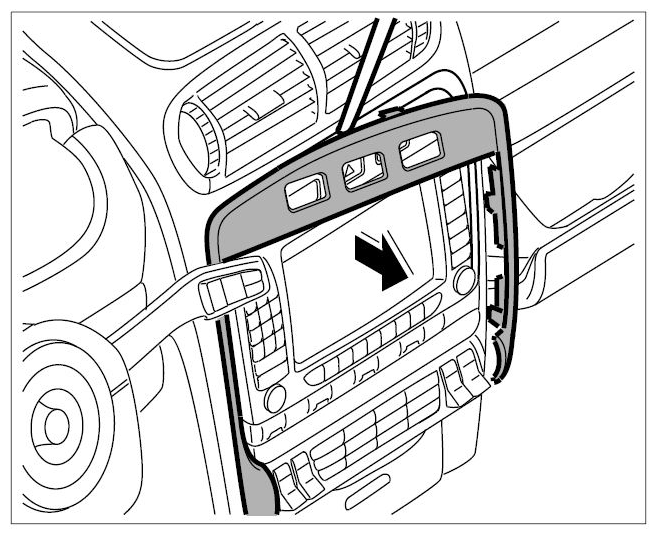

   Fig 2: Unclipping Covering Frame

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Use two screwdrivers to lever out the left and the right latch, then remove the control.

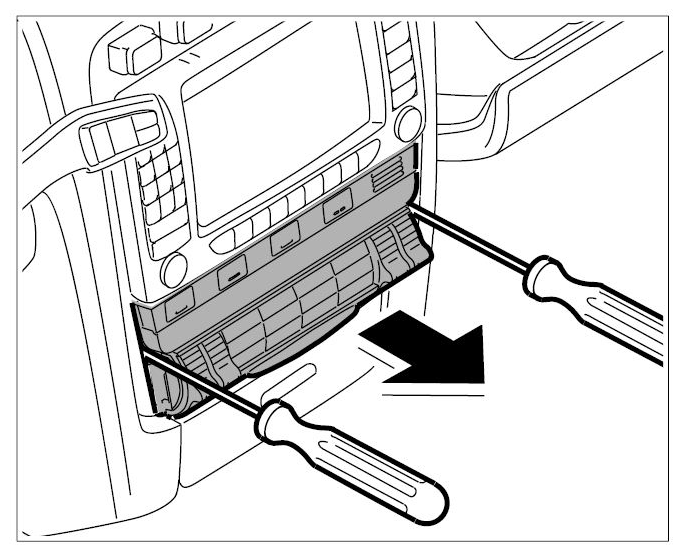

   Fig 3: Removing Control Using Tool

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Press in latch of electrical plugs and pull the plugs up and off.

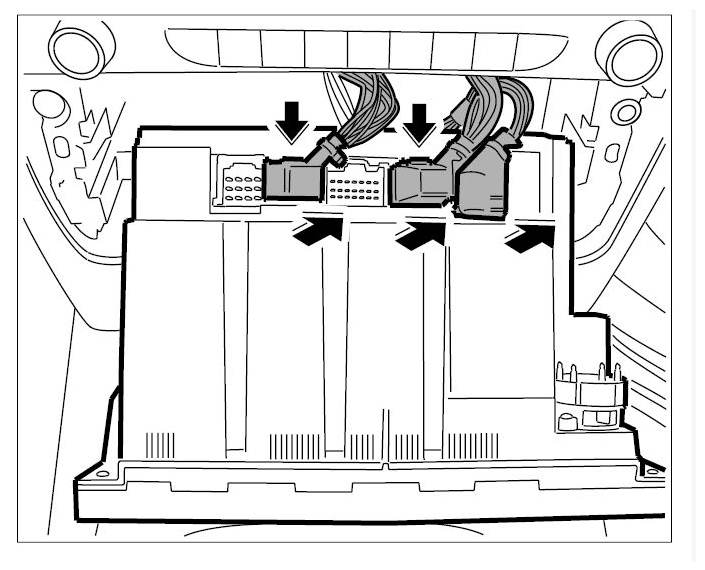

   Fig 4: Pulling Off Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
