Installing Front Power Windows

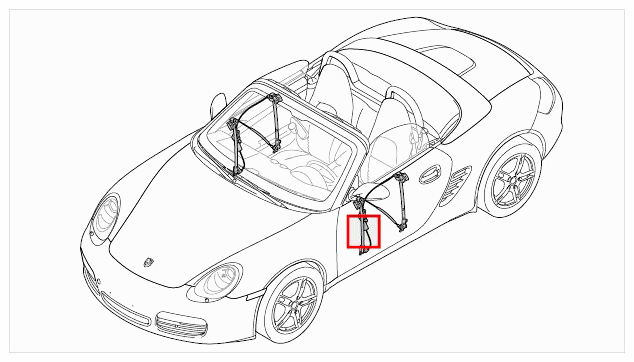

Fig 1: Identifying Front Power Windows Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

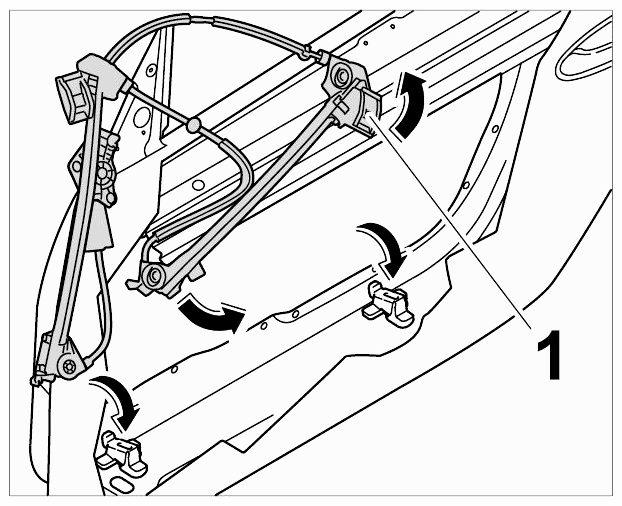

Fold power windows -1- together and insert through the door opening -arrows- .

Fig 2: Installing Power Windows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure that the window lifter rails are set parallel for all assembly work so as to prevent noises as a result of the window lifter rails crossing over.

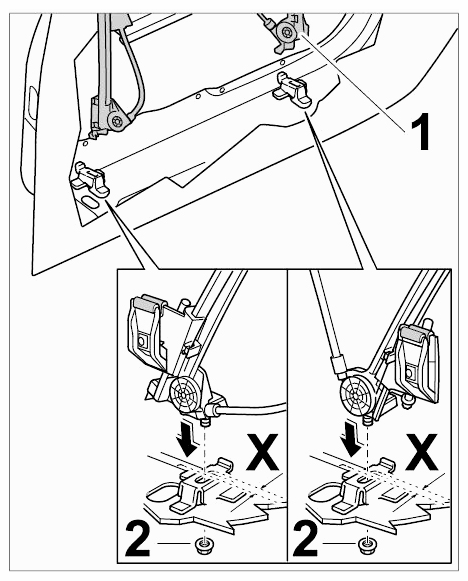

First position the lower fastening points of the power windows -1- to the dimension -X = 5 mm- and tighten with fastening nuts - 2- . Tightening torque → Final tightening: 9.7 Nm (7.5 ftlb.)

Fig 3: Securing Power Windows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

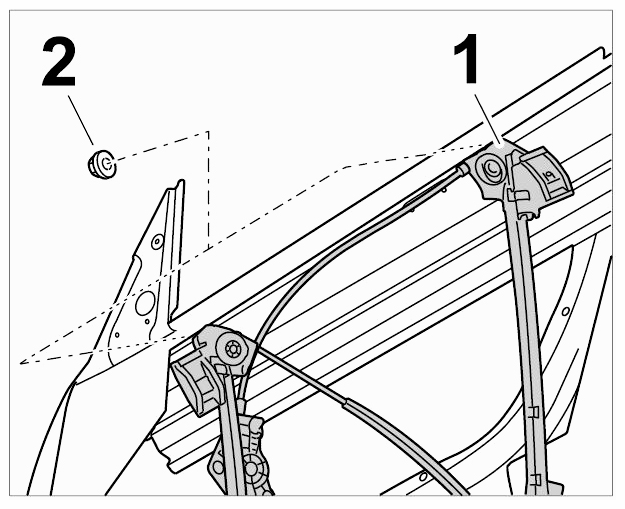

Then screw down the upper fastening points of the power windows -1- with the fastening nuts -2- . Tightening torque → Final tightening: 9.7 Nm (7.5 ftlb.)

Fig 4: Securing Power Windows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

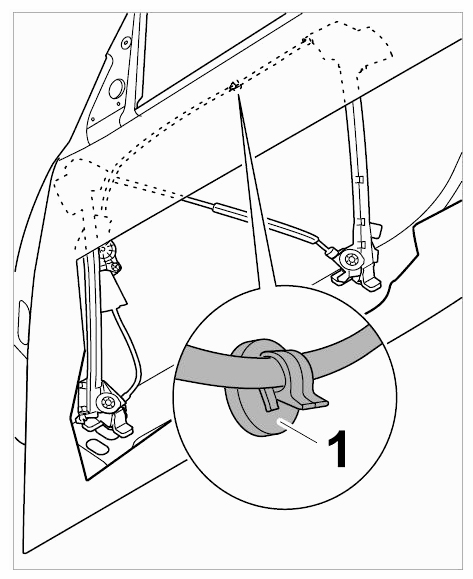

Clip in cable at retaining clip -1- .

Fig 5: Identifying Retaining Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

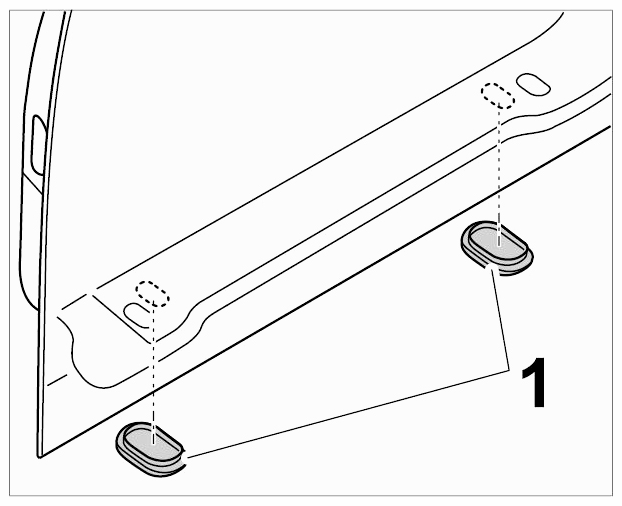

Fit rubber sleeves -1- .

Fig 6: Identifying Fit Rubber Sleeves
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
