Component And Assembly Overview (With And Without Pasm)

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

There are two different types of suspension: standard running gear and PASM chassis.

The Boxster S and Cayman S come with the PASM chassis as standard.

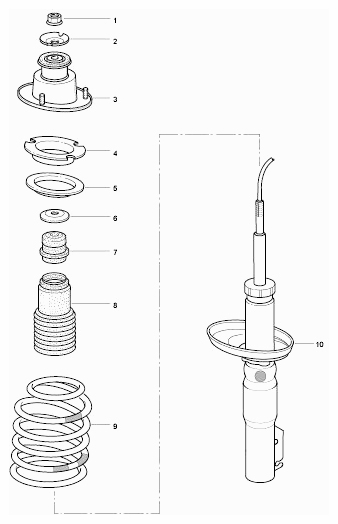

Fig 1: Exploded View Of Rear Spring Strut

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

No.	Designation	Qty.	Removal	Installation
-1-	Lock nut M14 x 1.5	1	Before loosening the lock nut -1- , tension the coil spring -9- using the spring clamp for spring struts Nr.121 until the piston rod is relieved. Use the relevant special tools (listed under the Disassembly section).	Use a new lock nut. Tightening torque: 80 Nm (59 ftlb.). Position the spring strut mount -3- with respect to the vibration damper -10- before tightening the lock nut. Then, (on PASM spring struts only) align the stop plate -2- with respect to the spring strut mount -3- . Description can be found in the Assembly section.
-2-	Stop plate (two versions). PASM version: With two grooves (two cut-outs), for countering when loosening and tightening lock nut -1- .	1		Fit dome upwards, towards lock nut. On PASM spring struts, align (position) the stop plate with respect to the spring strut mount -3- - described in the Assembly section.
-3-	Spring strut mount	1		Position with respect to the vibration damper (described in the Assembly section).
-4-	Support ring	1		Mount in correct position.
-5-	Spring plate (compensating plate)	1		Observe allocation according to the coil spring tolerance range.
-6-	Stop plate	1		Fit dome downwards.
-7-	Additional spring (rubber stop)	1		Replace if damaged.
-8-	Bellows	1		Replace if damaged. Fit to additional spring -7- .
-9-	Coil spring	1		Observe allocation as per Spare Parts Information. Replace coil springs only in pairs. Use spring plate (compensating plate) -5- according to the markings on the spring (see section describing ALLOCATION OF COIL SPRING/COMPENSATING PLATE ).
-10-	Vibration damper	1	Do not damage connecting cable (electric line) on the PASM version.	Observe allocation as per Spare Parts Information. The item number is shown on the damper tube.
