Installing Headlight Mount

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Information

The main headlights are fitted into the body at the factory.

A new adjustment may only be made in the case of accident repairs or replacement of the main headlights.

The headlight mount is secured to the body by 3 knurled nuts.

Push the mount into the body and screw down with three knurled nuts. → Tightening torque: 6 ftlb.+/- 1.5 ftlb.

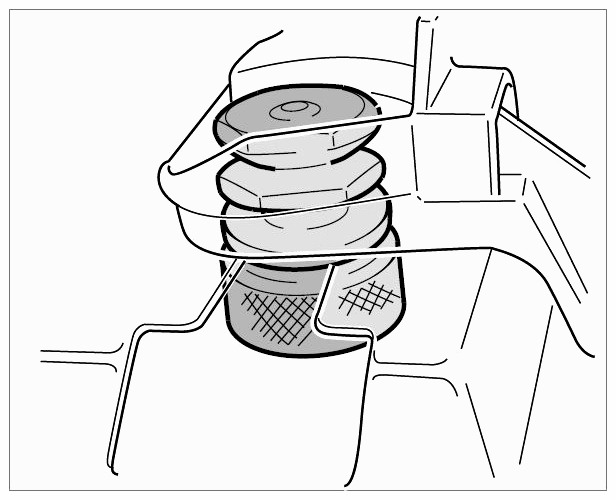

Fig 1: Identifying Adjusting Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check that the gaps match the specified gap dimensions → WM 5X00IN DIAGRAM - BODY GAP DIMENSIONS (ALL MODELS) . Adjust the headlight mount if necessary. → Testing And Adjusting Headlight Mount
