Testing And Adjusting Headlight Mount

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Information

The headlight cover lens should lie approximately 2 mm below the body edge.

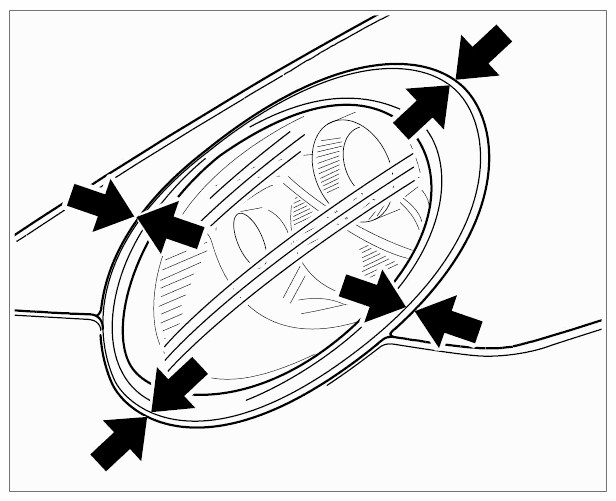

Fig 1: Identifying Headlight Cover Lens Edge

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Where the headlight housing joins the body, both should be in the same plane (flush).

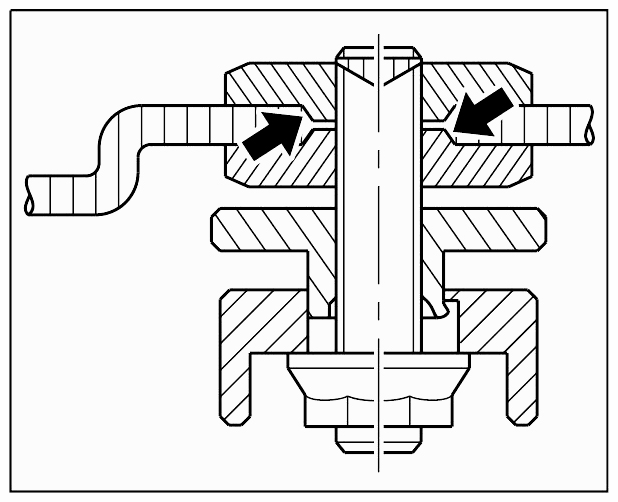

Fig 2: Locating Headlight Housing Joins Body Area (1 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

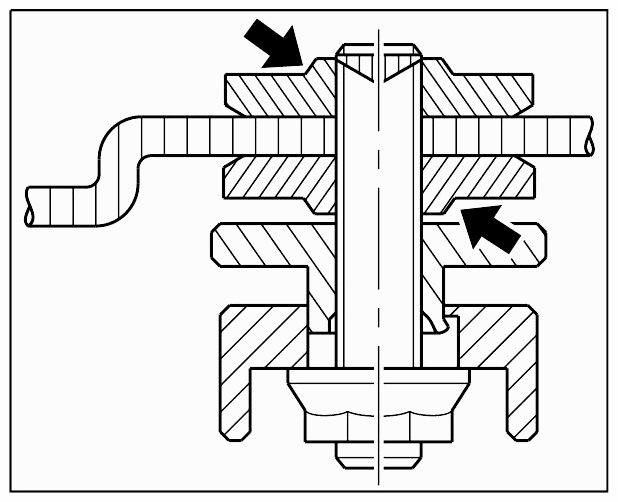

Fig 3: Locating Headlight Housing Joins Body Area (2 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjust fastening nuts to the same height as the old unit and tighten gently by hand.

Adjust fastening nuts to the same height as the old unit and tighten gently by hand.
Press headlight housing firmly into the body and lock.
After adjustment, tighten the fastening nuts. → Tightening torque: 6 ftlb.+/-1.5 ftlb.

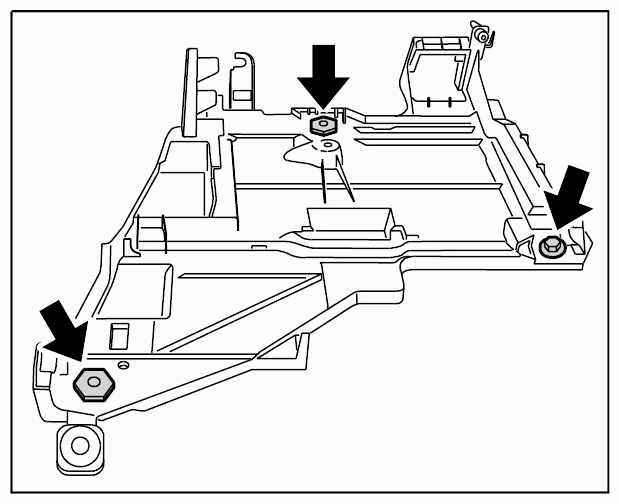

Fig 4: Locating Plate Mounting Bolts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
