WM 481019 Removing And Installing Steering Wheel (All Models): Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery. → 2706IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
  2. Remove steering wheel airbag unit → Removing Driver's Airbag Unit .

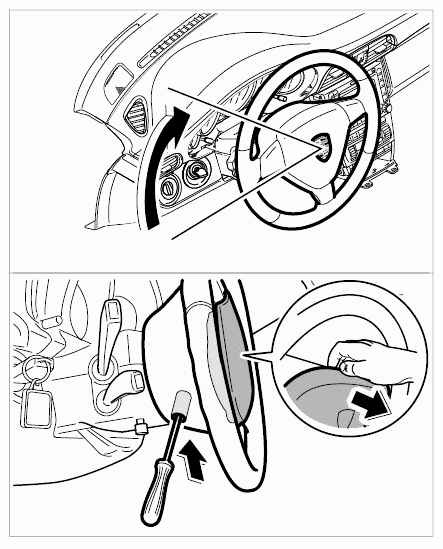

    Fig 1: Removing Driver's Airbag Unit
    G09587958Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Turn wheels to straight-ahead position. Before removing steering wheel, put a mark (e.g. color marking) on steering wheel and steering column (centering of airbag spiral spring).
  4. Remove steering wheel by releasing multiple-tooth screw.
