Installing cowl panel cover

Installation Location:

Fig 1: Installation location of cowl panel cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

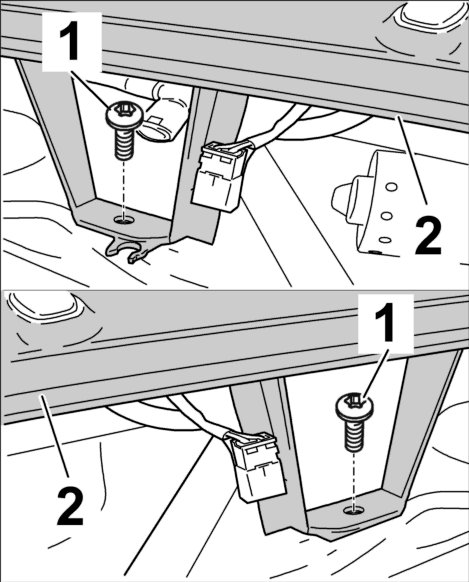

Fig 2: Installing cowl panel cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Two persons are needed to remove the cowl panel cover!

1. Insert cowl panel cover -2- in the plenum panel and align. See Fig 2.

2. Tighten fastening screws -1- . Tightening torque → Tightening torque: 1.5 ftlb. See Fig 2.
