Removing seat-belt buckle

Installation Location:

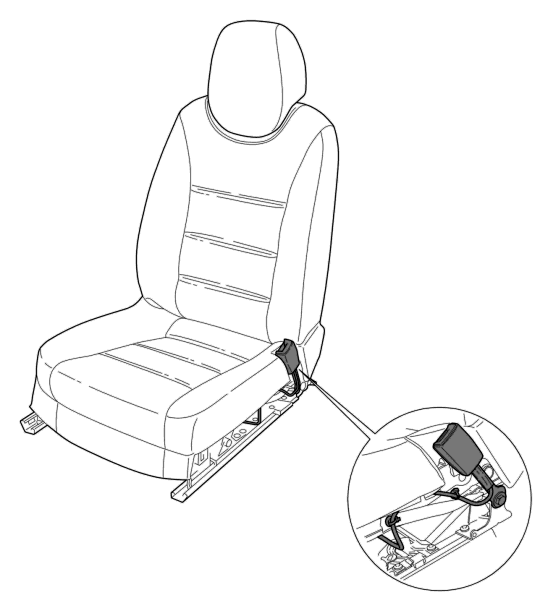

Fig 1: Installation location of seat-belt buckle

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Move front and rear of seat to highest position.

CAUTION: Remove ignition key. Disconnect battery. Route or isolate ground strap so that all contact with a ground carrier (e. g. body, seat frame) is avoided. Refer to 90 IN Work instructions after disconnecting the battery - as of MY 2003 (All Models Except Cayenne S TIO Titan) .

→

2. Remove front seat. Refer to 72 01 19 Removing and installing front seat - as of MY 2003 (All Models Except Cayenne S TIO Titan) .

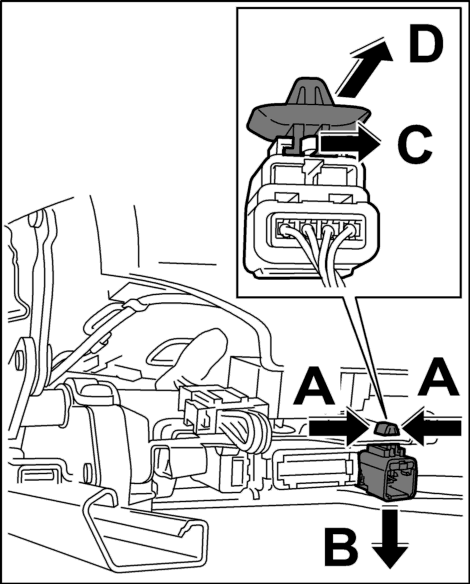

Fig 2: Pressing together locking tabs of clip and removing plug from clip

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Press together the locking tabs of the clip -Arrows A- and pull out the plug, together with the clip, in a downward direction -Arrow B- . See Fig 2.

Fig 3: Pressing together locking tabs of clip and removing plug from clip

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Press the locking tab to the side -arrow C- and remove the plug from the clip -arrow D- . See Fig 3.

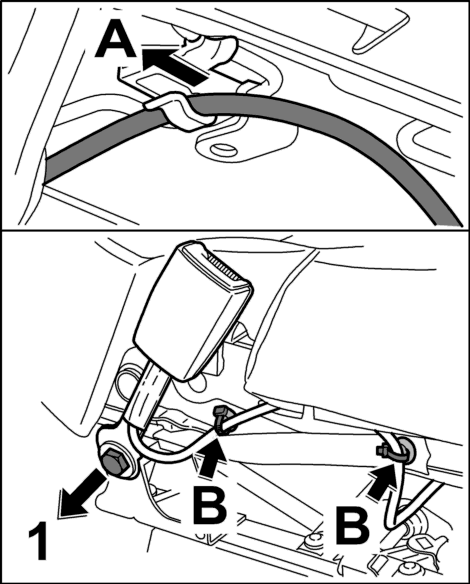

Fig 4: Removing cable from bracket and tie-wraps

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Remove cable from the bracket -Arrow A- . See Fig 4.

Fig 5: Removing cable from bracket and tie-wraps

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Separate the two tie-wraps -B- and unscrew the fastening screw -1- . See Fig 5.
