Removing and installing control module for seat heating

The control module for the seat is located on the right side for the driver's seat and on the left side for the passenger's seat.

• -A-  Backrest plug connection. Refer to Fig 1 .
• -B-  Seat cushion plug connection.
• -C-  Plug connection for seat heating control module
• -D-  Expanding rivet.

1. Removing control module for seat heating

   See REMOVING FRONT SEAT .

   1. Press the pin into the expanding rivet -D-  with a thin screwdriver for example and remove the holder together with the rivet and the control module. Refer to Fig 1 .
   2. Pull control module off the plug -C-  .

1. Installing control module for seat heating
   1. Push control module onto the plug -C-  . Refer to Fig 1 .
   2. Fix the control module and holder with the expanding rivet -D-  and press the pin in the rivet.

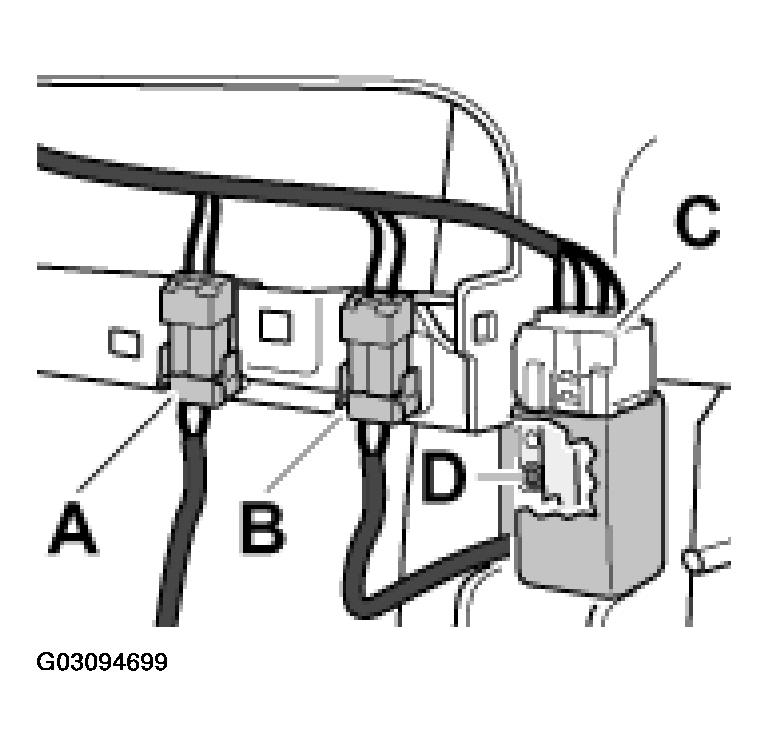

Fig 1: Removing/Installing Control Module For Seat Heating
Courtesy of PORSCHE OF NORTH AMERICA, INC.
