Removing front seat

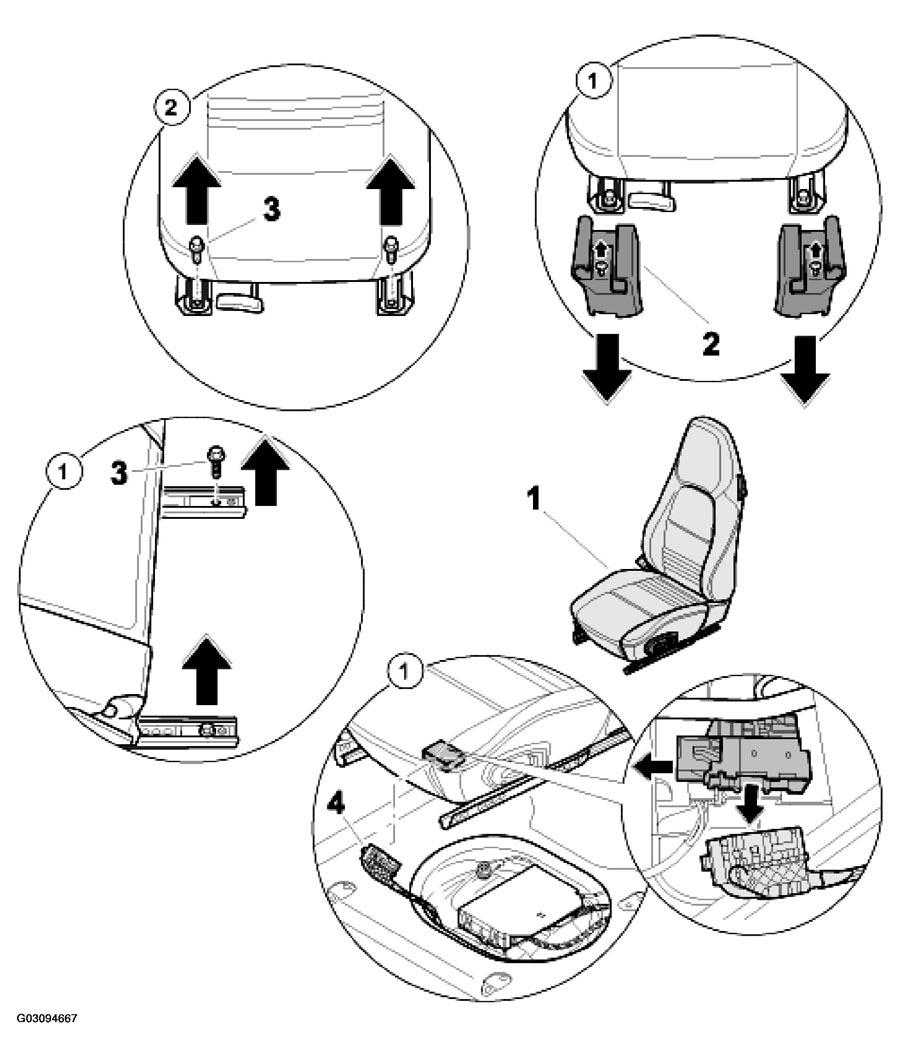

Fig 1: Removing Front Seat
G03094667Courtesy of PORSCHE OF NORTH AMERICA, INC.
REMOVING FRONT SEAT

No. Procedure Instructions
1 Remove seat rail cover Unscrew the sheetmetal screws out of the seat rail cover at the front -2-2-
2 Undoing seat screws at front Move seat to its rear limit position and undo the front M10 x 28 Torx screws -3-
3 Undoing seat screws at rear Move seat to its front limit position and undo the M10 x 28 Torx screws -3-
4 Disconnecting the electrical plug connection Release plug connector locking device on the side -arrow-4-
