Installing front spoiler
FRONT SPOILER - GT2 INSTALLATION PROCEDURE AND INSTRUCTIONS

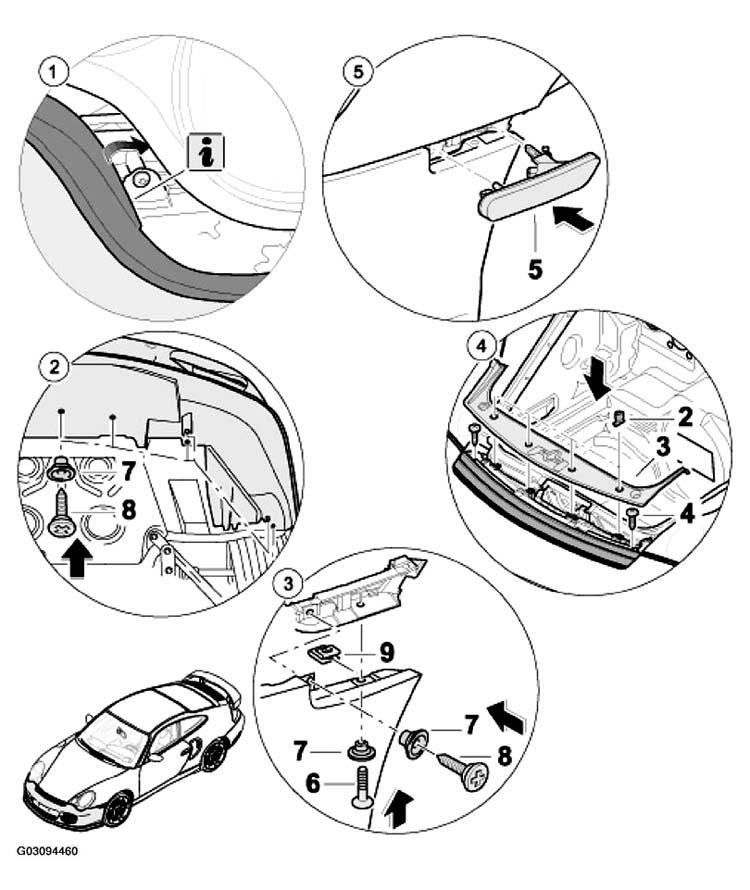

| No. | Procedure | Instructions |
|---|---|---|
| 1 | Fit front spoiler -1- | Lift the front spoiler -1-Note:- |
| 2 | Fit front spoiler on the underbody. | Position front spoiler on the underbody and screw in place with the fastening screws -10- |
| 3 | Fit front spoiler at the sides. | Affix front spoiler to the retaining strip and fasten it with the sheetmetal screw -6-7- |
| 4 | Fit cover. | Fasten the front end -1-4-3-2- |
| 5 | Fit direction indicator light. | Connect electrical plug connection of the direction indicator light -5-arrow-1- |
| Install wheel housing liner | Refer to REMOVING AND INSTALLING WHEEL HOUSING LINERS, FRONT |
