Removing and installing wheel housing liners, front

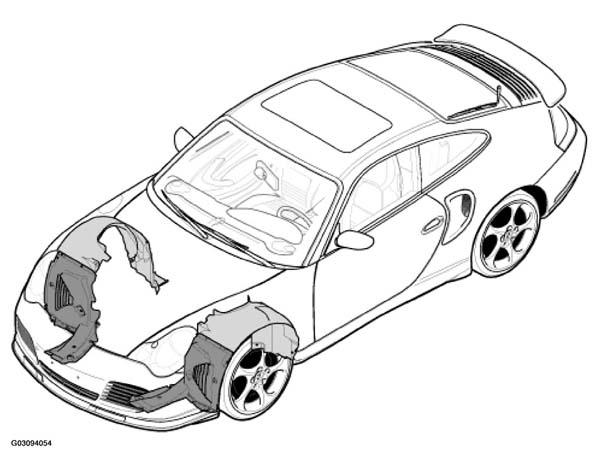

Fig 1: Locating Front Wheel Housing Liners

Courtesy of PORSCHE OF NORTH AMERICA, INC.

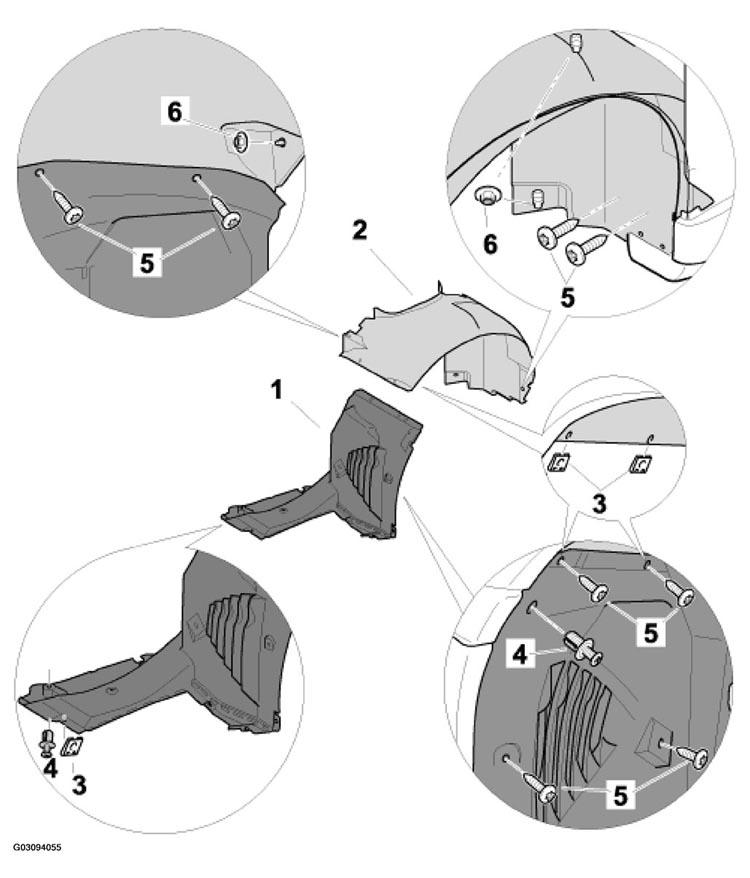

Fig 2: Removing And Installing Front Wheel Housing Liners

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT WHEEL HOUSING LINERS SPECIFICATIONS (1 OF 2)

No.	Designation	Qty.	Removal	Installation
1	Front left wheel housing liner, front	1

FRONT WHEEL HOUSING LINERS SPECIFICATIONS (2 OF 2)

No.	Designation	Qty.	Removal	Installation
2	Front left wheel housing liner, rear	1
3	Sheetmetal nut B4.8 12			Adjust to centre of hole.
4	Expanding rivet St 6.3	1		Check, replace if necessary.
5	Combination screw B4.8 x 16
6	Plastic nut T5 22 x 10			Check, replace if necessary.
