Installing inner sill

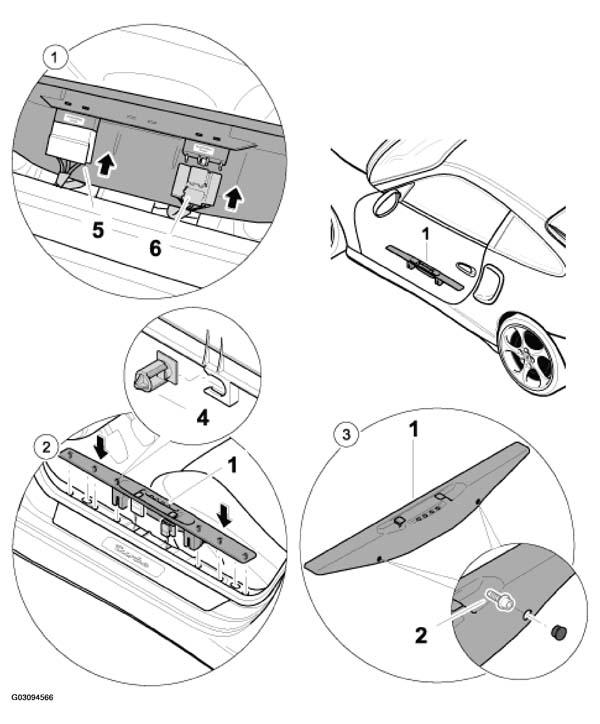

Fig 1: Installing Inner Sill (Driver's Side)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

INSTALLING INNER SILL (DRIVER'S SIDE)

No.	Procedure	Instructions
1	Joining plug connections -5, 6-	Install actuating switch if necessary. -5, 6- Refer to ASSEMBLING RELEASE FOR FRONT COVER-5, 6- Refer to ASSEMBLING RELEASE FOR REAR LID-5, 6- Push plug connections -5, 6-
2	Putting on sill cover -1-	Clip in new fastening clips -4-1-
3	Tightening hexagon socket head bolts -2-	Screw in hexagon socket head bolts -2-3-
