Assembling release for rear lid
ASSEMBLING RELEASE FOR REAR LID

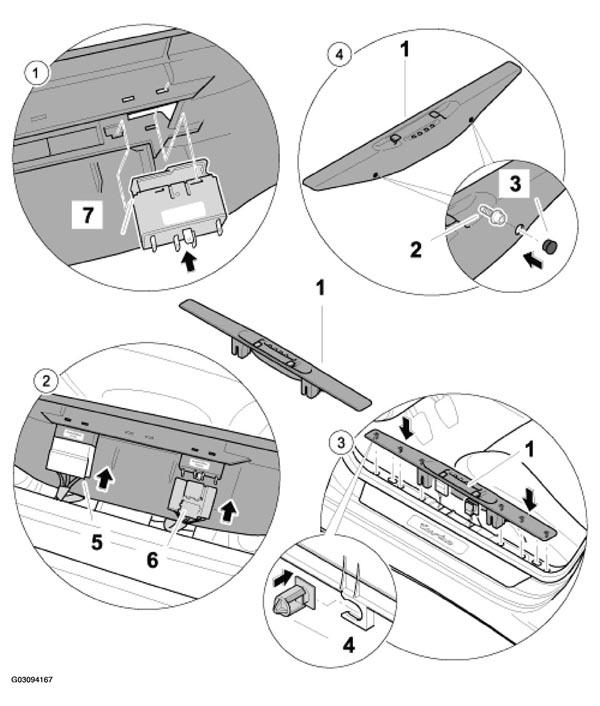

| No. | Procedure | Instructions |
|---|---|---|
| 1 | Installing actuating switch for rear lid -7- | Clip locking tabs of the actuating switch for the rear lid -7- |
| 2 | Joining plug connections -5, 6- | Push plug connections -5, 6- |
| 3 | Putting on sill cover -1- | Clip in new fastening clips -4-1- |
| 4 | Tightening hexagon socket head bolts -2- | Screw in hexagon socket head bolts -2-3- |
