Converting holder for hydraulic pump (Cabriolet): Procedure

WARNING: This page is about a different variant/trim than selected.

Convertible top in service position.
See REMOVING AND INSTALLING CONVERTIBLE TOP .
Removing hydraulic pump
Remove hydraulic pump with holder. See REMOVING AND INSTALLING HYDRAULIC PUMP .
Sawing off holder

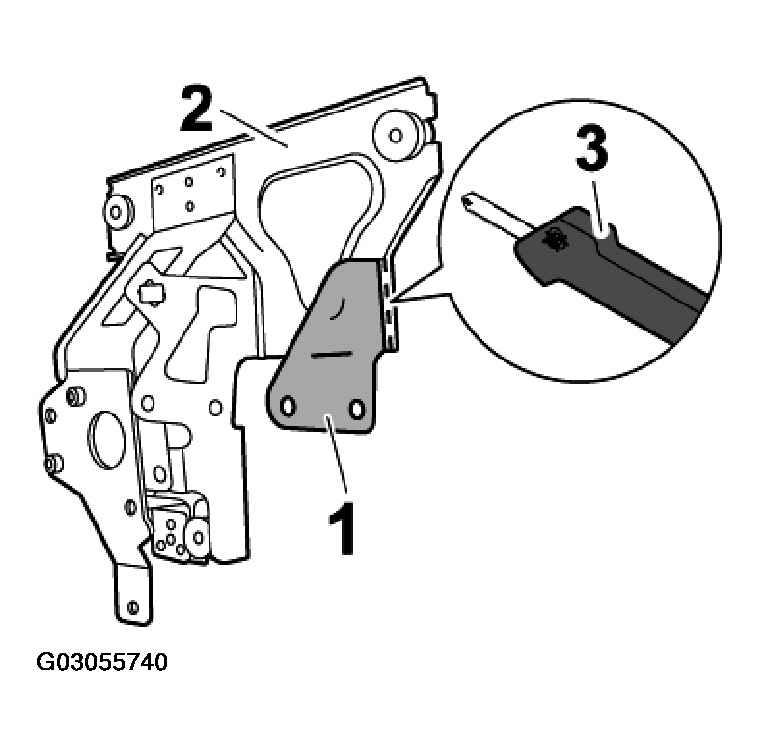

Saw off holder -1- from bracket -2- using a saw blade and saw blade holder -3- . See Fig 1.

Fig 1: Sawing Off Holder (Cabriolet)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Enlarging through hole in bracket

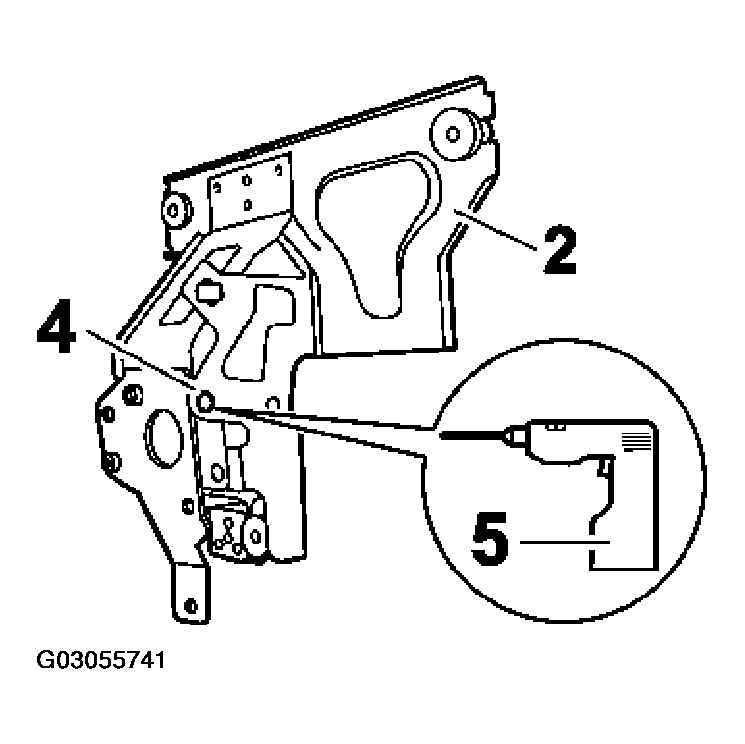

Enlarge through hole -4- in bracket -2- for correct fitting of fastening screw using a twist drill 6.0 mm -5- . See Fig 2.

Fig 2: Enlarging Through Hole In Bracket (Cabriolet)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Installing new hydraulic pump
Install hydraulic pump. See TIGHTENING TORQUES .
