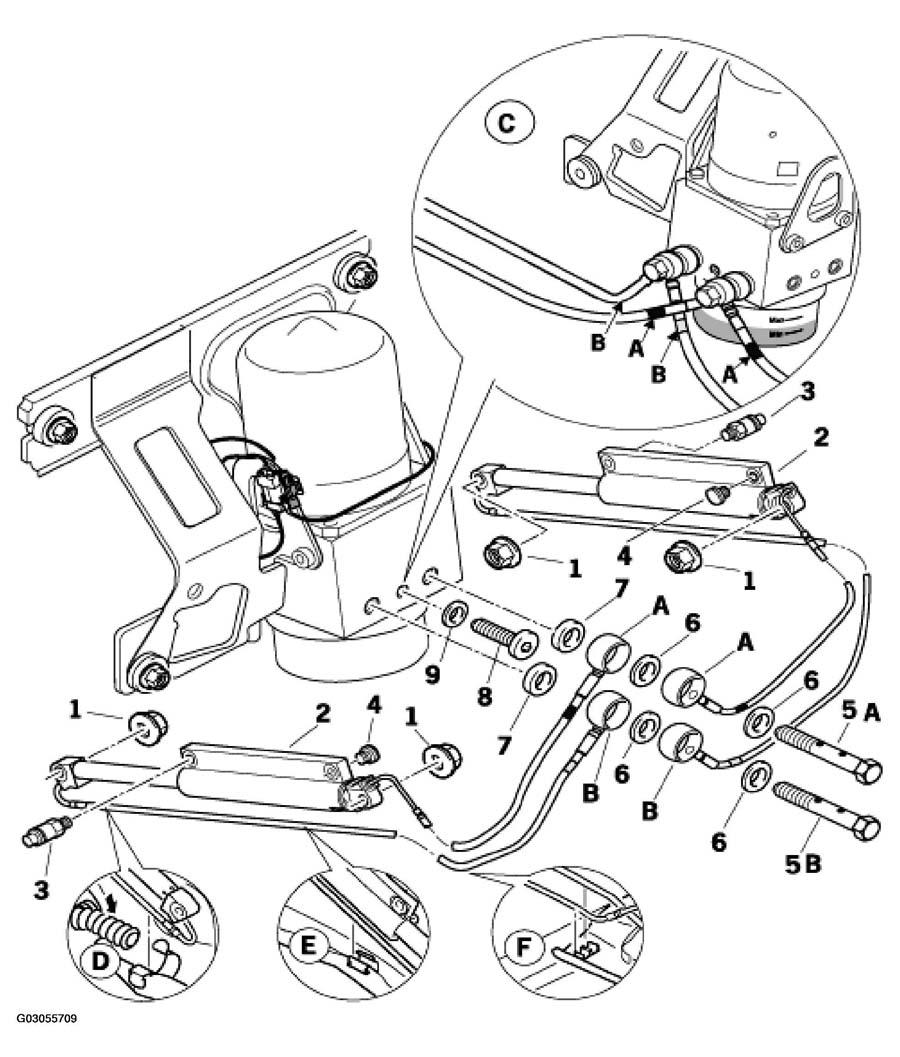

TORQUE SPECIFICATIONS - HYDRAULIC CYLINDERS FASTENER (AS OF MY 2002)
| Location | Illustration | Thread | Tightening torque [Nm] (ftlb.) |
|---|---|---|---|
| Fastening nuts, hydraulic cylinder to convertible-top support | -1- . See Figure. | M8 | 17 +/- 2 (13 +/- 1.5) |
| Guide pin on hydraulic cylinder | -3- . See Figure. | 11 +/- 1 (8 +/- 0.5) | |
| Convertible-top pin on hydraulic cylinder | -4- . See Figure. | 12 +/- 1 (9 +/- 0.5) | |
| Hydraulic lines to hydraulic pump | -5A, 5B- . See Figure. | 12+2 (9+1.5 ) | |
| Plug on hydraulic pump | -8- . See Figure. | 10+1 (7.5+0.5 ) |
