Removing And Installing The Differential (Transmission G 86): Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

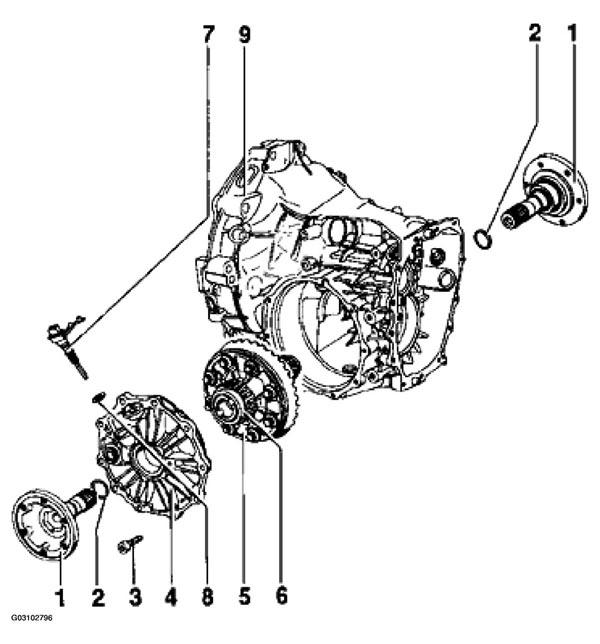

Fig 1: Exploded View Of Differential Components (Transmission G 86)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

DIFFERENTIAL COMPONENTS (TRANSMISSION G 86) DESCRIPTION

No.

Designation

Qty.

Removal

Installation

1⁽²⁾

Flanged shat

Refer to Installing .

Grease the snap ring and drive it in with a suitable mandrel (for example, special tool VW 295)

2⁽²⁾

Snap ring

Refer to Installing .

Always replace

3⁽²⁾

Torx screw

Tightening torque 25 Nm (19 ft.lb)

4⁽²⁾

Cover for final drive

Seal with Loctite 574

5⁽²⁾

Differential

Can also be removed without removing the transmission

6⁽²⁾

Speedometer-drive gear ⁽¹⁾

7⁽²⁾

Tachometer sensor ⁽¹⁾

8⁽²⁾

Toroidal sealing ring

Always replace, lightly oil

9⁽²⁾

Transmission housing

⁽¹⁾	In this transmission, the speedometer-drive gear and tachometer sensor have no function.

⁽²⁾	For explanation see Fig 1 .

Fig 1: Exploded View Of Differential (Transmission G 86) Components
