Removing And Installing Long Flanged Shaft: Installing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace square sealing ring in mounting saddle.
  2. Check flanged shaft for burrs and sharp edges on the transmission end of the shaft (arrow) and deburr if necessary.

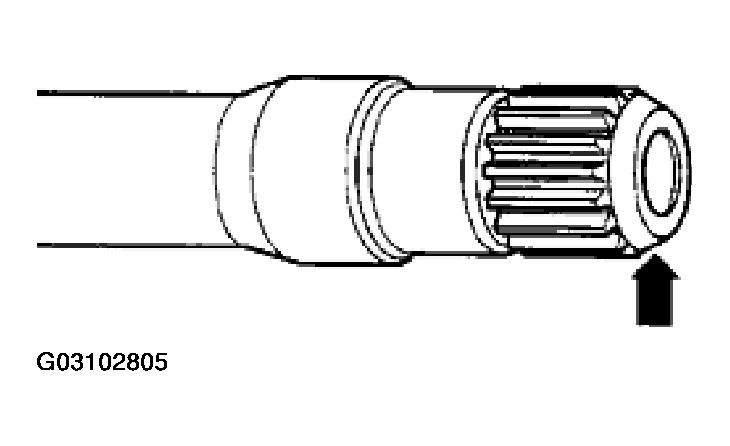

    Fig 1: Checking Flanged Shaft For Burrs And Sharp Edges On Transmission End
    G03102805Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Carefully insert flanged shaft into the transmission.
    NOTE: While being inserted, the flanged shaft must be carefully guided with the hand in order to prevent damage to the double sealing ring in the transmission.
  4. Refill rear-axle oil.
