Removing And Installing Long Flanged Shaft: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove left rear wheel.
  2. Drain rear-axle oil. Refer to CHANGING AND CHECKING TRANSMISSION OIL IN FINAL DRIVE  .
  3. Uncouple left drive shaft on the transmission side and protect shaft from damage (use piece of hose with diameter of approximately 30 mm).

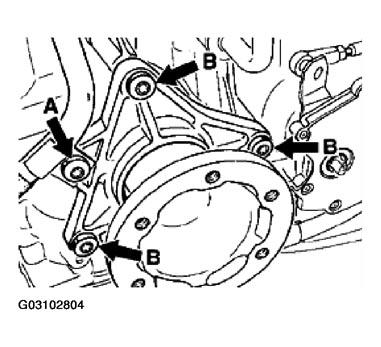

  4. Unscrew fastening screw (A) for coolant pipe and (B) for the mounting saddle.
    Fig 1: Removing Coolant Pipe And Mounting Saddle Fastening Screws
    G03102804Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Carefully pull out flanged shaft.
