Changing And Checking Transmission Oil In Final Drive

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Filling capacity: approximately 0.8 liter

Oil type: Hypoid transmission oil, Burmah-Oil, SAF-AG 4/1016

NOTE:

There is no oil drain plug on the final drive. For oil changes, the cover of the final drive must be removed. See REMOVING AND INSTALLING FINAL DRIVE/TRANSMISSION HOUSING DOUBLE SEALING RING .

Unscrew plug (arrow). See Fig 1 .

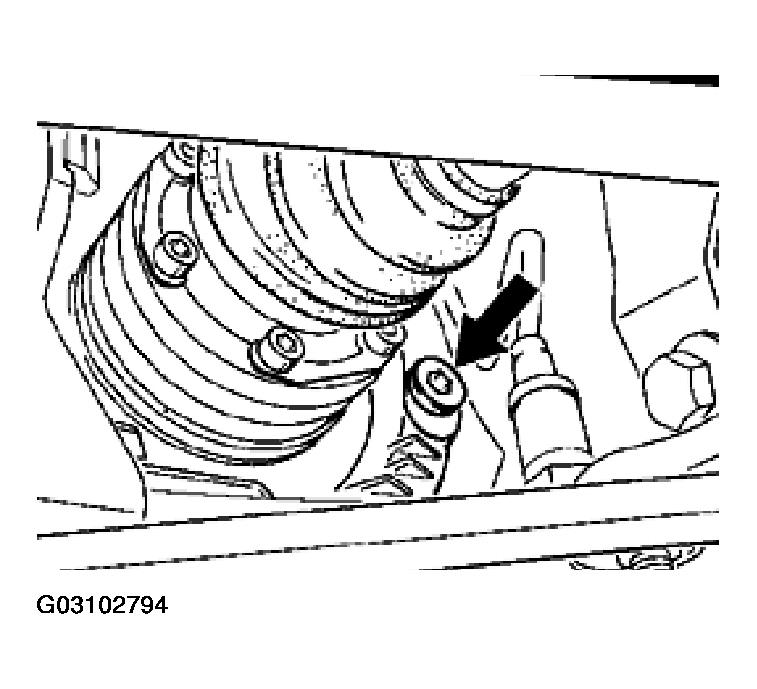

Fig 1: Locating Final Drive Plug
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Slowly pour in the prescribed oil type. The oil level must reach the lower edge of the filler opening.
Replace toroidal sealing ring for plug and tighten to 30 Nm (22 ft.lb).
