Removing And Installing Selector Lever Cable: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The selector cable must not be excessively bent or kinked.

Move selector lever to "P" position.
Detach selector lever cable at deflection lever and at transmission support.

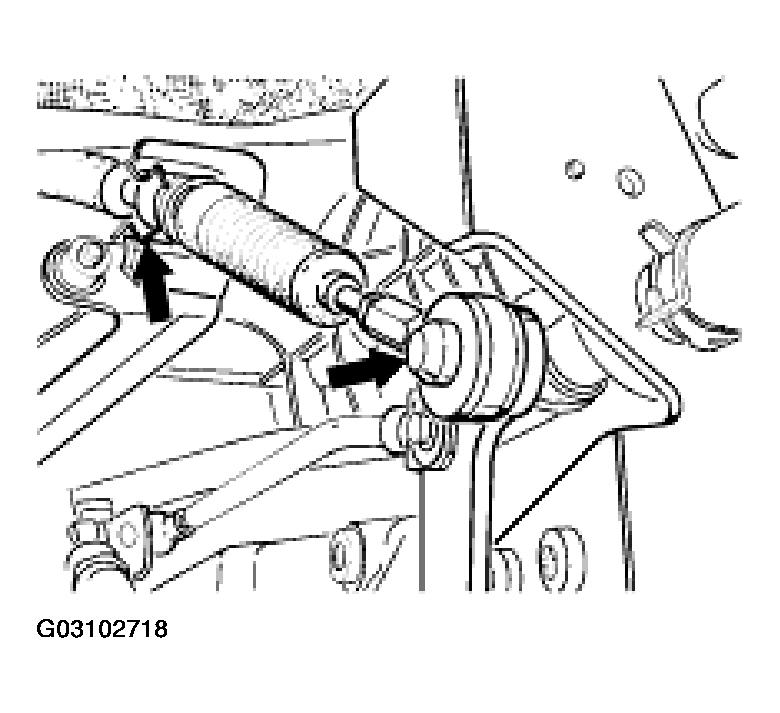

Fig 1: Detaching Selector Lever Cable At Deflection Lever And At Transmission Support
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove selector knob. See REMOVING AND INSTALLING SELECTOR KNOB .
Remove center console. See REMOVING AND INSTALLING CENTRE CONSOLE .
Remove rear wall cover.

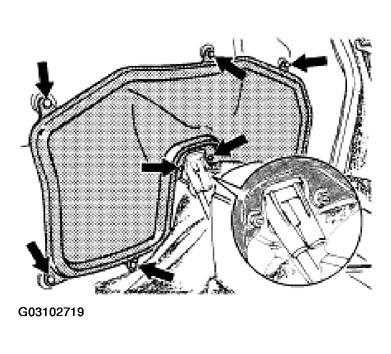

Fig 2: Removing Rear Wall Cover
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove cable holder.

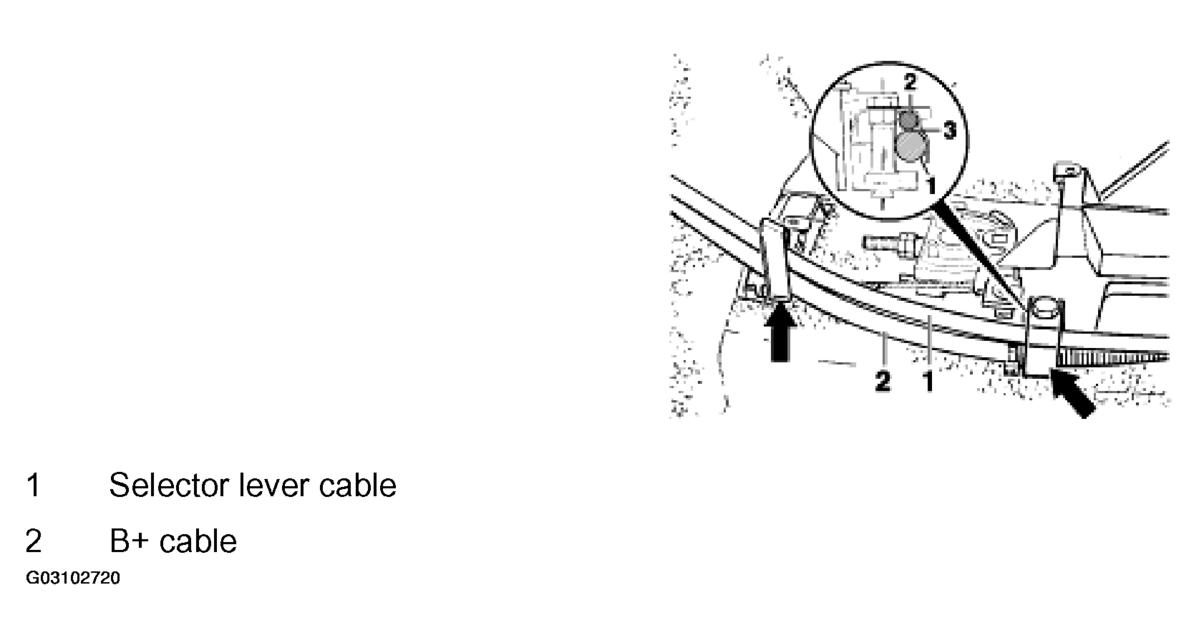

Fig 3: Removing Cable Holder
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Disengaging selector lever cable:
- Slide the locking sleeve of the adjuster (1) forward and turn it clockwise to removal position.
- Press the retaining clip (2) together and carefully pull the cable upward out of the support bracket.
Press out locking piece and remove selector lever cable. Take care not to soil the passenger compartment.

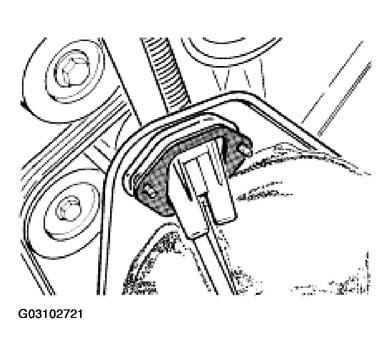

Fig 4: Pressing Out Locking Piece
Courtesy of PORSCHE OF NORTH AMERICA, INC.
