Removing And Installing Shift Console: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console. See REMOVING AND INSTALLING CENTER CONSOLE .
  2. Shift transmission to neutral and fix shift lever with special tool 9619.

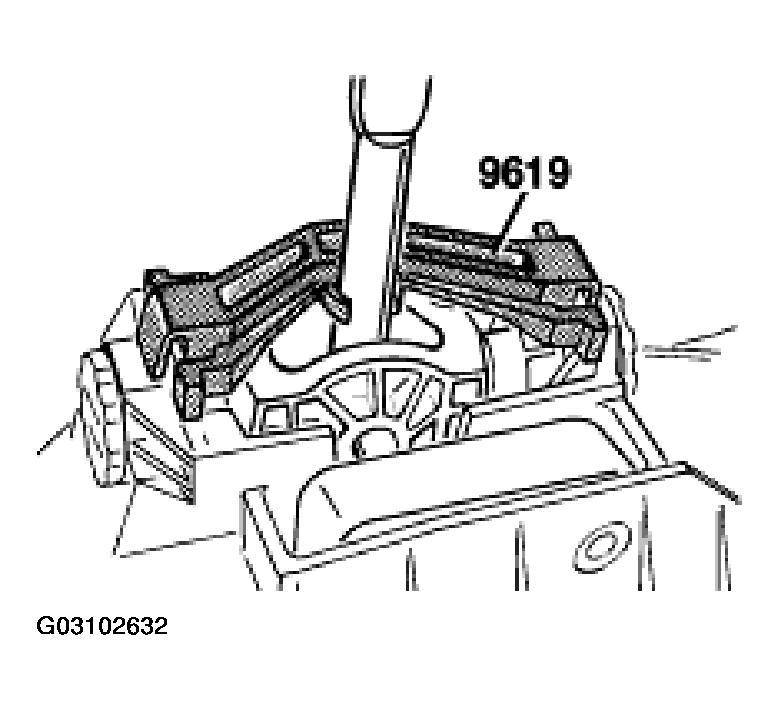

    Fig 1: Shifting Transmission To Neutral And Fixing Shift Leverr With Special Tool 9619
    G03102632Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Remove shift console cover.
  4. Disengage the selector and shift cables on the shift console. To do this, slide the locking sleeve forward as far as it will go and turn it clockwise to removal position.

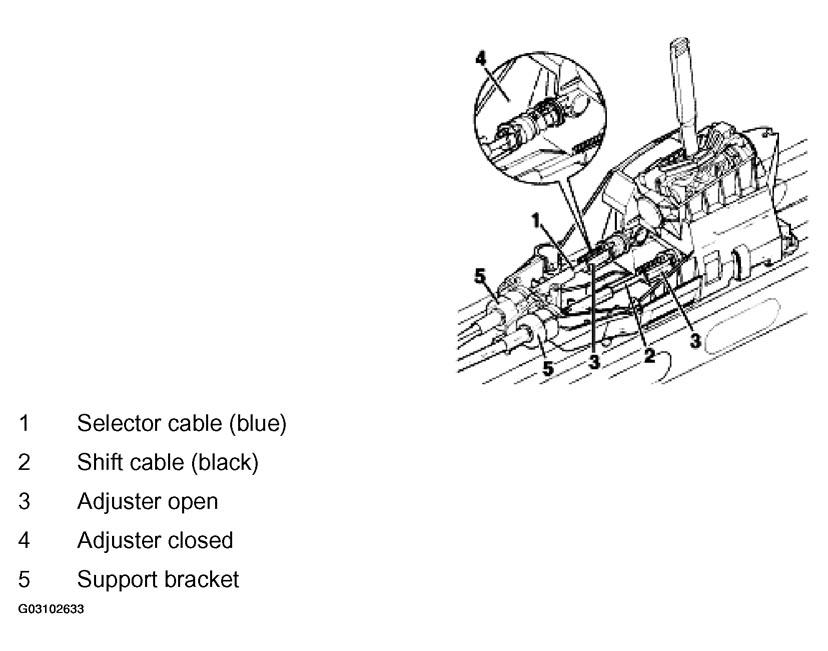

    Fig 2: Disengaging Selector And Shift Cables On Shift Console
    G03102633Courtesy of PORSCHE OF NORTH AMERICA, INC.
