Removing And Installing Shift And Selector Cables: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The shift cable and selector cable can be exchanged only together, as they possess a common locking piece.
  1. Remove center console. See REMOVING AND INSTALLING CENTER CONSOLE .
  2. Shift transmission to neutral and fix shift lever with special tool 9619.

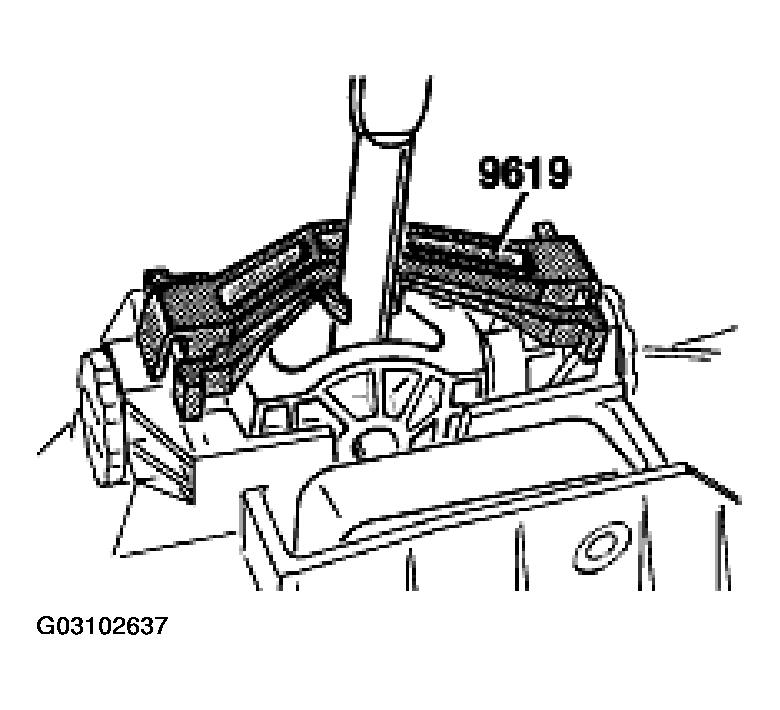

    Fig 1: Shifting Transmission To Neutral And Fixing Shift Lever With Special Tool 9619
    G03102637Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Disengage shift and selector cables on the transmission:

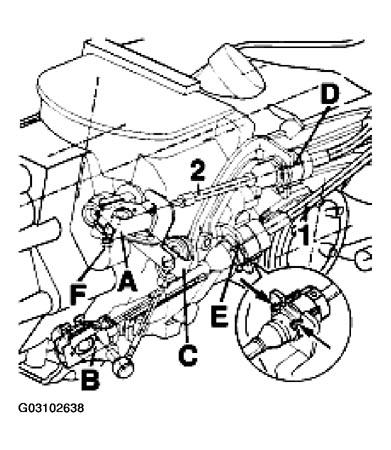

    Fig 2: Disengaging Shift And Selector Cables On Transmission
    G03102638Courtesy of PORSCHE OF NORTH AMERICA, INC.
    1. 1 Selector cable (blue)

      Shift cable (black)

    NOTE: The shift and selector cables must not be excessively bent or kinked.
    • Remove cotter pins for retaining clips (A/B), remove clips and pull shift and selector cables off the ball head. See Fig 2 .
    NOTE: The transmission shift lever must be removed so that retaining clip "A" can be removed. To do this, remove retaining clip "C", unclip joint rod at the top and unscrew securing screw "F". See Fig 2 .
    • Disengage support bracket sleeves "D" and "E" on the support bracket. To do this, release the support bracket sleeves (press tabs in the direction indicated by the arrow) and carefully pull out of the support bracket. See Fig 2 .
  4. Remove rear wall cover.
  5. Lift shift console cover up and off.
  6. Disengage shift and selector cables on the shift console. To do this, slide the locking sleeve forward as far as it will go and turn it clockwise to removal position.
  7. Disengage support bracket sleeves (5) on the shift console. See Fig 3 . To do this, release the support bracket sleeves and carefully pull out of the support bracket.

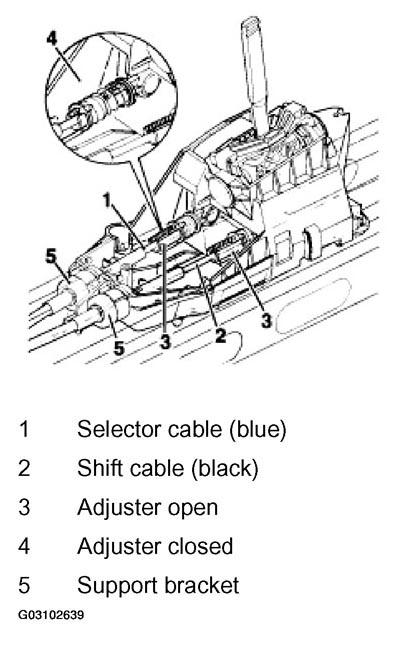

    Fig 3: Disengaging Shift And Selector Cables On Shift Console
    G03102639Courtesy of PORSCHE OF NORTH AMERICA, INC.
  8. Relieve parking brake cable, unscrew fastening nuts for parking brake lever support, and lift the support only far enough so that the selector cable can be removed from the side.
  9. Remove locking piece from the rear wall and take out shift and selector cables. Take care not to soil the passenger compartment.

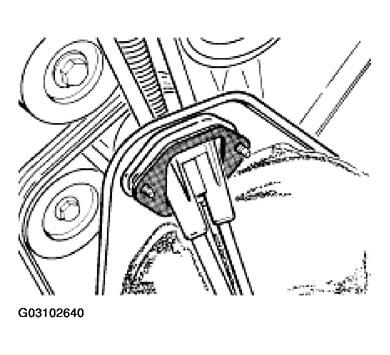

    Fig 4: Removing Locking Piece From Rear Wall And Take Out Shift And Selector Cables
    G03102640Courtesy of PORSCHE OF NORTH AMERICA, INC.
