Installing Fusible Element In The Current Distributor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The following spare parts must be replaced.

Hexagon nut M 8, 1 piece

Repair kit - replacement fusible element

Insert new fusible element -1-, using new washers -2- and new hexagon nuts -3- M 5. Tightening torque: 4 Nm (3 ft.lb). See Fig 1 .

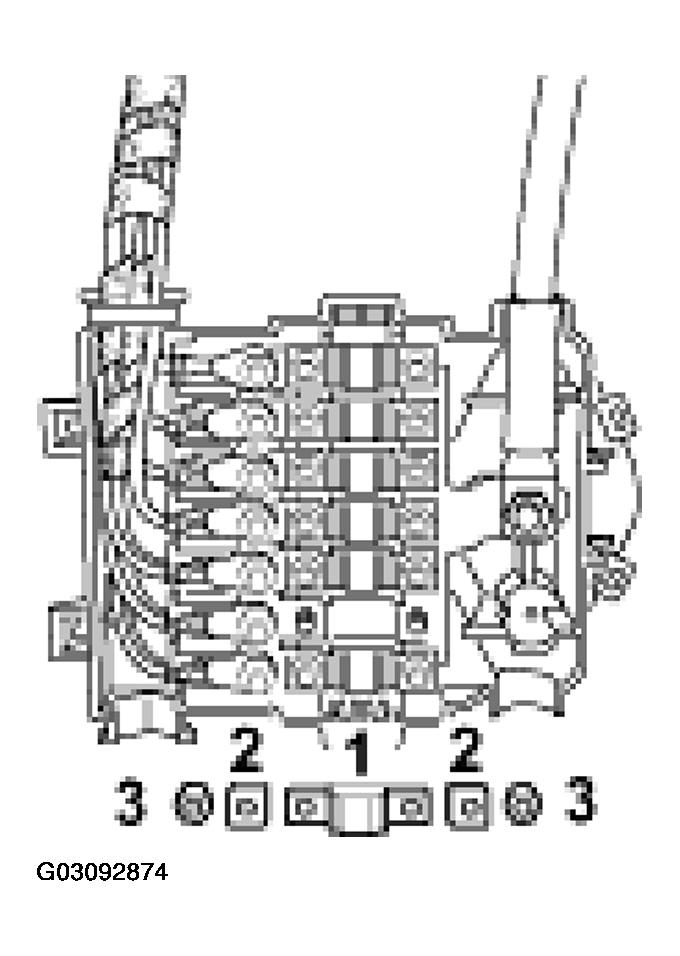

Fig 1: Inserting Fusible Element
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Position and engage the blue after-sales service cover -A- . See Fig 1 .

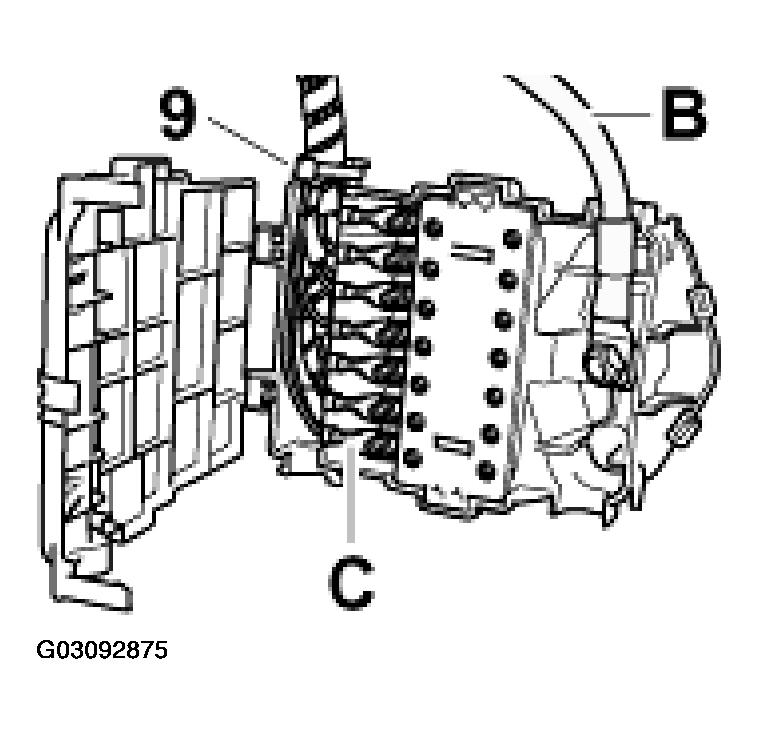

Fig 2: Installing After-Sales Service Cover
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Close the current distributor cover until it engages -arrow- . See Fig 2 .
Affix the blue service label.
See INSTALLING THE CURRENT DISTRIBUTOR .
