Installing The Current Distributor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The following spare parts must be replaced:

Hexagon nut M 6, 7 ea.

Hexagon nut M 8, 2 ea.

Service label, red

Depending on condition, flange seal, current distributor/firewall

Tie-wraps

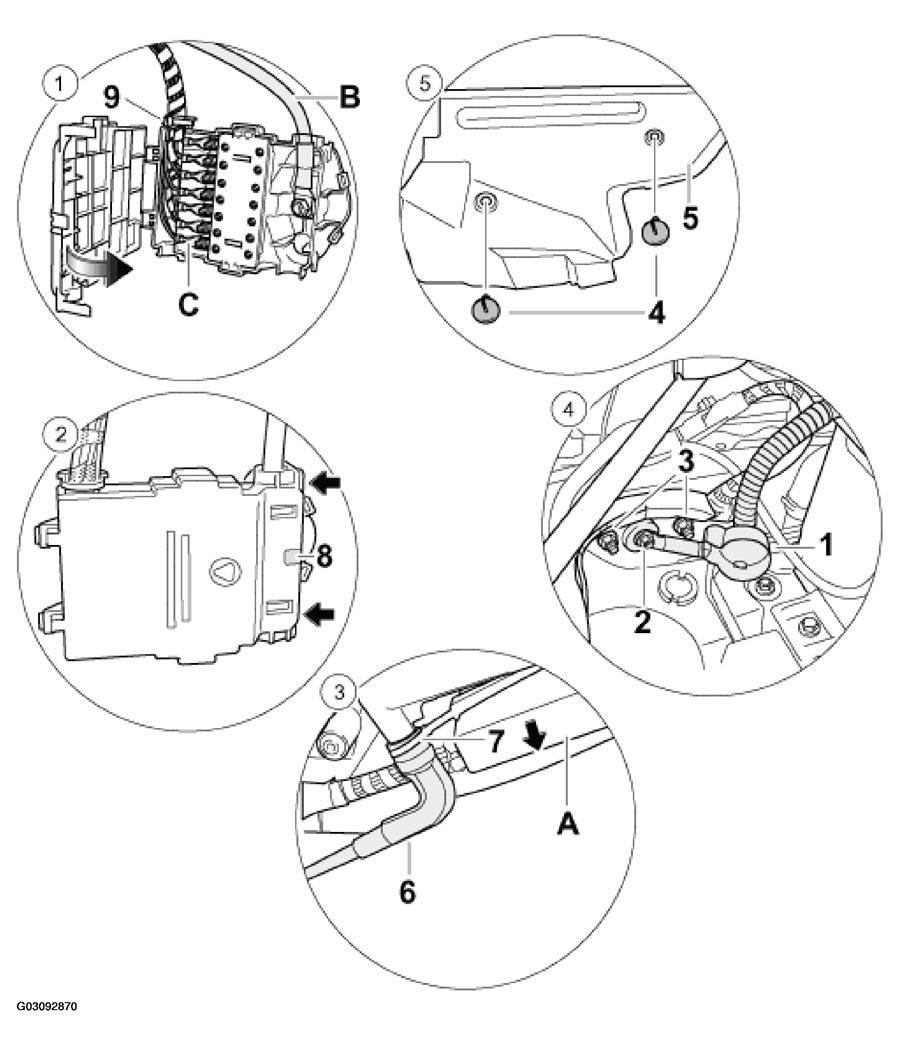

Fig 1: Identifying Current Distributor Installation Sequence

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CURRENT DISTRIBUTOR INSTALLATION SEQUENCE

No.

Procedure

Instructions

Connecting the connection lines

Connect the connection lines -C-B-9- ⁽¹⁾

Closing and sealing the current distributor

Close the cover until both locking elements -arrow-8-red- ⁽¹⁾

Installing the current distributor

Check the flange seal between the current distributor and the firewall for damage and replace, if necessary. Push the current distributor -A-direction of the arrow-A-6-7- ⁽¹⁾

Screwing the current distributor tight

Tighten both hexagon nuts -3-2-1- ⁽¹⁾

Cover in passenger's footwell

Position the cover -5-4- ⁽¹⁾

Connecting the battery

Refer to WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY . Work instructions after disconnecting the battery.

Installing the cowl panel cover

Refer to REMOVING AND INSTALLING COWL PANEL COVER . Removing and installing cowl panel cover.

⁽¹⁾

Fig 1
