Installing Rain Sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Observe notes under REMOVING RAIN SENSOR
.
- If the removed rain sensor is reinstalled, the surfaces must be free of adhesive residues. Do not use harsh cleaning agents. Stick the adhesive pad onto the rain sensor at a temperature of approx. 20°C.

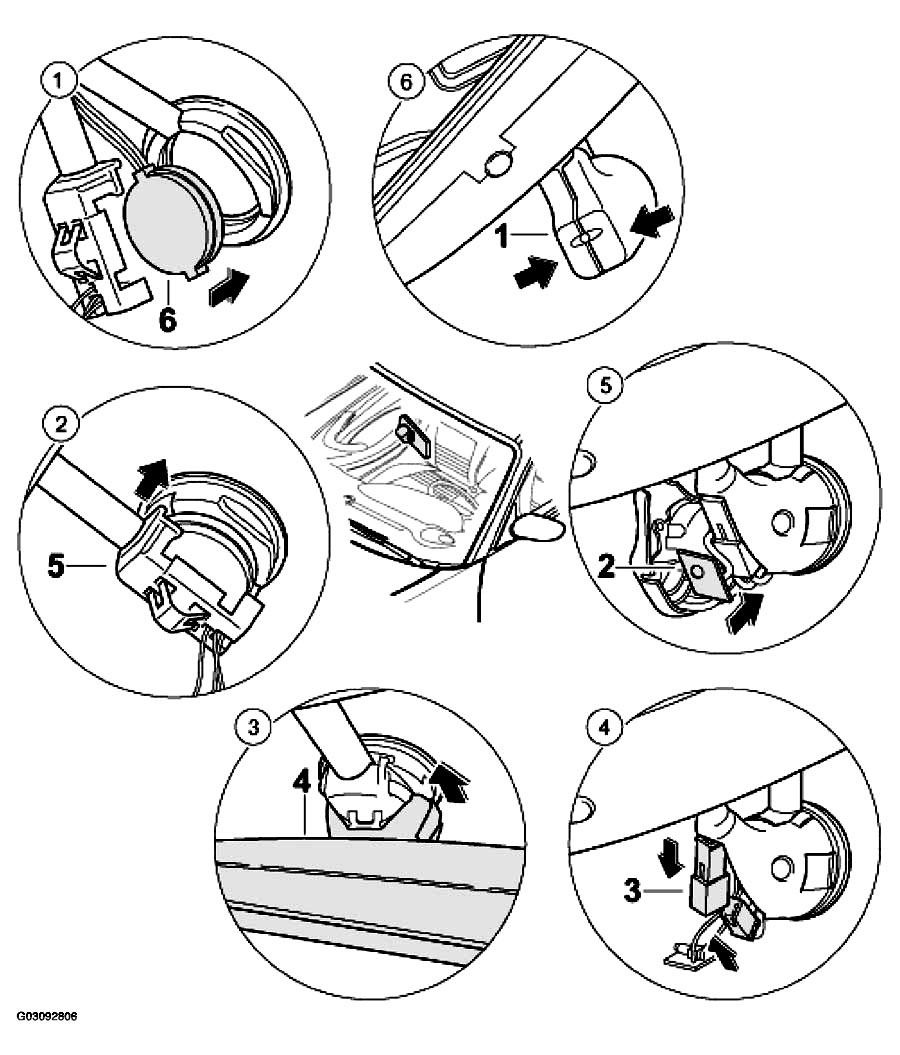

RAIN SENSOR INSTALLATION SEQUENCE
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 1 | Sticking on rain sensor | Push the rain sensor -6- (1) | ||
| 2 | Clipping in holder | Push and press holder -5- (1) | ||
| 3 | Pushing on rearview mirror | Push rearview mirror -4- (1) | ||
| 4 | Pushing on plug | Join the plug connection -3- (1) | ||
| 5 | Inserting orientation light | Insert orientation light -2- (1) | ||
| 6 | Attaching cover of mirror base | Join both covers -1- (1) | ||
|
||||

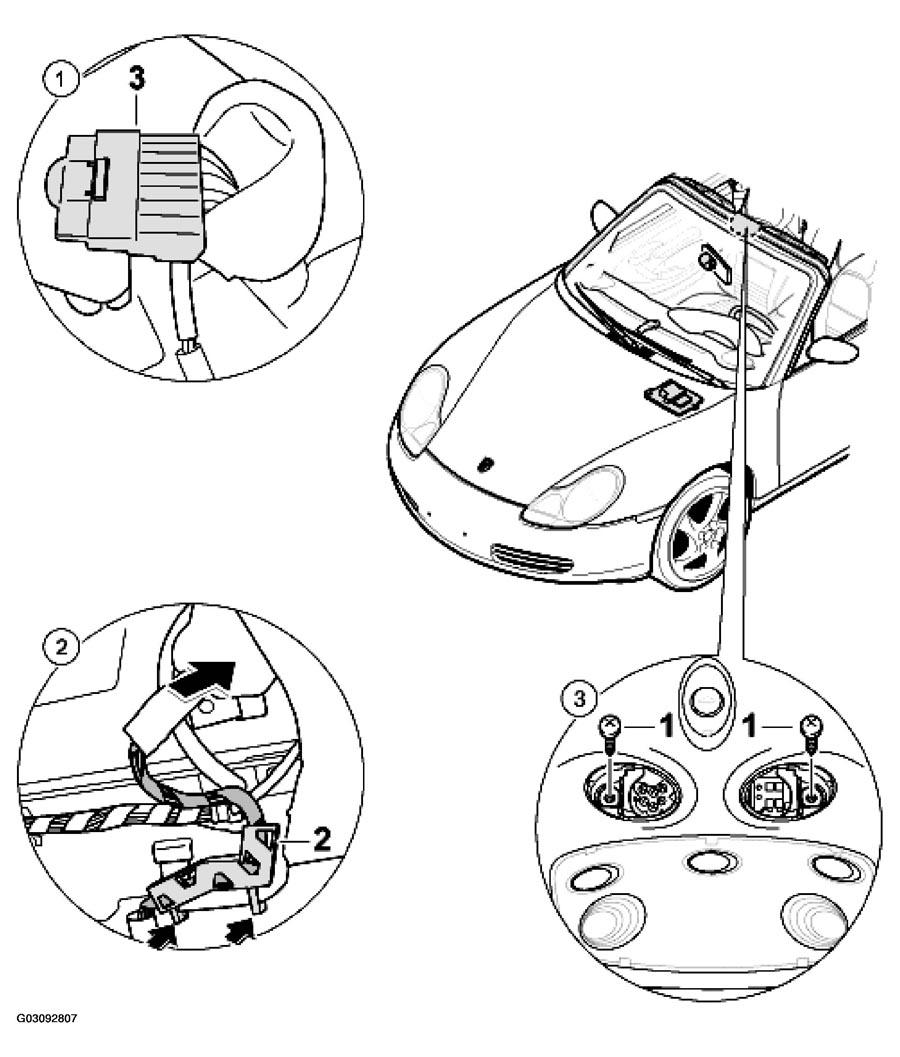

RAIN SENSOR INSTALLATION SEQUENCE
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 1 | Connecting the plug connection | Press the plug connection -3- (1) | ||
| 2 | Line routing | Engage holder -2- (1) | ||
| 3 | Mounting cover of infra-red interior sensor | Tighten fastening screws -1- (1) | ||
|
||||
