Removing Rain Sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

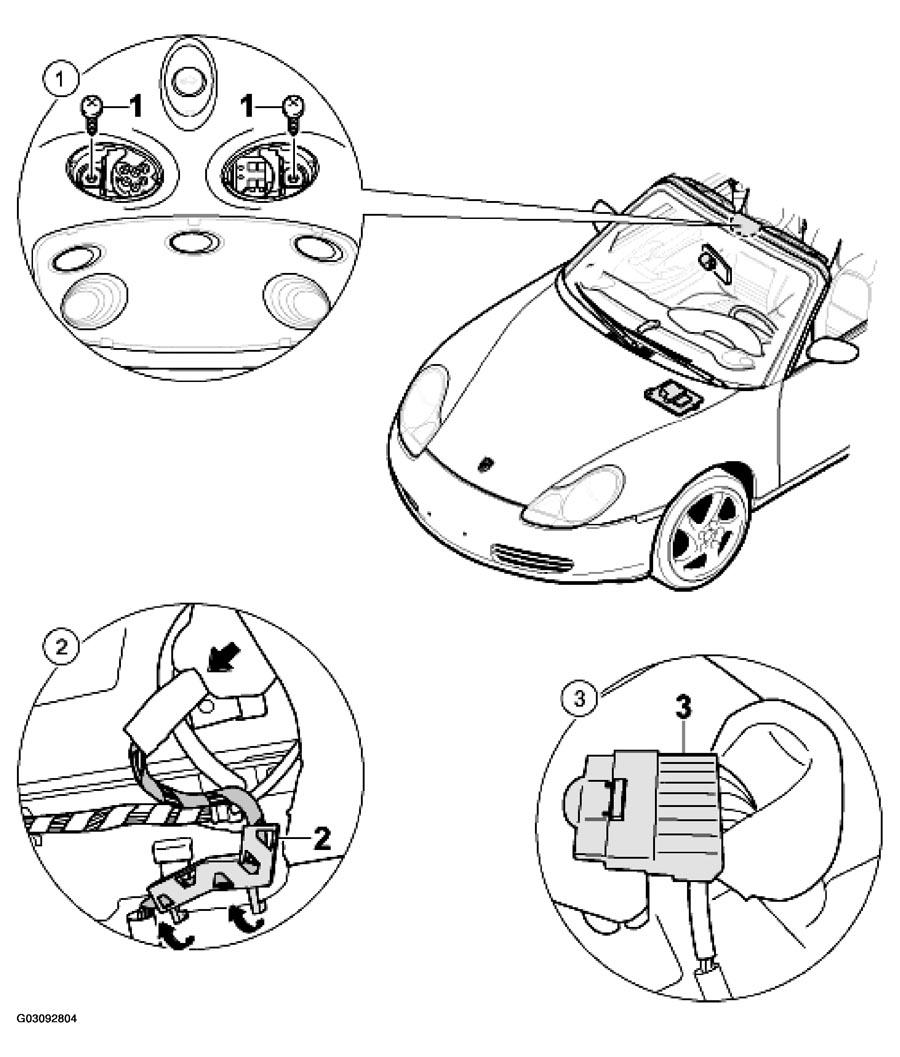

INFRA-RED INTERIOR SENSOR REMOVAL SEQUENCE
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 1 | Removing cover of infra-red interior sensor | Remove both covers and unscrew both screws -1- (1) . | ||
| 2 | Line routing | Disengage holder -2-arrow- (1) . | ||
| 3 | Disconnecting the plug connection | Press plugs -3-arrow- (1) . | ||
|
||||
Limited functionality of the rain sensor when the following information points are not observed:
- An adhesive pad must be used when reinstalling the rain sensor.
- When assembling the adhesive pad, air should not be trapped between the windscreen and the adhesive pad or between the adhesive pad and the rain sensor.
- When installing the adhesive pad, a temperature of approx 20°C for the windscreen, the rain sensor and the adhesive pad must be ensured. Carefully heat the windscreen with a hot-air gun for example.
- The sensor on the sticking surface must not be touched by fingers.
- If the sensor is new, remove the protection cap before the sensor is stuck onto the windscreen.
- When sticking a new sensor, make sure that no air pockets are caught between the gel and the windscreen. Air pockets could impair the function of the sensor.
- Sensor, orientation light, wires and wiring ducts are spare parts.
If the old rain sensor is installed: begin with the instructions RAIN SENSOR REMOVAL SEQUENCE .

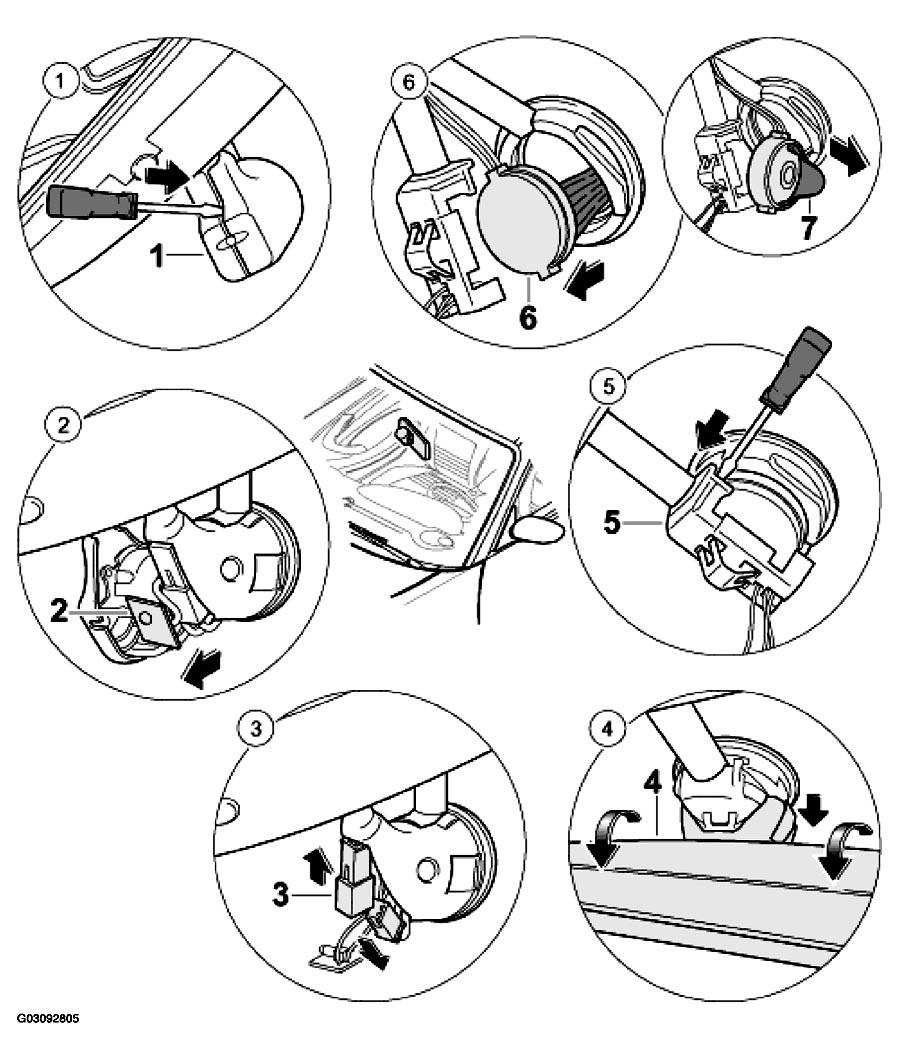

RAIN SENSOR REMOVAL SEQUENCE
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 1 | Removing cover of rain sensor | Unclip the cover -1- (1) | ||
| 2 | Removing orientation light Remove | orientation light -2- (1) | ||
| 3 | Disconnecting the plug connection | Carefully pull out the plug connection -3- (1) | ||
| 4 | Removing mirror | Fold mirror -4- (1) | ||
| 5 | Unclipping rain sensor holder | Carefully unclip holder -5- (1) | ||
| 6 | Undoing rain sensor from the windscreen | Remove rain sensor -6- (1) | ||
| 7 | Pull of adhesive pad | If the rain sensor is reinstalled, then slowly pull the adhesive pad -7- (1) | ||
|
||||
