Installing lumbar support
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
INSTALLING PROCEDURE FOR LUMBAR SUPPORT
| No. | Procedure | Instructions |
|---|---|---|

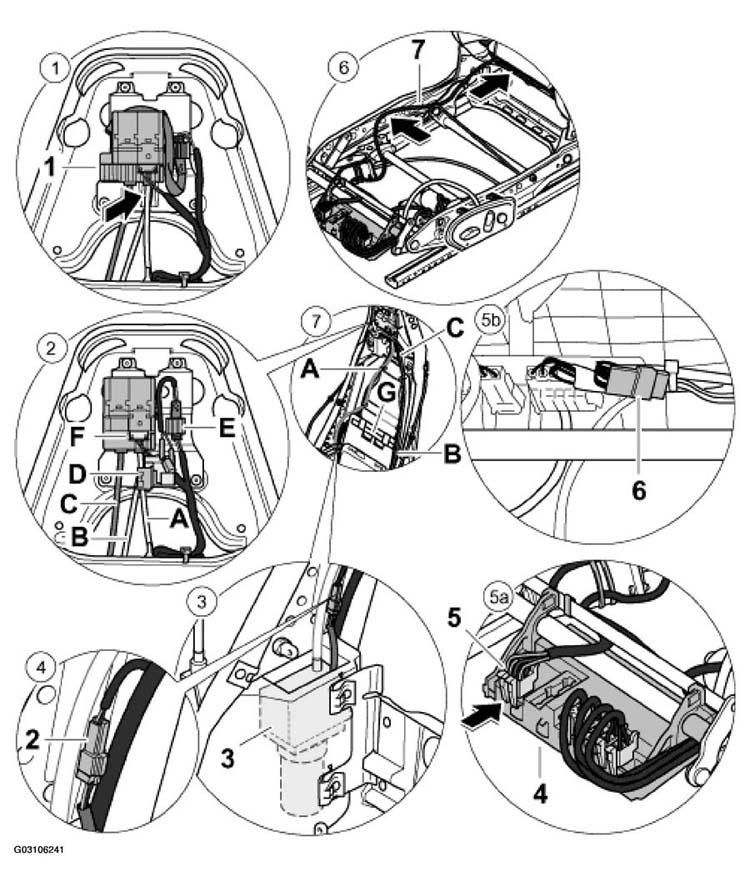

| 7 | Lumbar support -G- . See Figure . | Insert lumbar support -G-arrow-B-C- . See Figure . |
| 1 | Air hose -B, C- . See Figure . | Connect air hose -B, C- . See Figure . |
| Installing covering for backrest. | See INSTALLING COVERING FOR THE FRONT BACKREST FRAME | |
| Installing front seat | See REMOVING AND INSTALLING FRONT SEAT . |
