Installing covering for the front backrest frame

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

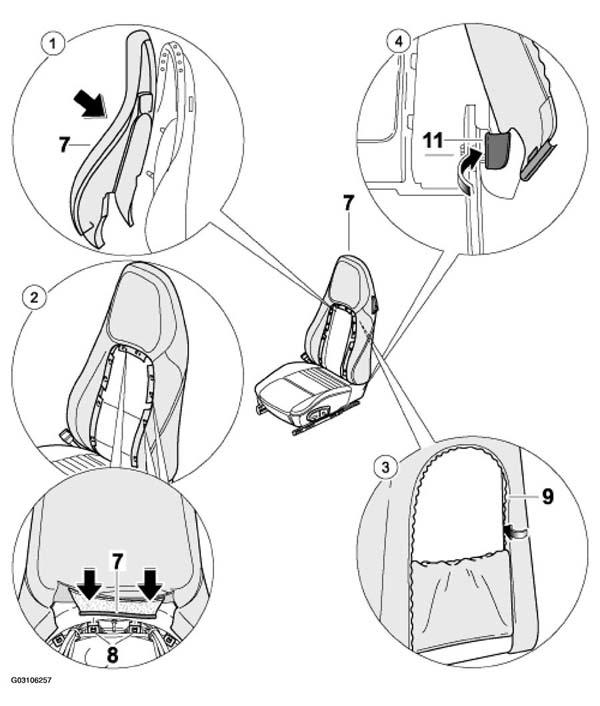

Fig 1: Installing Covering For Front Backrest Frame (1 Of 2)
G03106257Courtesy of PORSCHE OF NORTH AMERICA, INC.
INSTALLING PROCEDURE FOR COVERING FOR FRONT BACKREST FRAME (1 OF 3)

No. Procedure Instructions
1 Positioning foam part Position foam part on the backrest frame.
2 Installing backrest covering Fit the backrest covering onto the backrest frame. Press the covering bead -7-8-  . See Fig 1 .
3 Fitting the backrest covering at rear Press the connection of the backrest covering into the backrest shell at the rear -9-  . See Fig 1 .
4 Folding over the side bolsters Screw in the connection -11-direction of arrow-  . See Fig 1 .

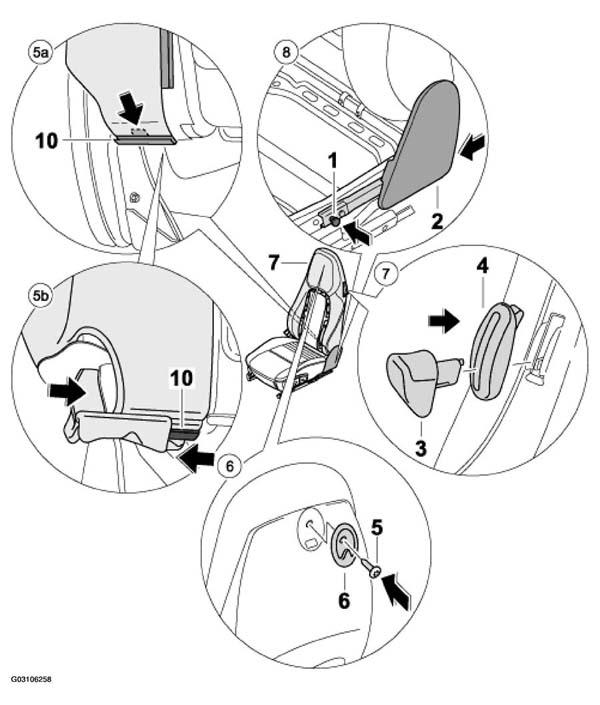

Fig 2: Installing Covering For Front Backrest Frame (2 Of 2)
G03106258Courtesy of PORSCHE OF NORTH AMERICA, INC.
INSTALLING PROCEDURE FOR COVERING FOR FRONT BACKREST FRAME (2 OF 3)

No. Procedure Instructions
5a Closing side bolster closure, new status Engage the side bolster closure -10-  . See Fig 2 .
5b Closing side bolster closure, old status Join both side bolster closures -10-  . See Fig 2 .
6 Installing clothes hook Position the clothes hook -6-5-  . See Fig 2 .
7 Installing release lever Inset the collar -4-3-  . See Fig 2 .
8 Installing backrest cover Insert the side backrest cover -2-1-  . See Fig 2 .
  Installing the backrest centre strip See INSTALLING THE BACKREST CENTRE STRIP  .
CAUTION:
  • Danger of material damage if excessive heat is applied!
  • If creases form, only short partial warming with the hot-air gun is permissible. The hot-air temperature of approx. 50 degrees Celsius (122 Fahrenheit) must always be observed.
INSTALLING PROCEDURE FOR COVERING FOR FRONT BACKREST FRAME (3 OF 3)

No. Procedure Instructions
  Remedying creases in the backrest cover If creases form in the areas of the backrest cover, heat them partially with the hot-air gun.
