Installing electric motor for backrest adjustment
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
INSTALLING PROCEDURE OF ELECTRIC MOTOR FOR BACKREST ADJUSTMENT
| No. | Procedure | Instructions |
|---|---|---|

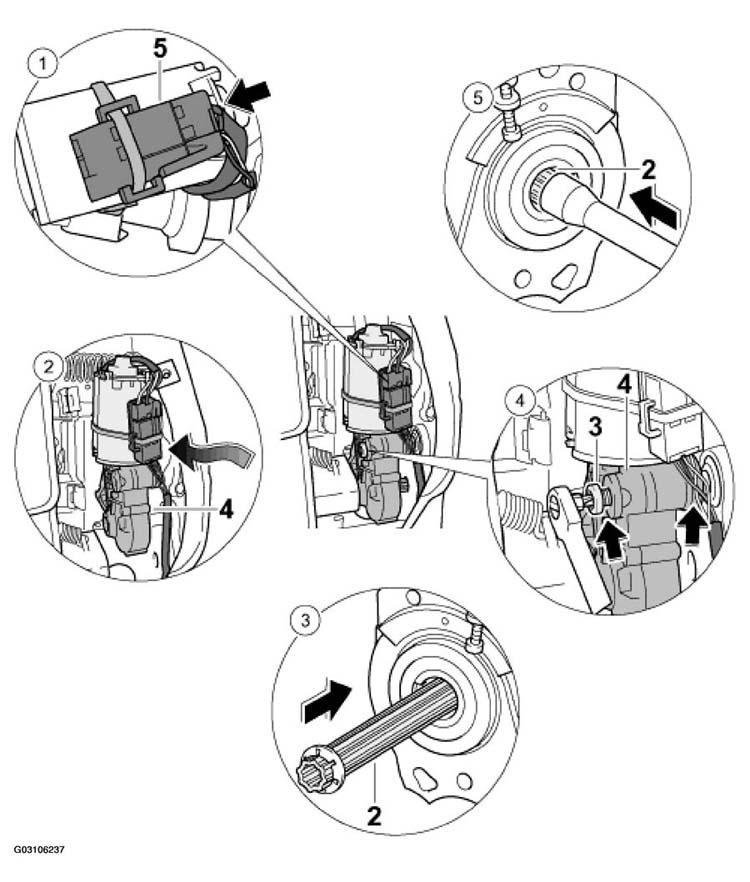

| 1 | Electrical plug connection -5- . See Fig 1 . | Push plug -5- . See Fig 1 . |
| 2 | Backrest motor -4- . See Fig 1 . | Insert backrest motor -4-direction of arrow- . See Fig 1 . |
| 3 | Input shaft -2- . See Fig 1 . | Insert input shaft from the right side as far as it will go -arrow- . See Fig 1 . |
| 4 | Fastening backrest motor -4- . See Fig 1 . | Screw in fastening screw -3-arrow-3- . See Fig 1 . |
| 5 | Installing clamping washer | Counter input shaft -2-2- . See Fig 1 . |
| Installing covering for backrest | See INSTALLING COVERING FOR THE FRONT BACKREST FRAME | |
| Installing front seat | See REMOVING AND INSTALLING FRONT SEAT . |
