Installing Loudspeaker, Airbag And Door Film
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

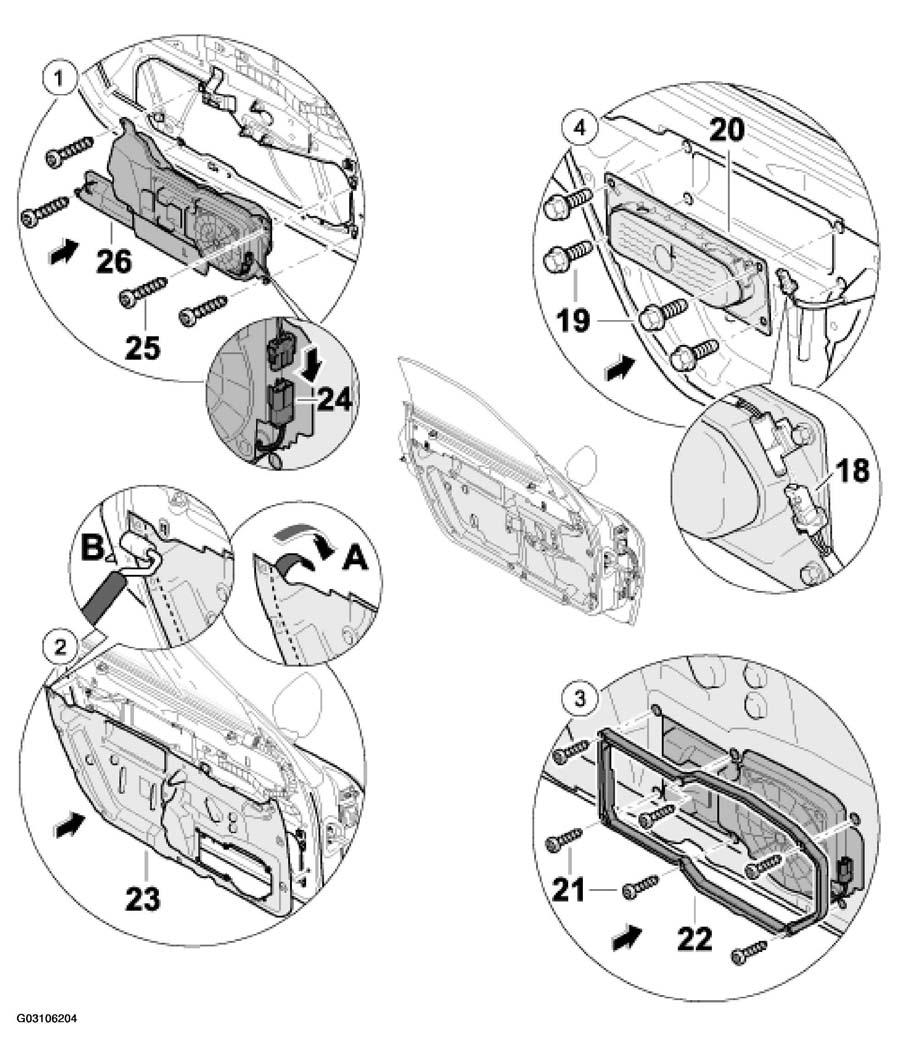

INSTALLING PROCEDURE FOR DOOR TRIM PANEL
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 1(1) | Installing sound box Sticking sliding strip onto the front and rear of the inner door panel |
Position sound box -26-25-24- (1) See FITTING SLIDING STRIP ON THE INNER DOOR PANEL . |
||
| 2(1) | Affixing door sealing film. | Peel off protective film -A-B-23- (1) | ||
| 3(1) | Installing frame | Position the frame -19-18- (1) | ||
| 4(1) | Installing side airbag | Position side airbag -17-16-10 N.m (7.5 ft.lb)-16- (1) | ||
|
||||
