Disassembling the rearview mirror
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
DISASSEMBLING REARVIEW MIRROR INSTRUCTIONS (STEPS 1-4)
| No. | Procedure | Instructions |
|---|---|---|
| Removing rearview mirror | See REMOVING THE REARVIEW MIRROR | |

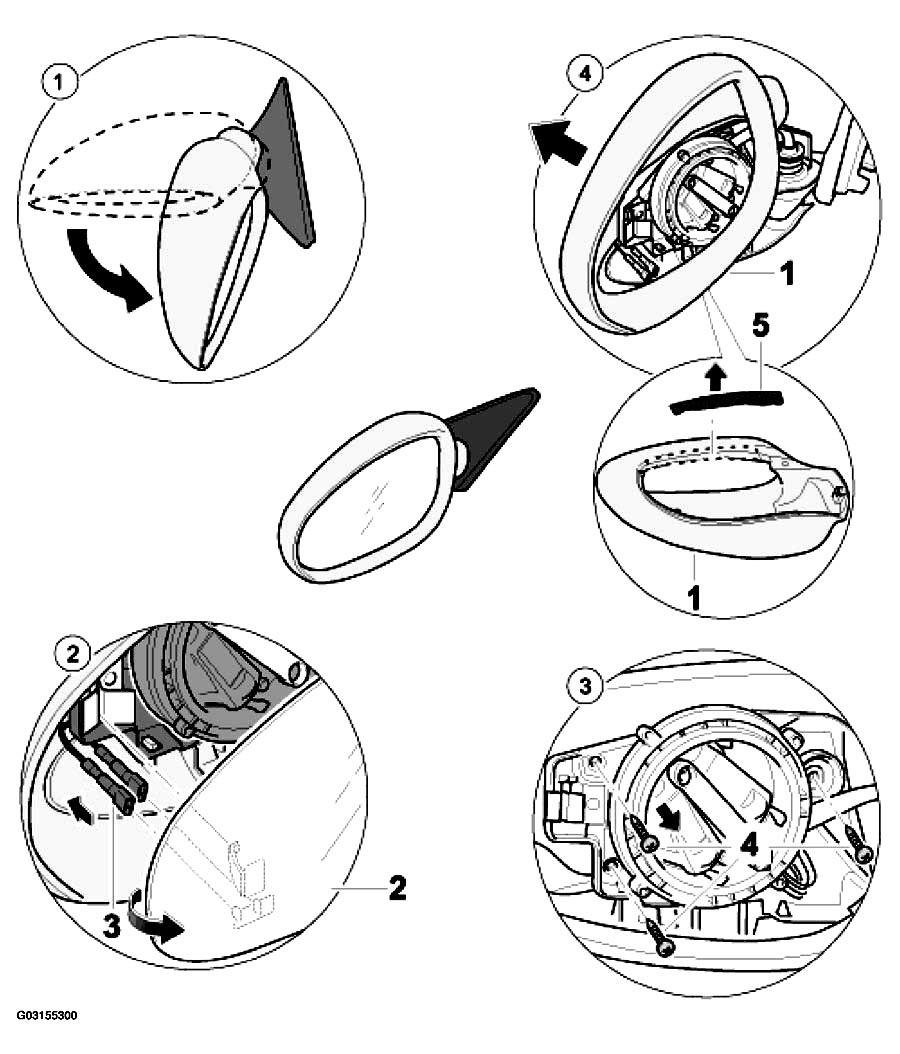

| 1 | Folding in the rearview mirror | Fold in the rearview mirror in -direction of arrow- . See Fig 1 . |
| 2 | Removing rearview mirror glass | Carefully pull the rearview mirror glass -2-3- . See Fig 1 . |
| 3 | Detaching rearview mirror housing | Unscrew fastening screws -4-1- . See Fig 1 . |
| 4 | Removing rearview mirror housing | Remove rearview mirror housing -1-direction of arrow- . See Fig 1 . |
DISASSEMBLING REARVIEW MIRROR INSTRUCTIONS (STEPS 5-7)
| No. | Procedure | Instructions |
|---|---|---|

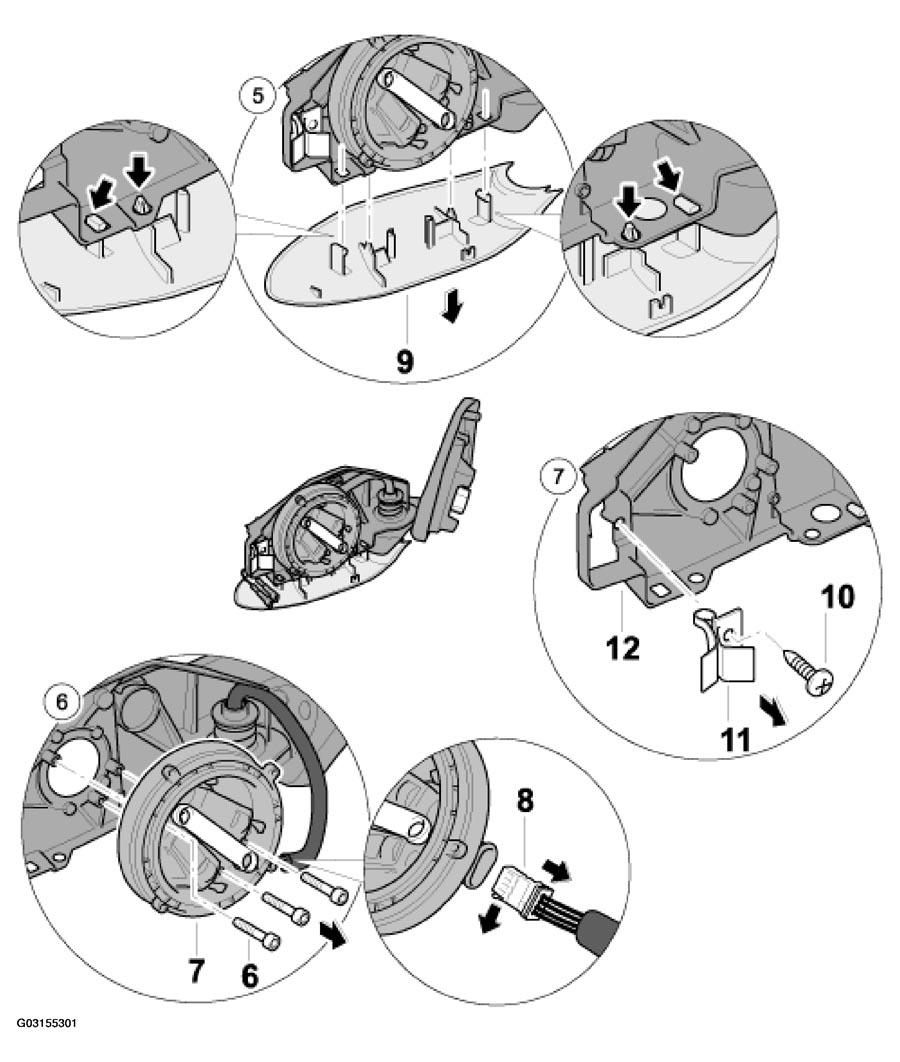

| 5 | Removing cover | Press lugs -arrows-9- . See Fig 2 . |
| 6 | Removing positioning motor | Unscrew fastening screw -6-7-8- . See Fig 2 . |
| 7 | Removing metal clip | Unscrew fastening screw -10-11-12- . See Fig 2 . |
