Removing the rearview mirror
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
REMOVING REARVIEW MIRROR INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|

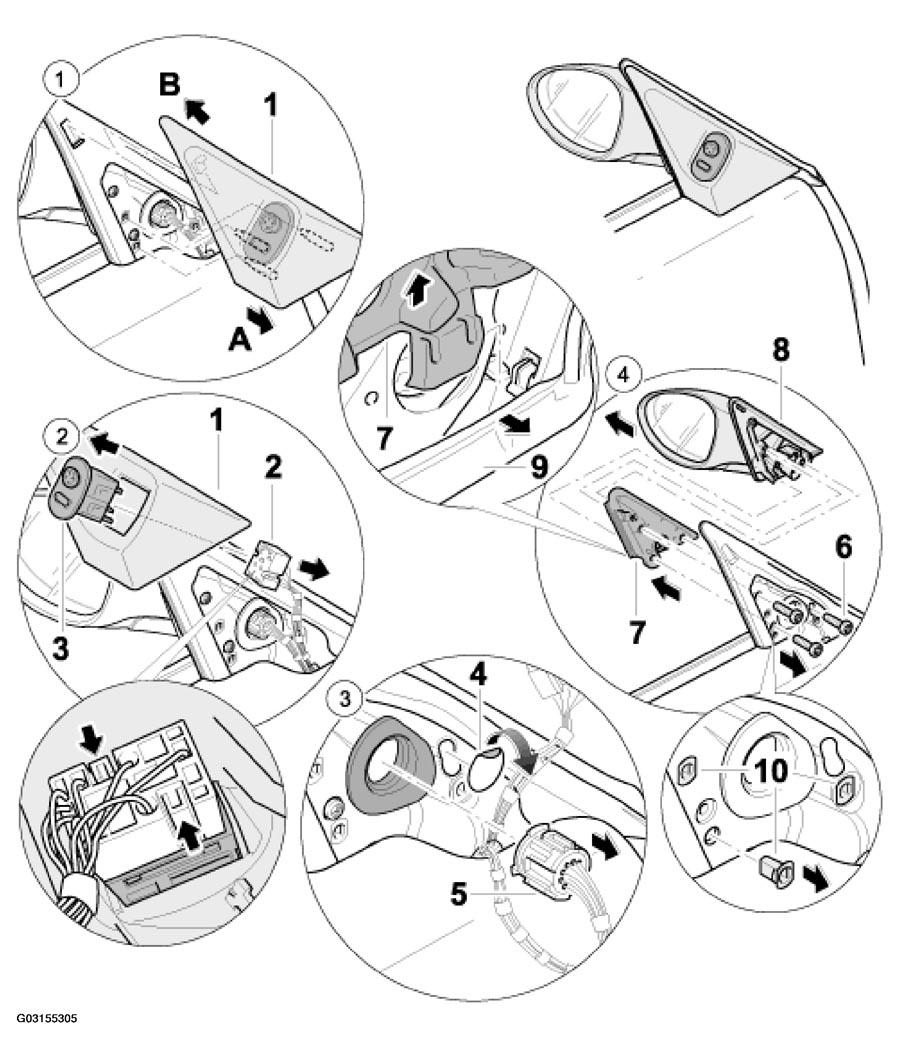

| 1 | Remove cover -1- . See Fig 1 . | Disengage cover -1-Arrow A-Arrow B- . See Fig 1 . |
| 2 | Disconnect the plug connection of the adjustment button -2- . See Fig 1 . | Press the safety catches -Arrows-2- . See Fig 1 . |
| 3 | Disconnect the plug connection of the mirror housing -5- . See Fig 1 . | Disconnect the plug connection of the mirror housing -5- . See Fig 1 . |
| 4 | Remove mirror housing -8- . See Fig 1 . | Pull off seal -4-6-8-9-7-10- . See Fig 1 . |
