Assembling rearview mirror

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

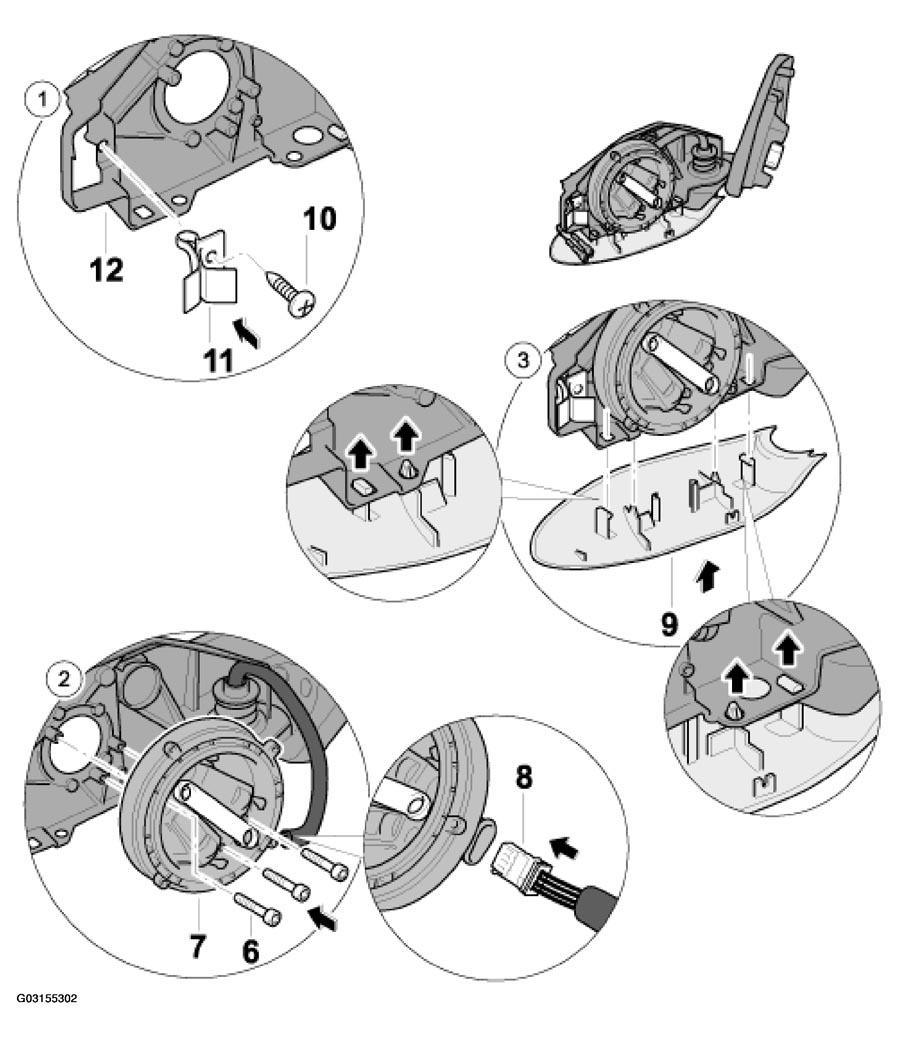

Fig 1: Assembling Rearview Mirror Components (Steps 1-3)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ASSEMBLING REARVIEW MIRROR INSTRUCTIONS (STEPS 1-3)

No.	Procedure	Instructions
1	Installing metal clips	Position metal clip -11-12-10- . See Fig 1 .
2	Installing positioning motor	Plug in electrical plug connection -8-7-6- . See Fig 1 .
3	Installing cover	Clip the cover -9-arrows- . See Fig 1 .

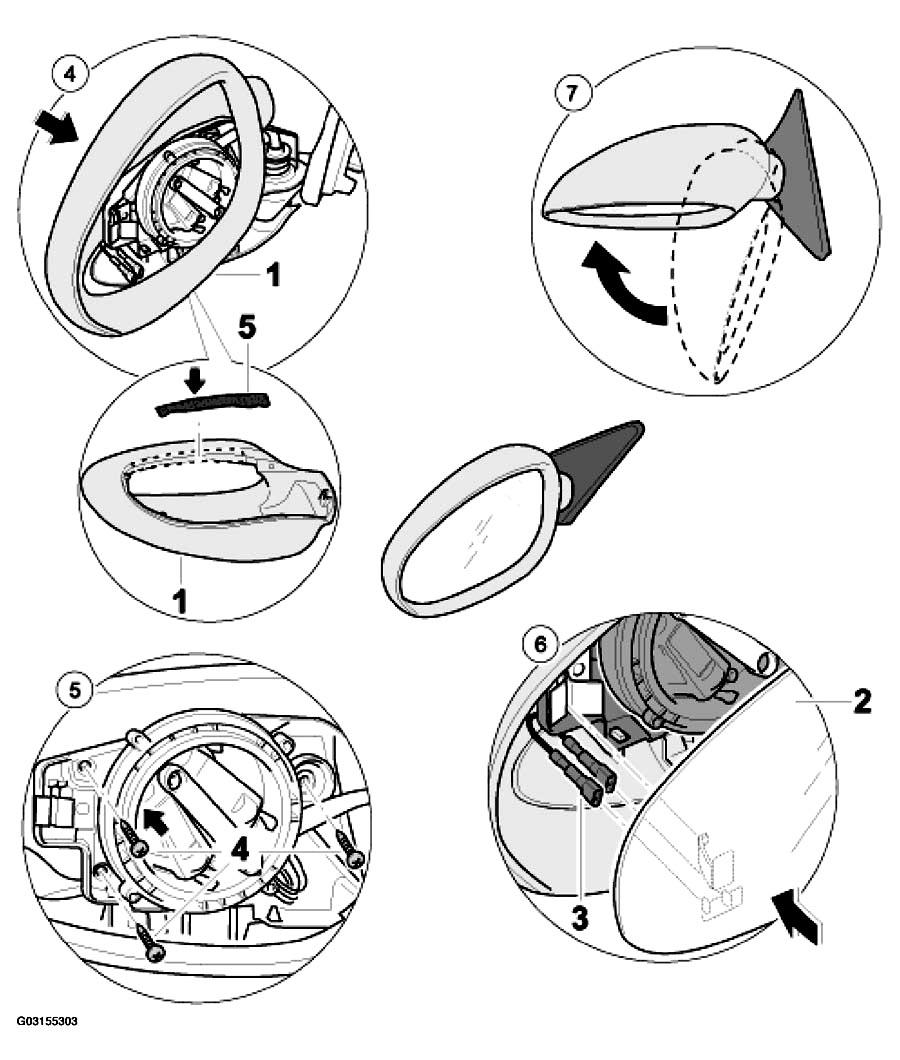

Fig 2: Assembling Rearview Mirror Components (Steps 4-7)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ASSEMBLING REARVIEW MIRROR INSTRUCTIONS (STEPS 4-7)

No.	Procedure	Instructions
4	Connecting rearview mirror housing	Stick the foam strips in die recess of the rearview mirror shell. -1-the direction of the arrow- . See Fig 2 .
	Position the rearview mirror housing -1-the direction of the arrow- . See Fig 2 .
5	Fastening rearview mirror housing	Secure the rearview mirror housing -1-4- . See Fig 2 .
6	Installing rearview mirror glass	Plug in electrical plug connection -3-2- . See Fig 2 .
7	Unfolding rearview mirror	Unfold the rearview mirror in -direction of arrow- . See Fig 2 .
	Installing rearview mirror	See INSTALLING THE REARVIEW MIRROR
