Installing the rearview mirror
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
INSTALLING REARVIEW MIRROR INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|

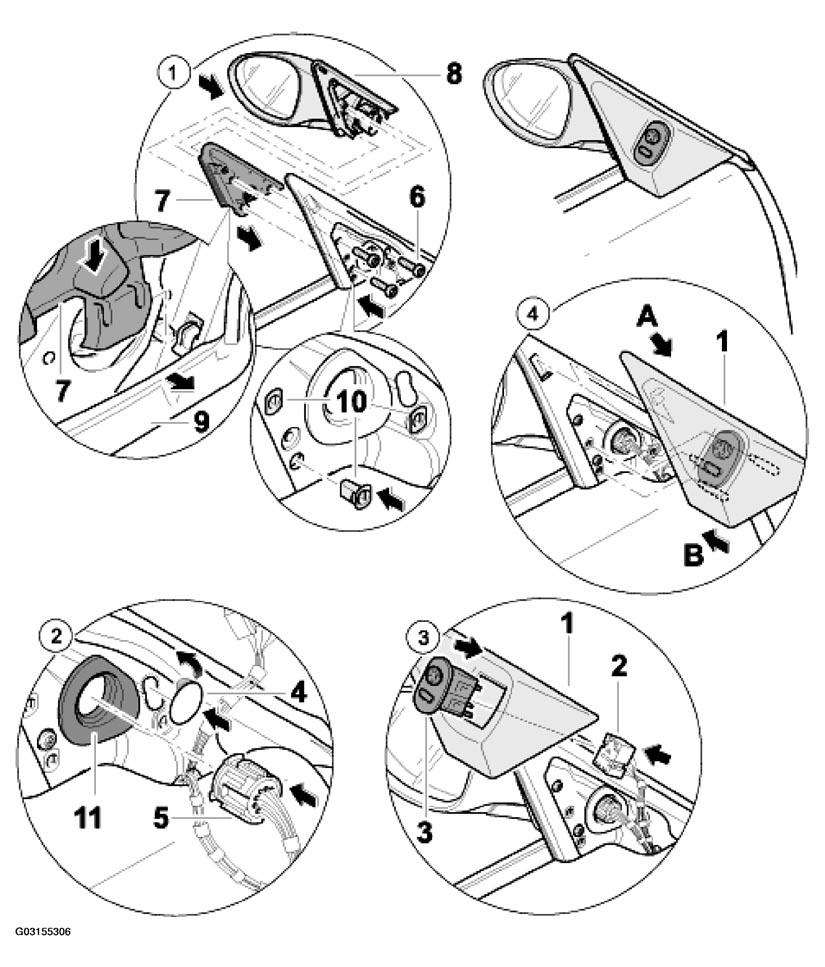

| 1 | Install mirror housing -7- . See Fig 1 . | Press the sealing strip -9-7-7-8-6- . See Fig 1 . |
| 2 | Connect the plug connection of the mirror housing -5- . See Fig 1 . | Stick on seal -4-11-5-11- . See Fig 1 . |
| 3 | Connect the plug connection of the adjustment button -2- . See Fig 1 . | Connect plug connection -2- . See Fig 1 . |
| 4 | Install cover-1- . See Fig 1 . | Hook cover -1-Arrow A-Arrow B- . See Fig 1 . |
| Check for mirror heating. | See CHECKING FUNCTION OF HEATING FOR MIRROR GLASS |
