Removing rear bumper
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
REMOVING REAR BUMPER PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|
| Removing rear spoiler | See REMOVING REAR SPOILER | |

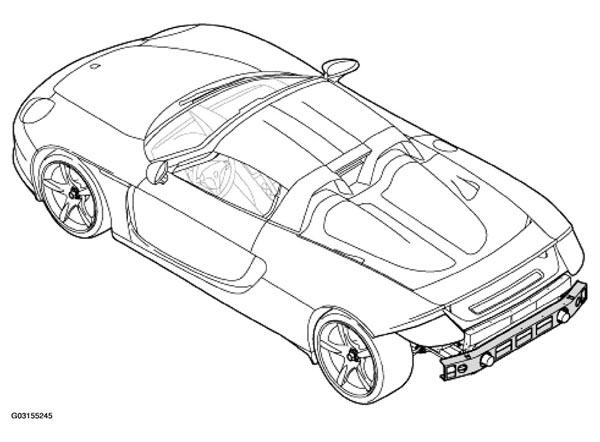

| 1 | Removing anti-chafing film -1- . See Fig 1 . | Pull off anti-chafing film -1-2- . See Fig 1 . |
| 2 | Removing holder -4- . See Fig 1 . | Unscrew collar nuts -3-4-5- . See Fig 1 . |
| 3 | Removing and disassembling rear bumper -13--(13A)- . See Fig 1 . | Unscrew sheetmetal screws -6 or 6A--13, 13A--14- . See Fig 1 . |
| 4 | Removing bottom exhaust system heat shield -14- . See Fig 1 . | If necessary, disassemble rear supports -8-7- . See Fig 1 . |
| 5 | Removing impact pipe -11-11 A- . See Fig 1 . | Unscrew fastening screws -10, 10A--11,11A--12, 12A- . See Fig 1 . |
