Removing rear spoiler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

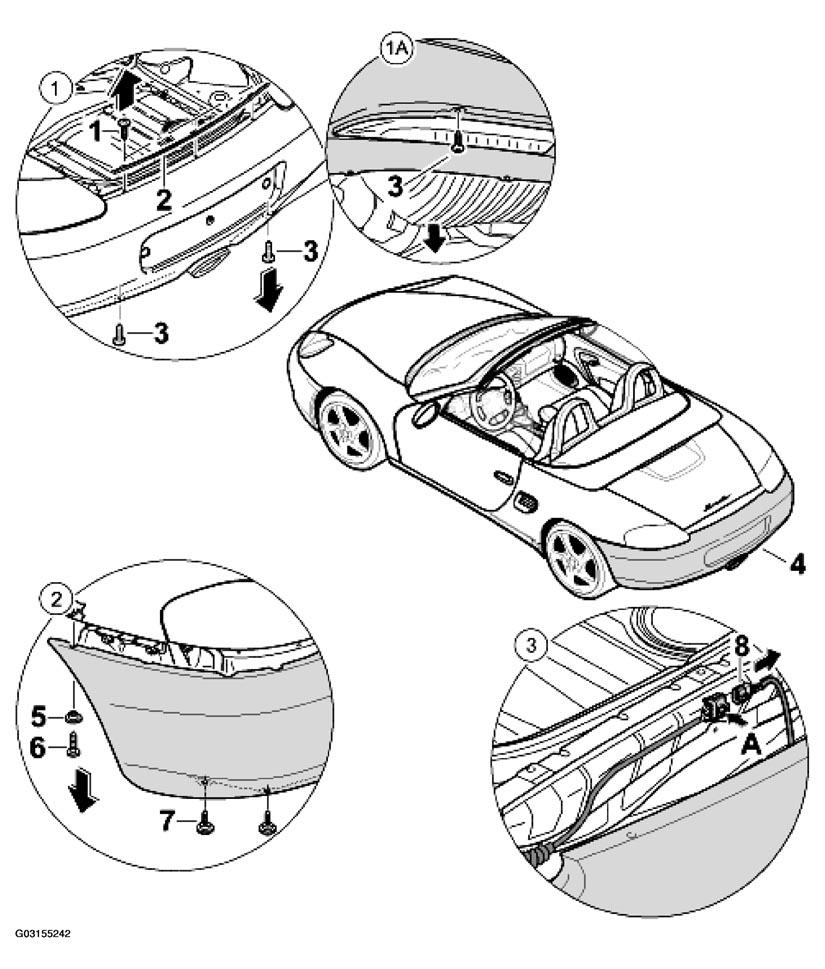

Fig 1: Removing Rear Spoiler Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REMOVING REAR SPOILER PROCEDURE

No.	Procedure	Instructions
	Removing upper and lower parts of rear spoiler	See REMOVING AND INSTALLING REAR SPOILER
1	Removing cover moulding -2-1- . See Fig 1 .	Unscrew fastening screws -1 and 3-2- . See Fig 1 .
1A	As of model year 2003 -3- . See Fig 1 .	As of model year 2003 -3- . See Fig 1 .
	Unscrew fastening screws -3- . See Fig 1 .	Unscrew fastening screws -3- . See Fig 1 .
2	Unscrewing sheetmetal screws -6, 7- . See Fig 1 .	Unscrew sheetmetal screws -6, 7-5- . See Fig 1 .
3	Disconnecting plug connection -8- . See Fig 1 . Remove rear spoiler	Press lug -Arrow A--8- . See Fig 1 .
