Additional assembly instructions for installation of the bumper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Adjustment dimensions of the bumper

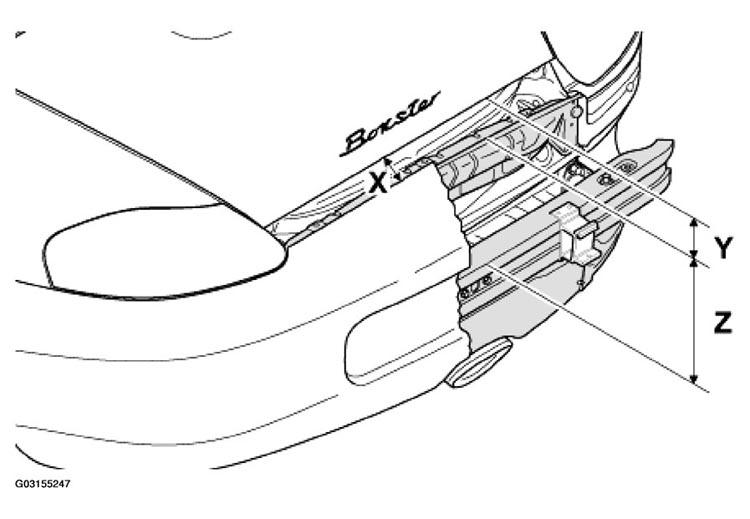

Fig 1: Rear Bumper Adjustment Dimension Measuring Points

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

In order to reduce adjustment work to a minimum when assembling the rear spoiler, the rear bumper or holder must be aligned with the lower edge of the rear lid according to the dimensions shown above.
However, the precondition for precise positioning of the components is that the rear lid is optimally adjusted and correctly locked in the lock in accordance with the joining plan, before the rear bumper or centre retaining strip are assembled.

Adjust the rear lid according to the joining plan. Refer to GAP DIMENSIONS, BODY
Set adjustment dimension of the top edge of the holder to the lower edge of the rear lid -Y = 54 mm- in Fig 1
Set adjustment dimension of the top edge of the bumper to the top edge of the holder -Y = 190 mm- in Fig 1
For vehicles up to model year 2002 only, set adjustment dimension of the lower edge of the rear lid to the top edge of the spoiler -X = 39 mm- in Fig 1 .
The measurements can be changed by undoing or moving the impact pipes, impact absorbers (USA version) or holders.
