Removing front spoiler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

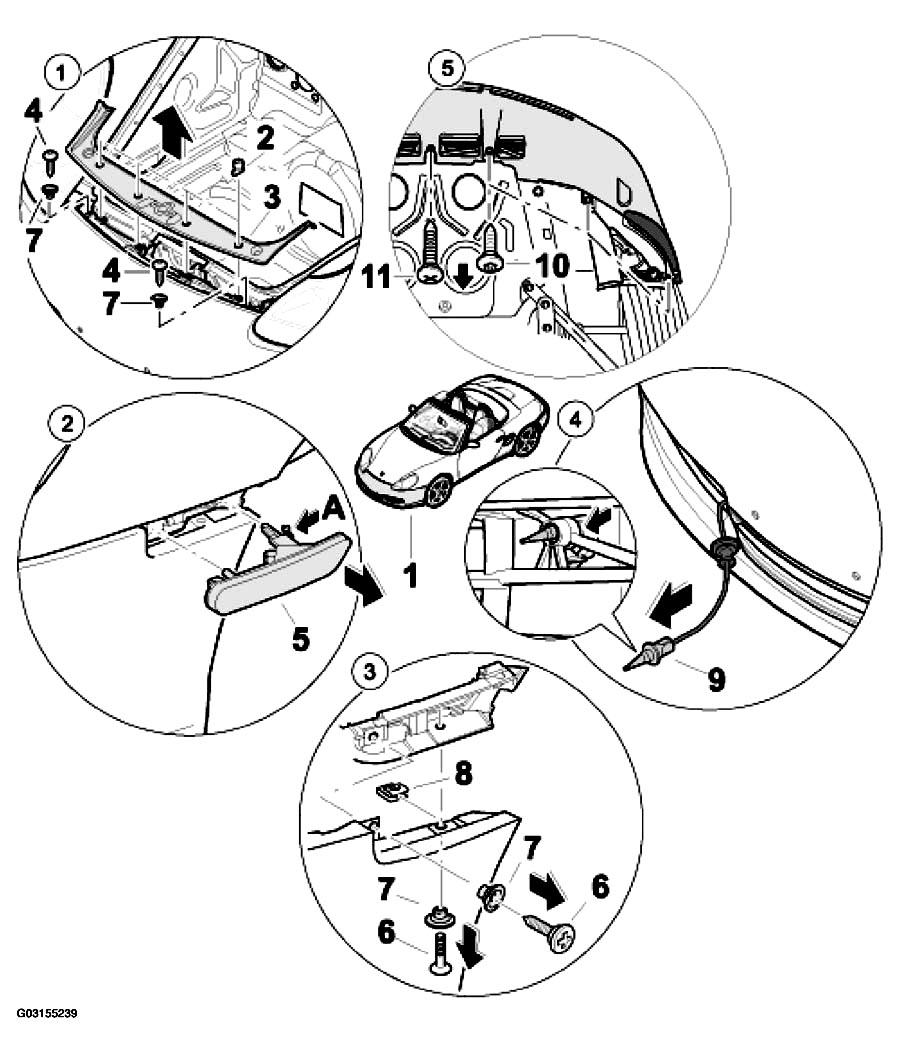

Fig 1: Removing Front Spoiler Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

The wheel housing liner must be partially detached before the front spoiler can be removed! Refer to REMOVING AND INSTALLING WHEEL HOUSING LINER .

REMOVING FRONT SPOILER PROCEDURE

No.	Procedure	Instructions
1	Removing cover	Turn hexagon cap nut -2-4-1- . See Fig 1 .
2	Removing direction indicator light	Press in spring clip of direction indicator light -arrow A-5- . See Fig 1 .
3	Undoing front spoiler at the sides	On the front spoiler, undo the sheetmetal screws -6-7- . See Fig 1 .
4	Pressing out temperature sensor	Press temperature sensor -9- . See Fig 1 .
5	Undoing front spoiler on the underbody	Undo fastening screws -10-1- . See Fig 1 .
