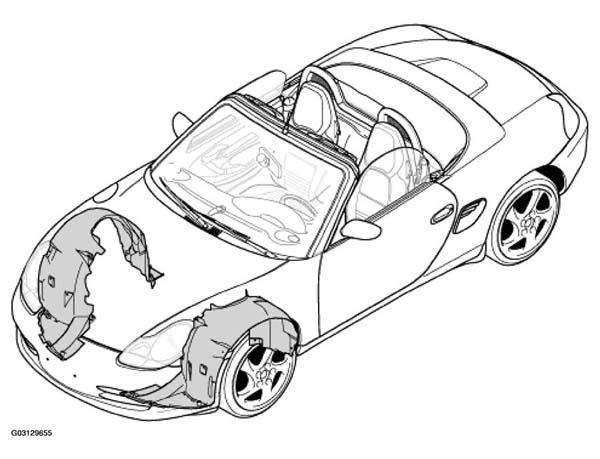

Removing and installing wheel housing liner
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
The specification -Quantity- refers to a wheel housing liner.

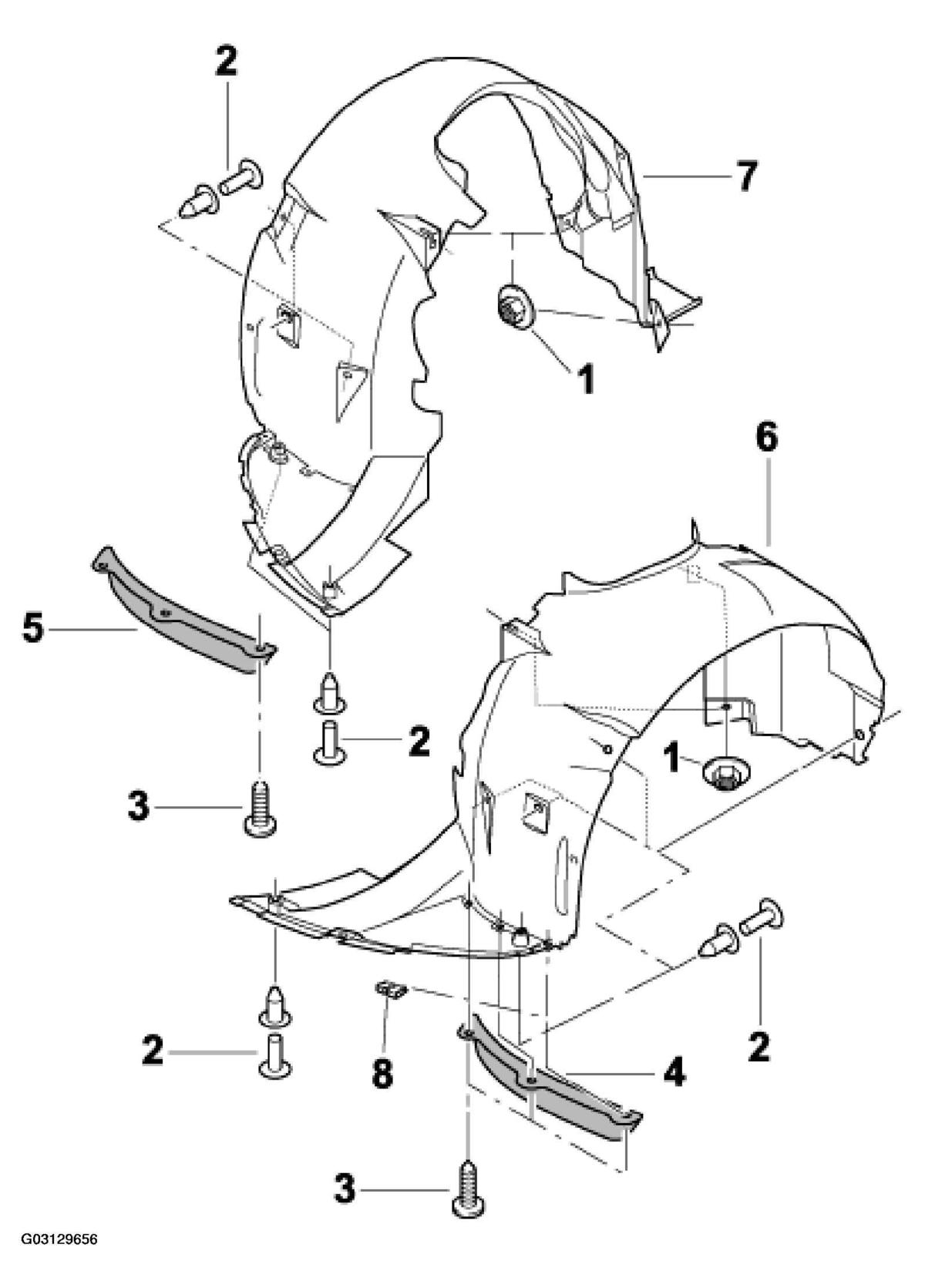

WHEEL HOUSING LINER REFERENCE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Plastic nut T5 | 3 | Check, if necessary, replace. | |
| 2 | Plastic body-bound rivet ea. 6.3 | 6 | Check, if necessary, replace. | |
| 3 | Fastening screws | 4 | ||
| 4 | Left plastic lip | 1 | ||
| 5 | Right plastic lip | 1 | ||
| 6 | Left wheel housing liner | 1 | ||
| 7 | Right wheel housing liner | 1 | ||
| 8 | Sheetmetal nut | 4 | Adjust to center of hole. |
