Test and adjusting values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
TEST AND ADJUSTING VALUES
| Designation | Dimension | Note | |
|---|---|---|---|

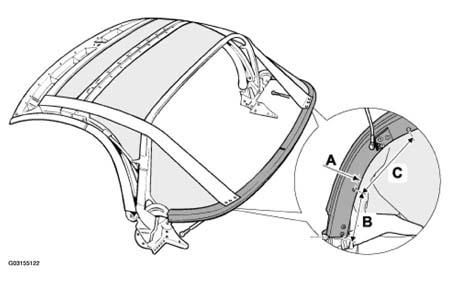

| Adjusting the roll-over bar with the convertible-top frame in the body | -A- . See Figure . | 799 +/- 1 mm | (Oblique dimension) from centre of sash guide mount to centre of convertible top pin housing. See ADJUSTING THE ROLL-OVER BAR . |
| -B- . See Figure . | 39 +/- 1 mm | From centre of threaded bore for sash guide mount to top edge of rear side section. | |
