Installing tension strap (convertible-top with flexible rear window)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Installing tension strap on the tension bow
Position tension strap -35- on tension bow -31- on the holes provided, rivet on the tension strap with the pop rivets -36- (parts scope component of convertible-top covering).

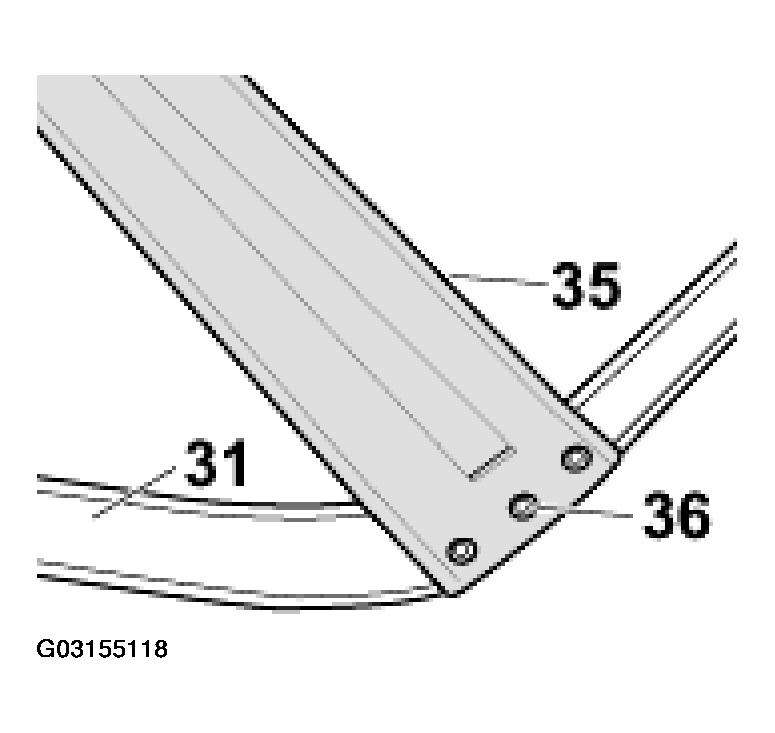

Fig 1: Installing Tension Strap On Tension Bow
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Installing tension strap on the main bow
Position the strap cover -37- using the holes provided on the tension strap -35- and press into the main bow -20-.

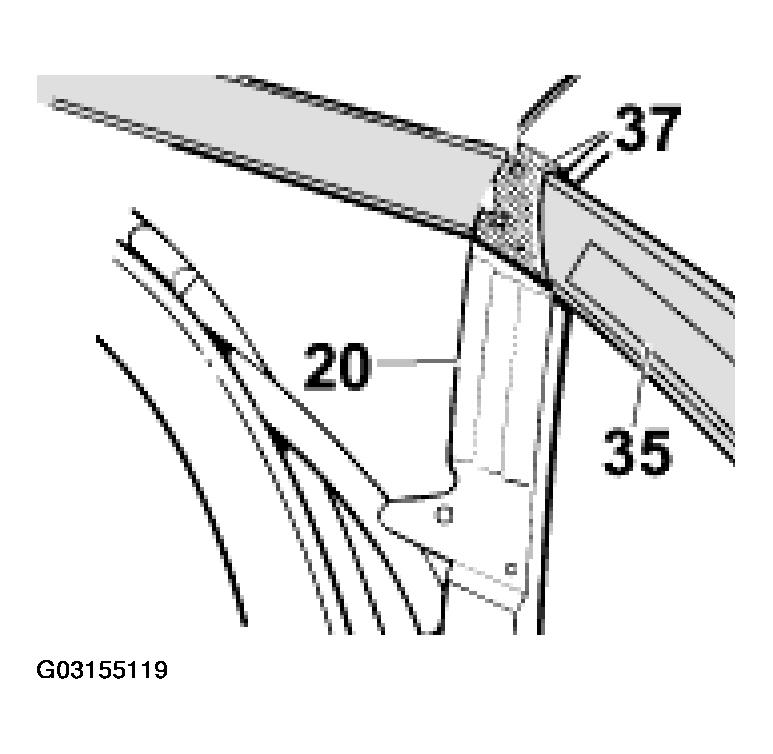

Fig 2: Installing Tension Strap On Main Bow

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fitting the tension strap on the roof frame (convertible-top frame locked)
Position the tension strap -35- on the roof frame at the rear -22- and fasten the tension strap -35- with the fastening screws -38- . See TIGHTENING TORQUES .

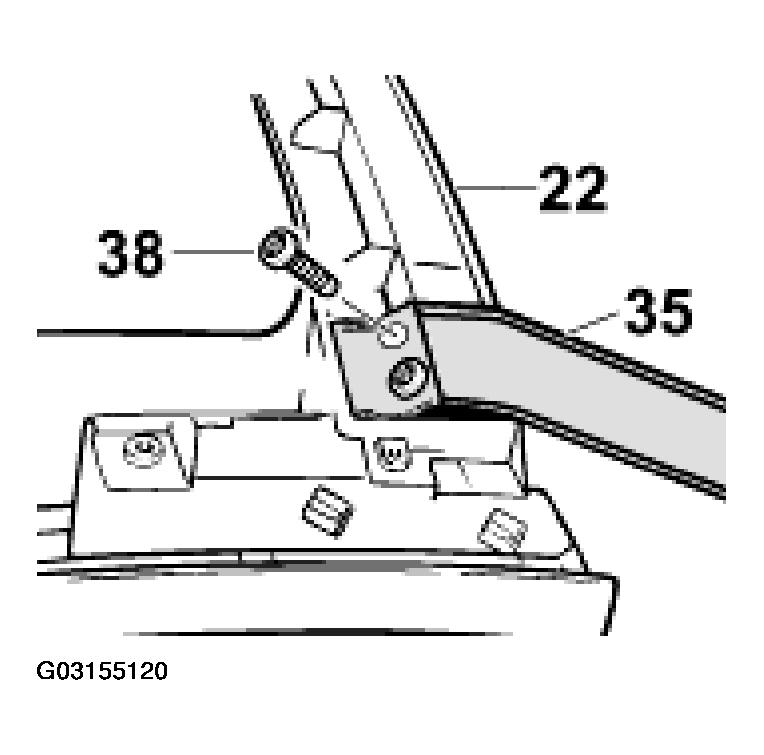

Fig 3: Fitting Tension Strap On Roof Frame

Courtesy of PORSCHE OF NORTH AMERICA, INC.
