Tightening torques
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
TIGHTENING TORQUES - CONVERTIBLE TOP FRAME
| Location | Illustration | Thread | Tightening torque |
|---|---|---|---|

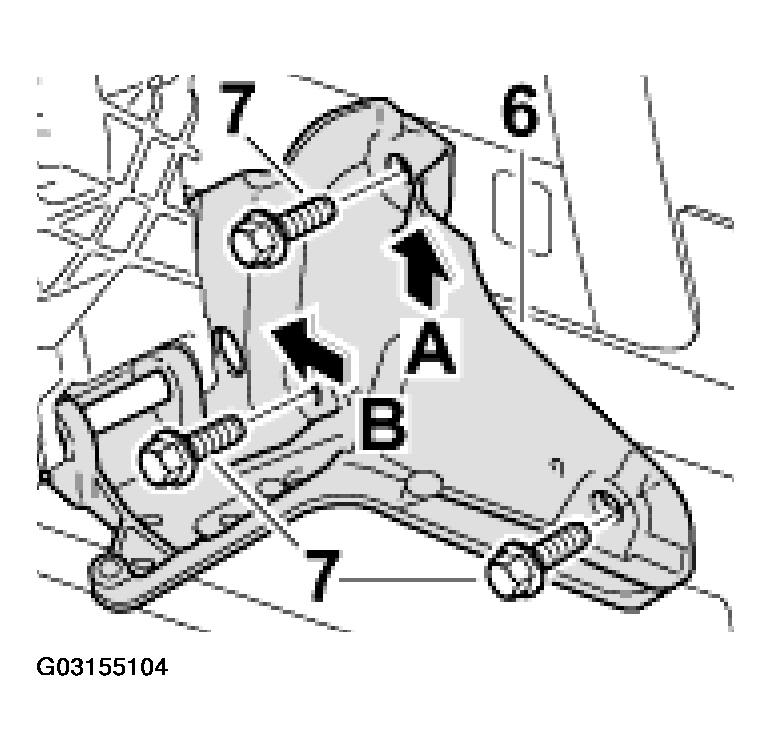

| Fastening screws of convertible-top support on roll-over bar | Procedure No. 4, item -7- . See Figure . | M8 | 23 Nm(17ftlb.) |

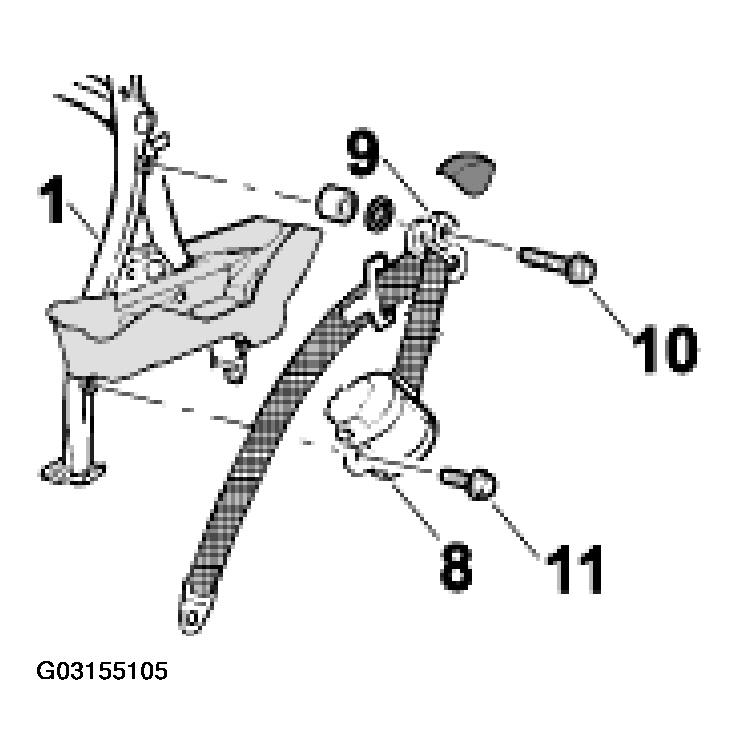

| Fastening screws of belt reel and deflector on roll-over bar | Procedure No. 5, Item -10, 11- . See Figure . | Inch thread | 50 Nm(37ftlb.) |

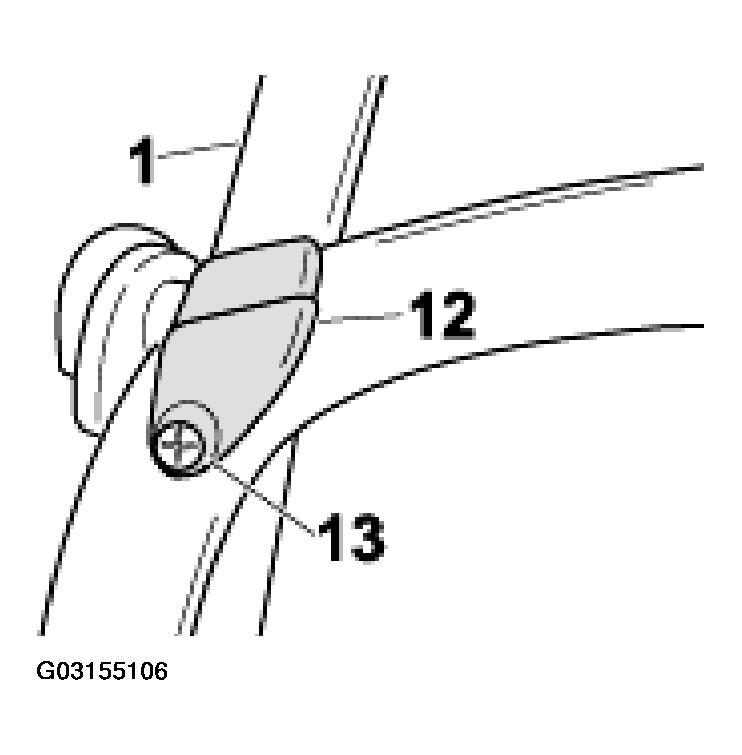

| Fastening screw of bracket on roll-over bar | Procedure No. 6, Item -13- . See Figure . | self-tapping | 2,5 Nm(2ftlb.) |

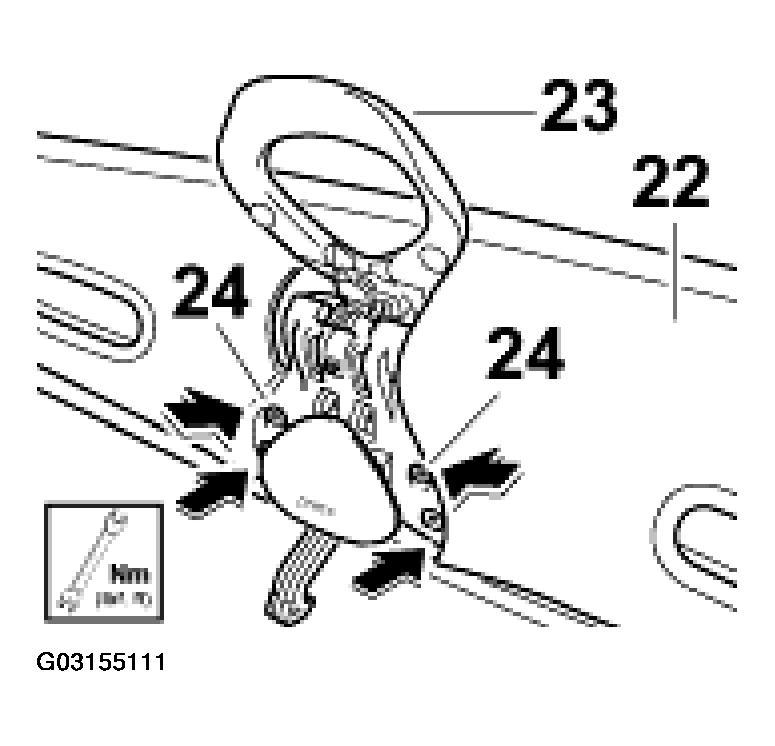

| Fastening screws of convertible-top lock on roof frame | Procedure No. 11, Item -24- . See Figure . | M6 | 7 Nm(5ftlb.) |

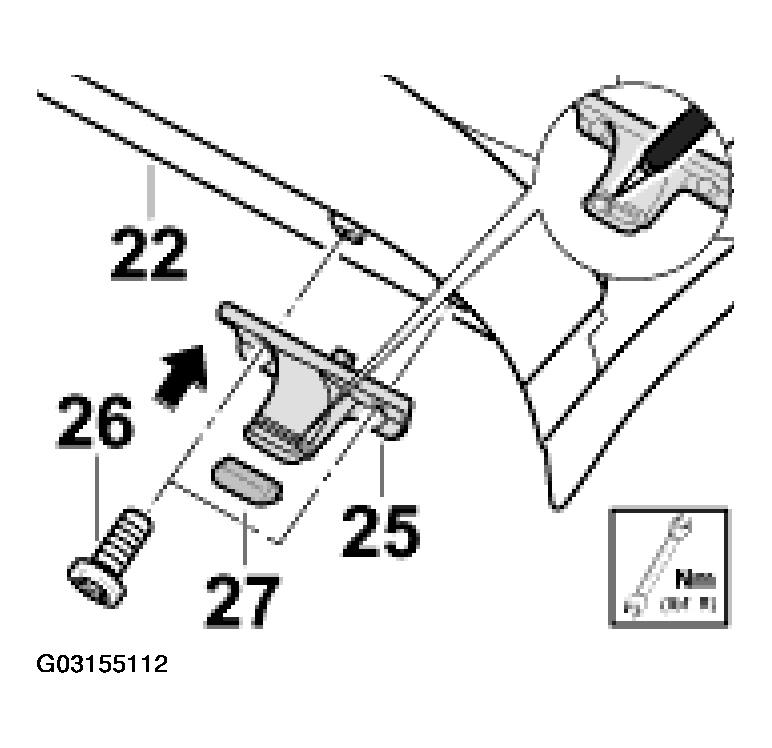

| Fastening screws of centring pin on roof frame | Procedure No. 12, Item -26- . See Figure . | self-tapping | 7 Nm(5ftlb.) |

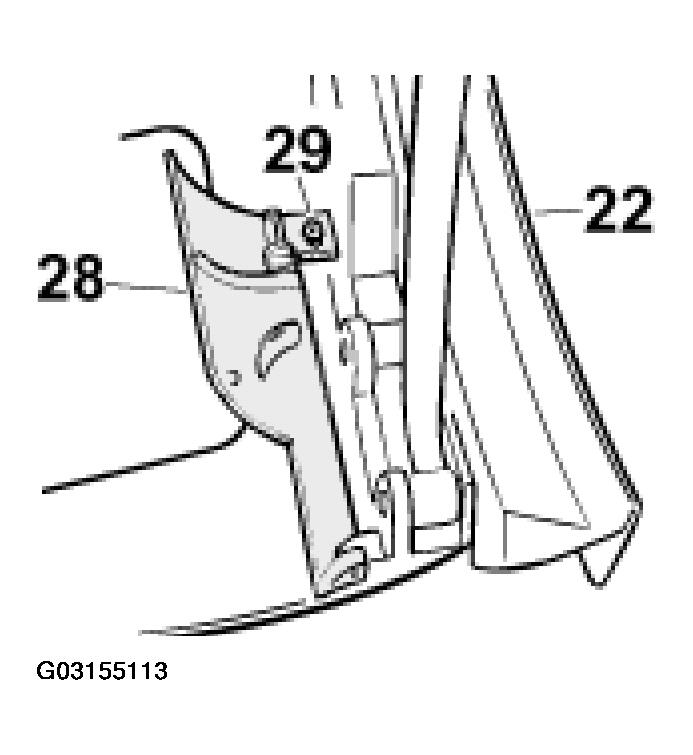

| Fastening screws of cover flap on roof frame | Procedure No. 13, Item -29- . See Figure . | Self-tapping | 2,8 Nm(2ftlb.) |

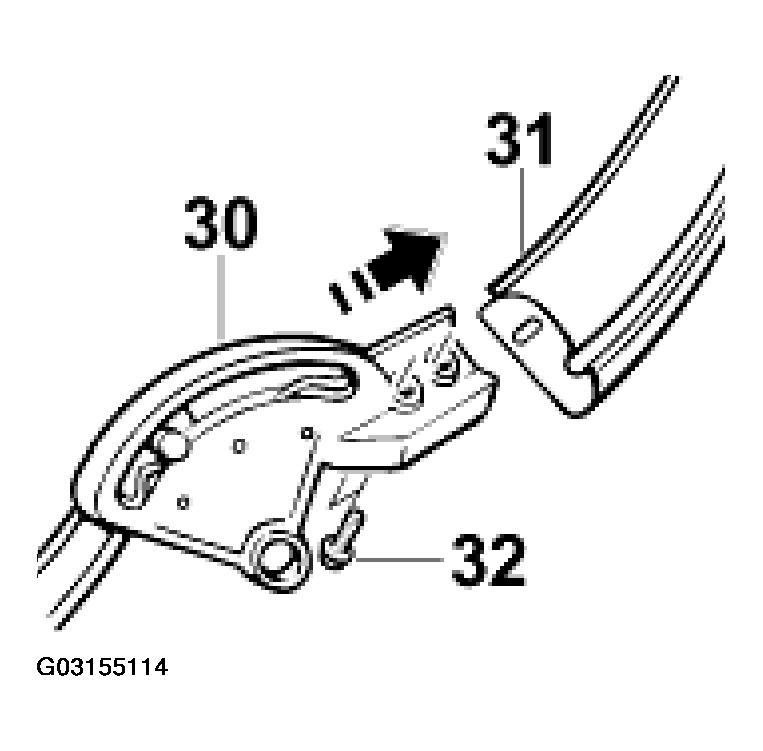

| Fastening screws of connection-piece on tension bow | Procedure No. 14, Item -32- . See Figure . | M6 | 10 Nm (7.5 ftlb.) |
| Fastening screws of tension strap on roof frame | Procedure No. 18, Item -38- | M5 | 2,8 Nm(2ftlb.) |
