Installing roof liner

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Pulling in tightening strips on main bow and on centre cover moulding
NOTE: Push convertible-top button in closed direction until the convertible-top compartment lid is in half-closed position.

Pull both tightening strips of the roof liner into the groove on the main bow and centre cover moulding by approx. 30 mm. Pull in both tightening strips simultaneously.

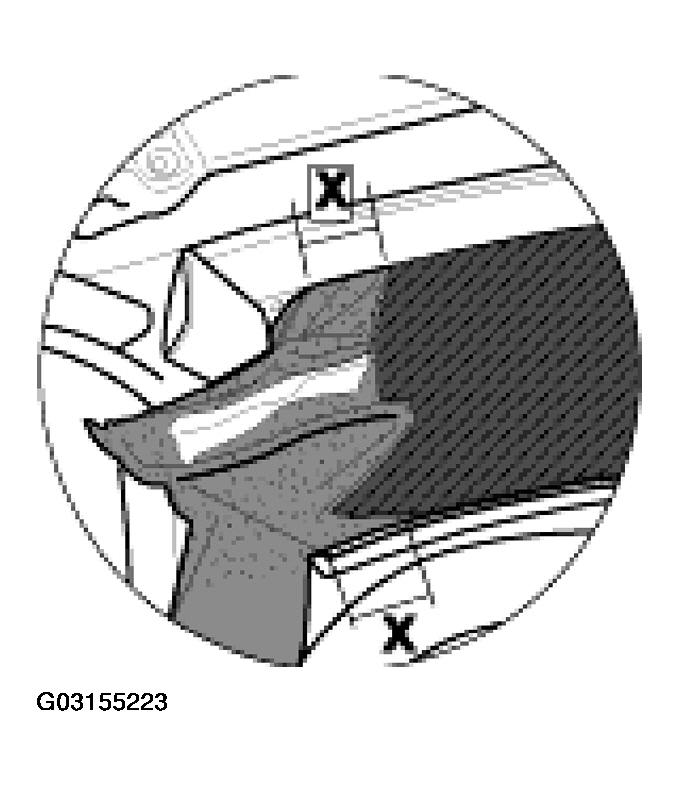

Fig 1: Pulling In Tightening Strips On Main Bow And On Centre Cover Moulding
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fitting roof frame connection at front
Press the roof liner connection (plastic U-rail) into the front of the roof frame.

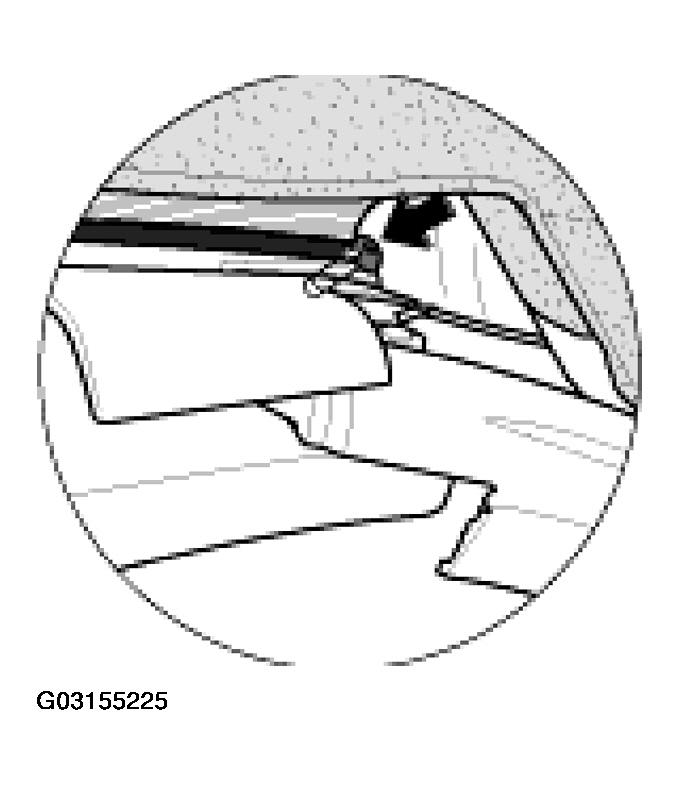

Fig 2: Fitting Roof Frame Connection At Front
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Pressing in the plastic clip at sides of roof frame
Press in the plastic clip at the sides of the roof

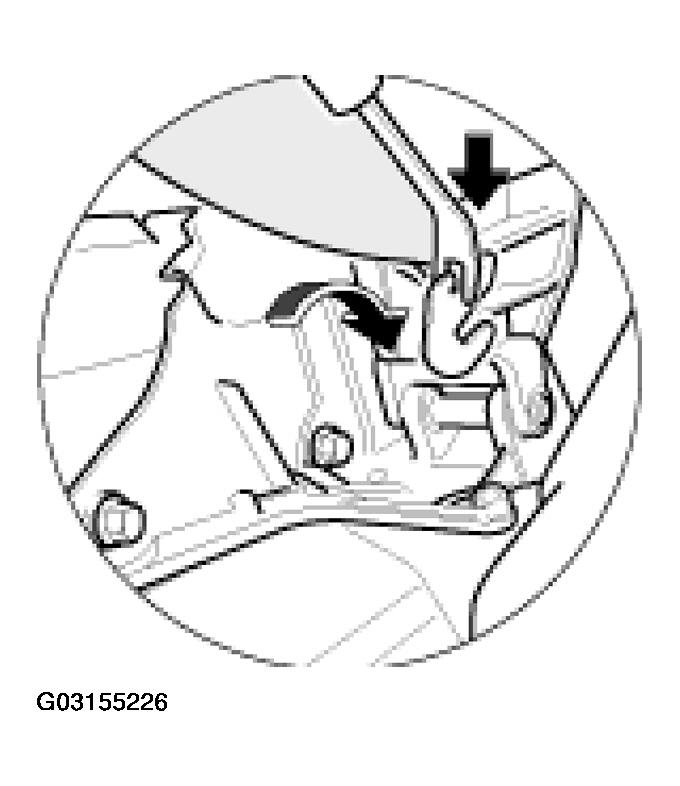

Fig 3: Pressing In Plastic Clip At Sides Of Roof Frame

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Engaging tension hook on main bow
Use the assembly tool to engage the tension hook into the pin of the convertible-top support/main bow.

Fig 4: Engaging Tension Hook On Main Bow
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Closing the Velcro fastening of the push bar.
Close the Velcro fastening of the push bar.

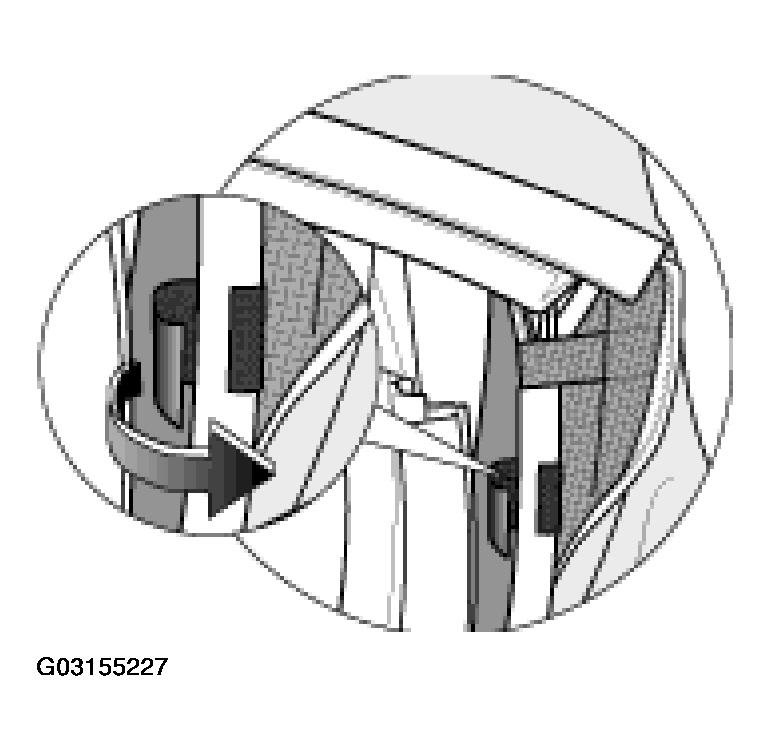

Fig 5: Closing Velcro Fastening Of Push Bar
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fitting roof liner connection on tension bow
NOTE:
- In vehicles with a roof liner produced before 12.04.2000, a new roof liner with a new cut must be installed when the convertible-top covering with a small rear window is replaced. Refer to Conversion measure on the tension bow for the roof liner in vehicles produced before 12.04.2000 .
Position the roof liner connection and cloth covering on the tension bow. Secure the connection by pressing in the plastic clips into the tension bow on the left and right.

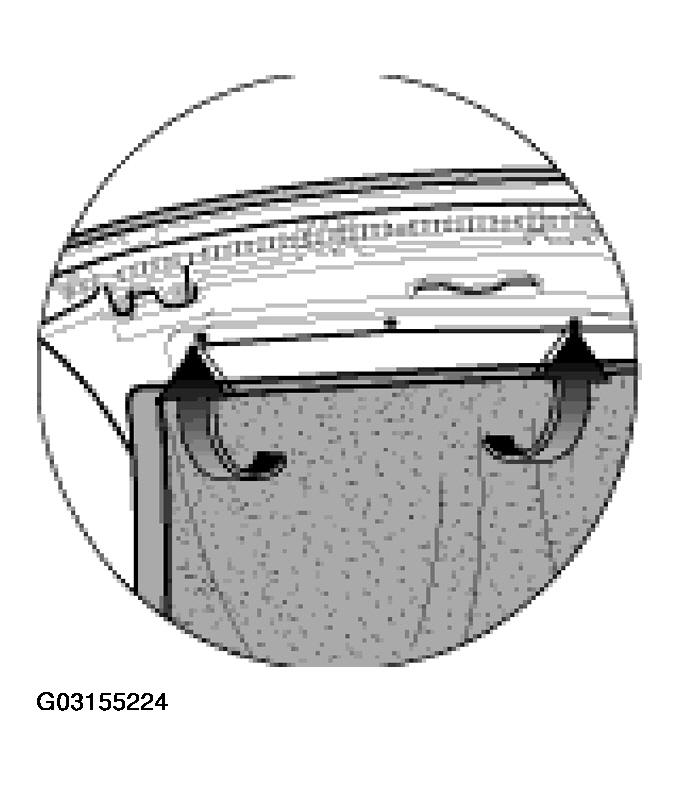

Fig 6: Fitting Roof Liner Connection On Tension Bow
Courtesy of PORSCHE OF NORTH AMERICA, INC.

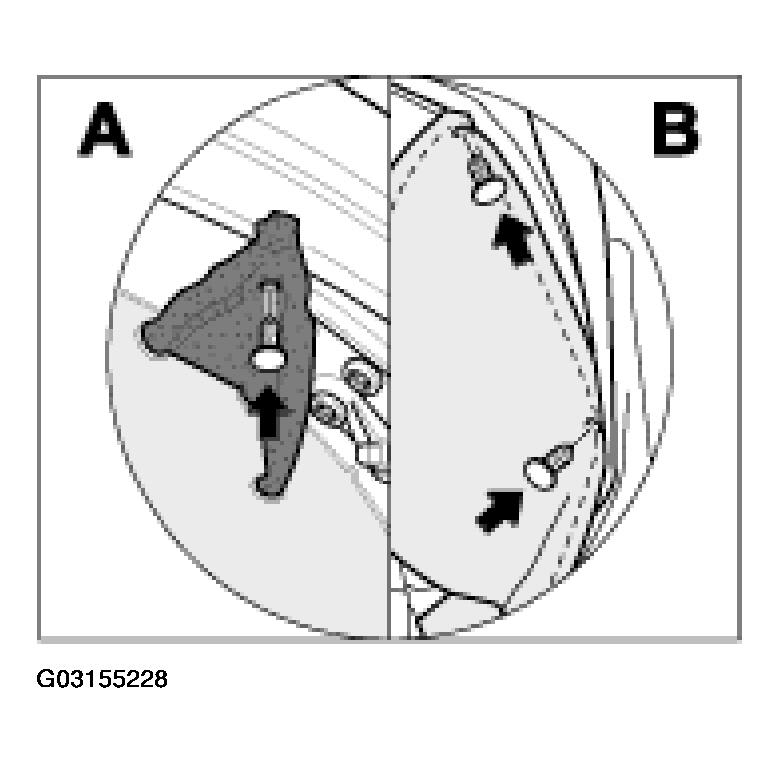

A = up to production date 12.04.2000

B = as from production date 13.04.2000
Ending service position
End service position and press the ball socket of the tension cable into the ball head of the adjusting element on the left and right. Engage the strip on the cloth covering in the rear wall of the convertible-top compartment lid.

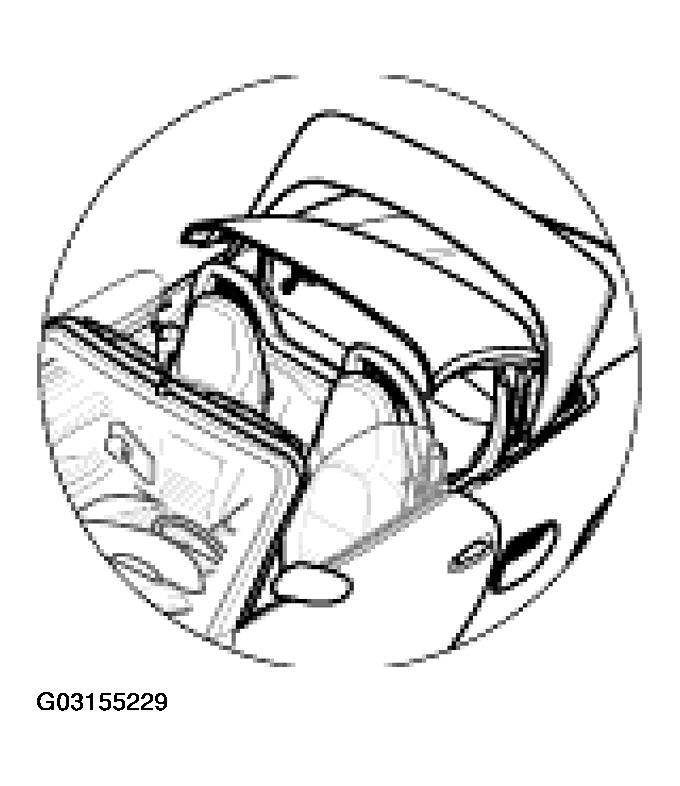

Fig 7: Identifying Service Position
